Mounting the operator – Controlled Products Systems Group OH200DC User Manual
Page 7

6

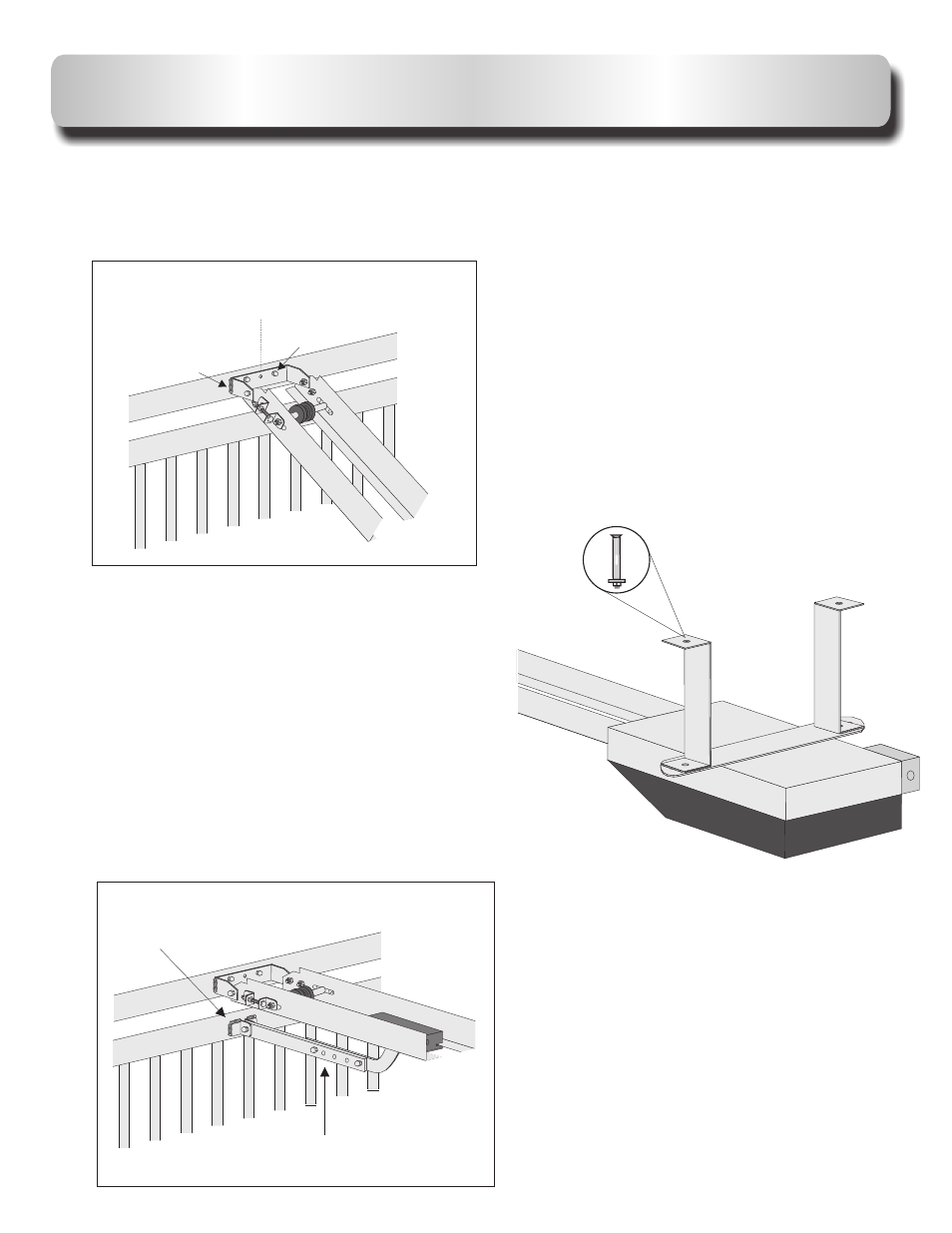

MOUNTING THE OPERATOR
Make sure end bracket is in the center of the
opening. Bolt or weld the end bracket to wall.
The operator bracket must be at least 2.5”
above the gate.
+
Level and align gate operator before mounting it
to the ceiling. Manufacture ceiling brackets to
weld or bolt the operator in place.
Weld gate bracket into place with overhead
arm connected to insure alignment.
+
Weld
Bolt
Center
Overhead arm
Gate Bracket
Center
Concrete Anchor
½”X 3 ½”
