Controlled Products Systems Group OH200DC - Manual (Page 10)

9
V
2
3
0
V
2
3
0
115V 115V
G
D
R
L
I
E
1
N
E
L
IN
2
All gate operators be properly grounded.
A proper ground in a gate operator installation minimizes or prevents damage from an electrical charge, such as a near
lightning strike or an electrical static discharge.
.
Use a single wire for the ground. DO NOT splice two wires for the ground. If the wire breaks or is cut, replace it with a
single length. NEVER use two wires for the ground.
Check with your City code for proper earth ground rod type and proper grounding procedures.
MUST
ELECTRICAL CONNECTION

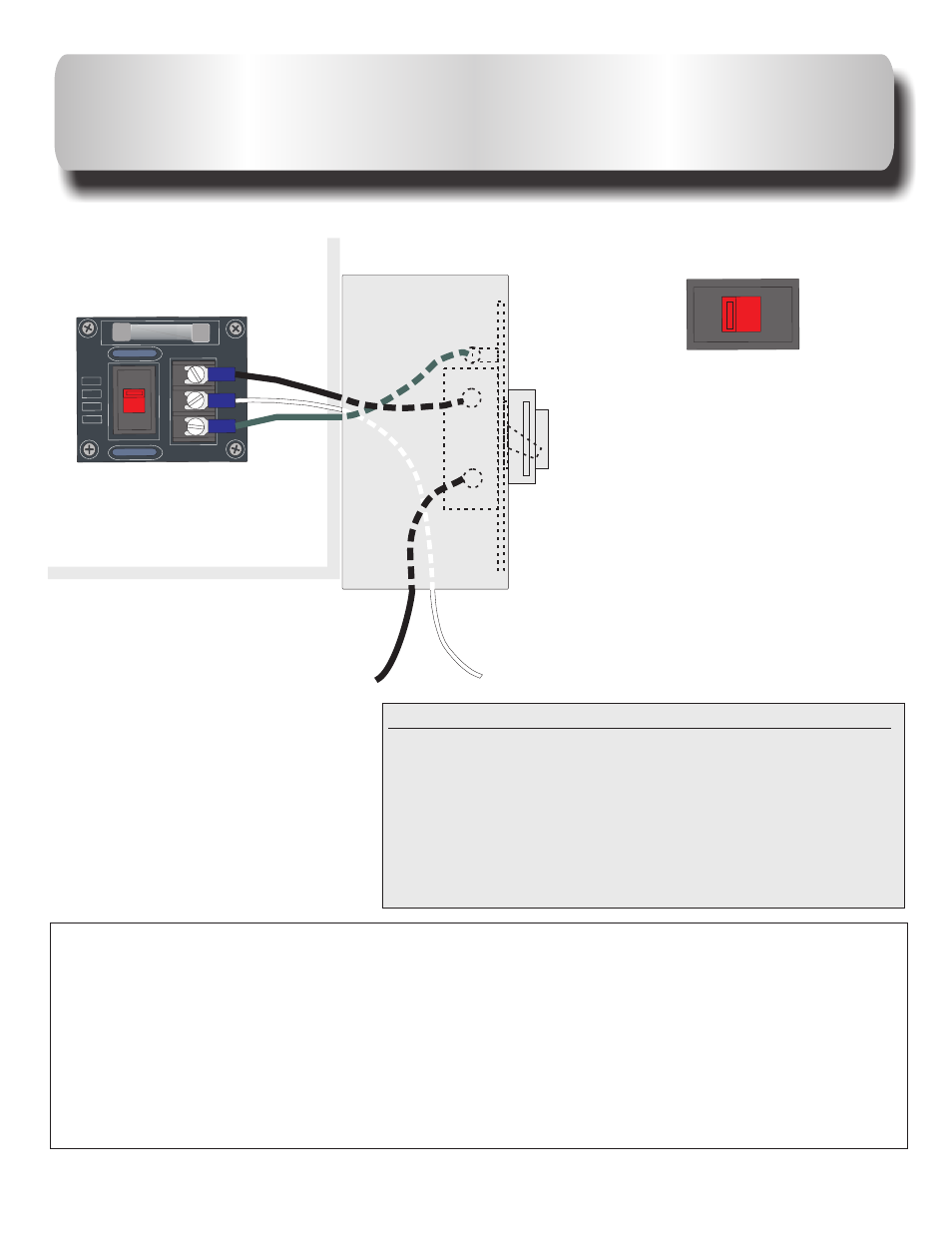

Power connection | 115VAC | 220VAC Single Phase
LINE 1 = 115V HOT 220V LINE 1
LINE 2 = 115V N 220V LINE 2
Connect to ground. Use a proper ground rod for a
ground reference.
Use the shortest and thickest wire possible for ground.
GND
For power wire enclosure
use UL listed conduits.
OPERATORS MUST BE PROPERLY GROUNDED!
For power, a minimum of a
dedicated circuit
breaker is needed.
20-Amp
NOTE: When applying 230V to
operator make sure voltage
switch is flipped to 230V
position.
