Typical loop layout, Exit loop, Normally closed contacts – Controlled Products Systems Group OH200DC User Manual

Page 11: Normally open contacts, Safety loop, For your safety loop detector and

1/4 IN

SAFETY LOOP

WHEN USED

EXIT LOOP

8 FT

TWISTED WIRE TO OPERATOR
OR CONTROL PANEL

GATE

TWISTED 6 TURNS

PER FOOT

WIRED IN SERIES

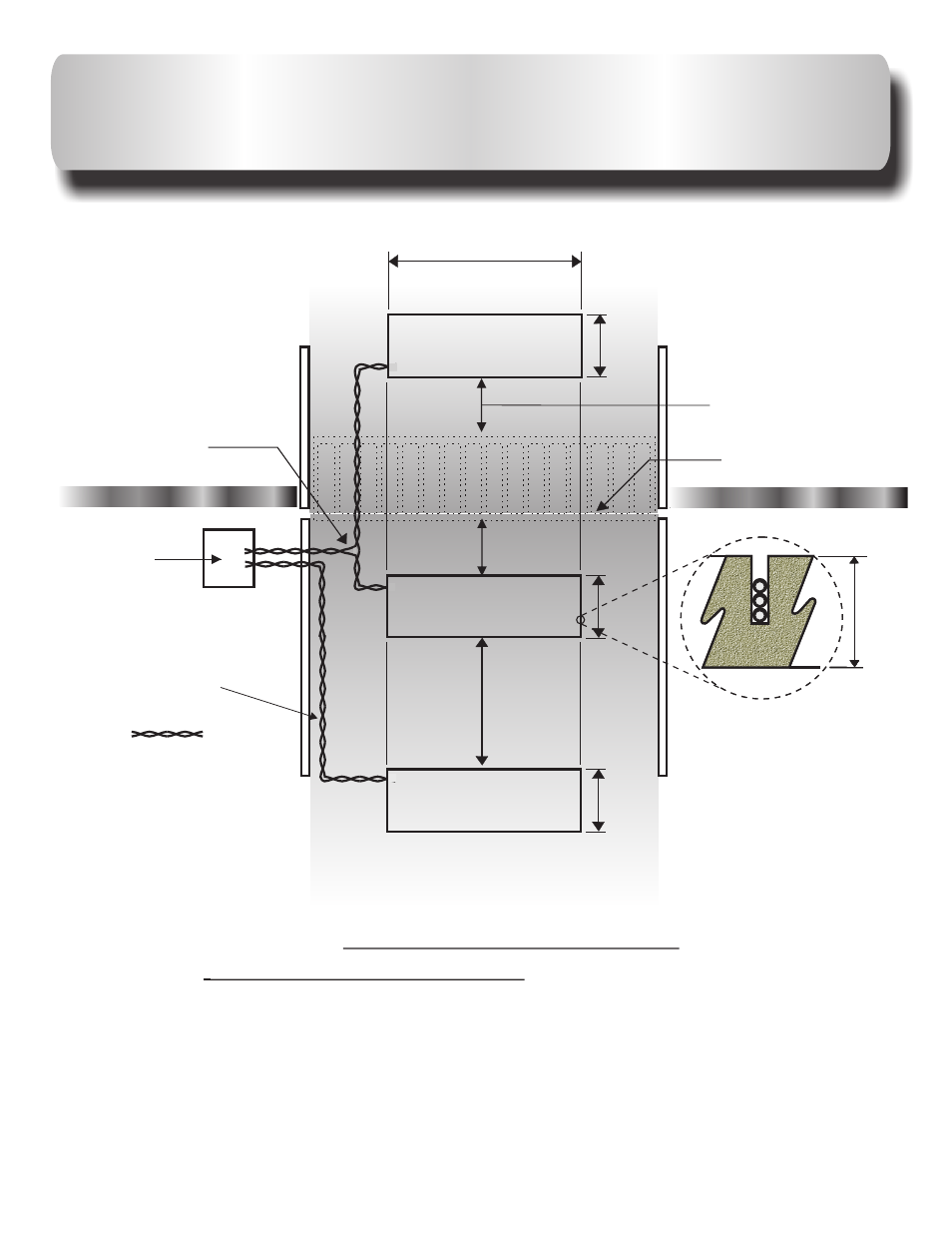

This is a normal loop layout. Remember when connecting to an All-O-Matic
circuit board you use the

normally closed contacts

for your safety loop

detector and

normally open contacts

from the exit loop. You must twist

your wires from your exit point of the saw cut all the way to the circuit
board, no exceptions.

OUT

SAFETY LOOP

TYPICAL LOOP LAYOUT

4ft from the tip of the
point of gate swing.
