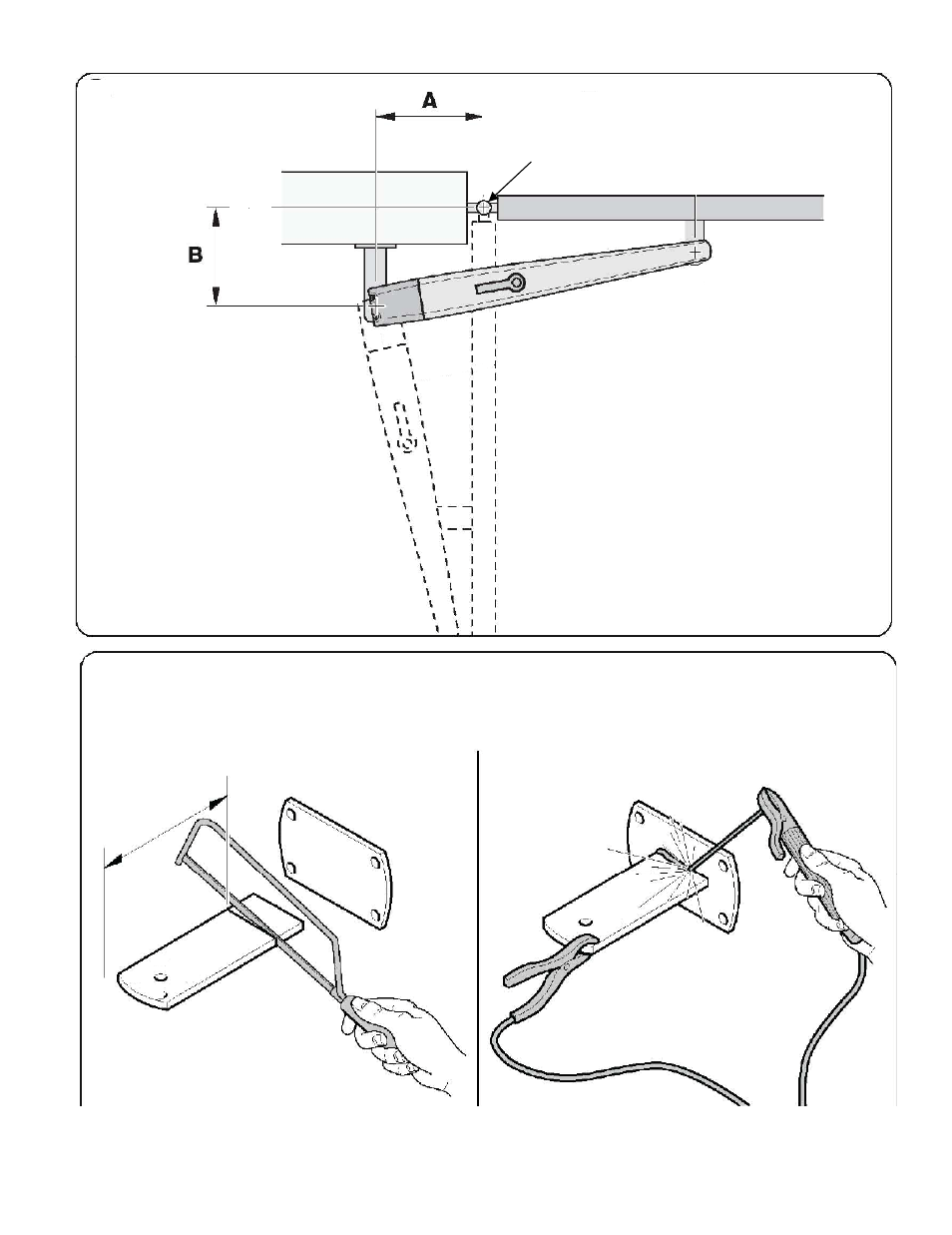

Pivot Arm position is measured
from the center of the gate
TOONA 5/7
A B
Toona 5 7-1/16” 7-1/16”
Toona 7 7-3/4” 7-3/4”
These dimensions are for 4” post
with hinge in center. Adjust ac-
cordingly if post size or hinge loca-
tion varies. A & B should always
be same value.
Pull to open installation shown here.
For push to open installation see page 22.
