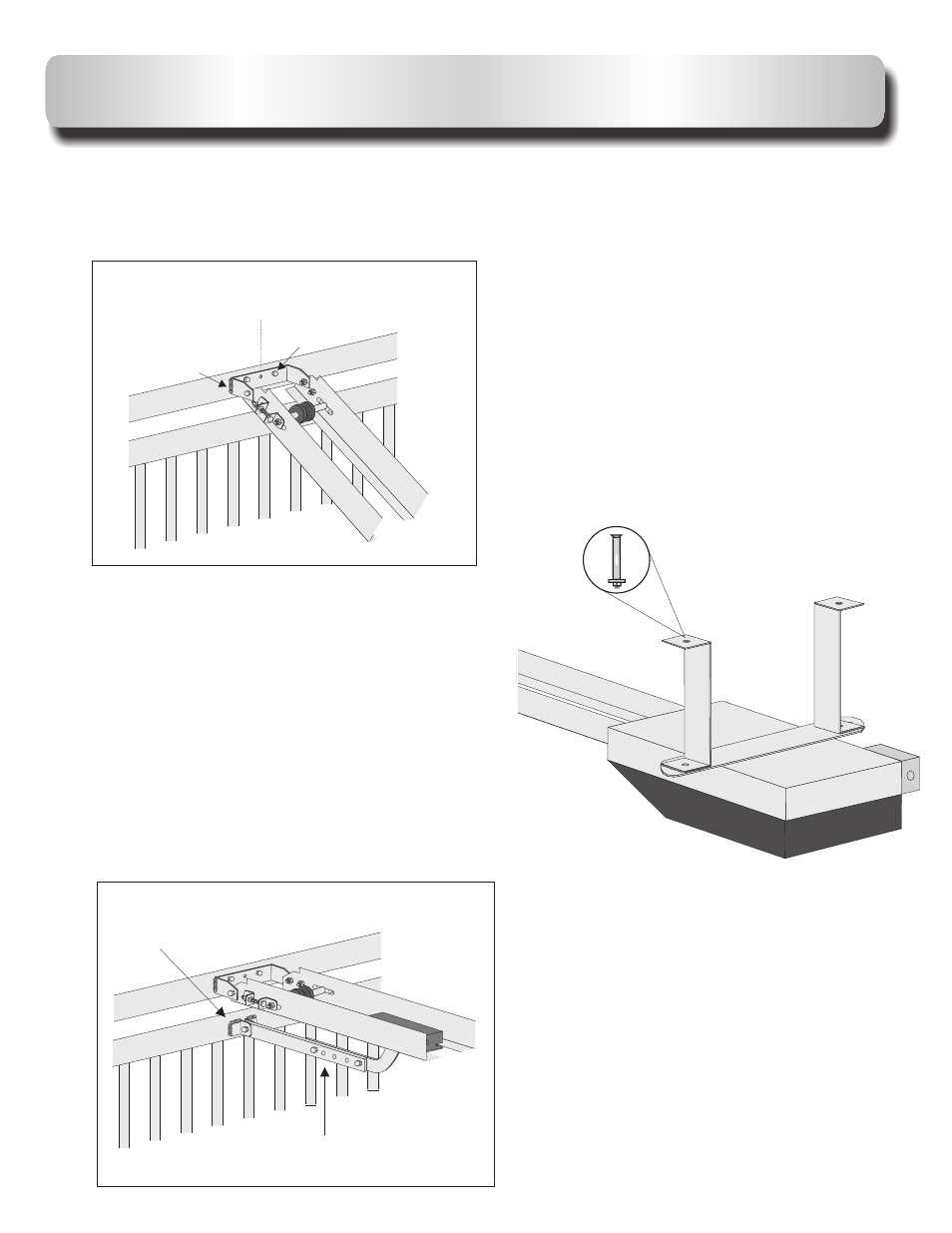

MOUNTING THE OPERATOR
7
Make sure end bracket is in the center of the
opening. Bolt or weld the end bracket to wall.
The operator bracket must be at least 2.5”
above the gate.
+
Level and align gate operator tracks before
mounting it to the ceiling. Manufacture ceiling
brackets to weld or bolt the operator in place.
Weld gate bracket into place with overhead
arm connected to insure alignment.
+
Weld
Bolt
Center
Overhead arm
Gate Bracket
Center
Concrete Anchor
½”X 3 ½”
