All gate operators be properly grounded.
A proper ground in a gate operator installation minimizes or prevents damage from an electrical charge, such as a near
lightning strike or an electrical static discharge.
.
Use a single wire for the ground. DO NOT splice two wires for the ground. If the wire breaks or is cut, replace it with a
single length. NEVER use two wires for the ground.
Check with your City code for proper earth ground rod type and proper grounding procedures.
MUST
ELECTRICAL CONNECTION

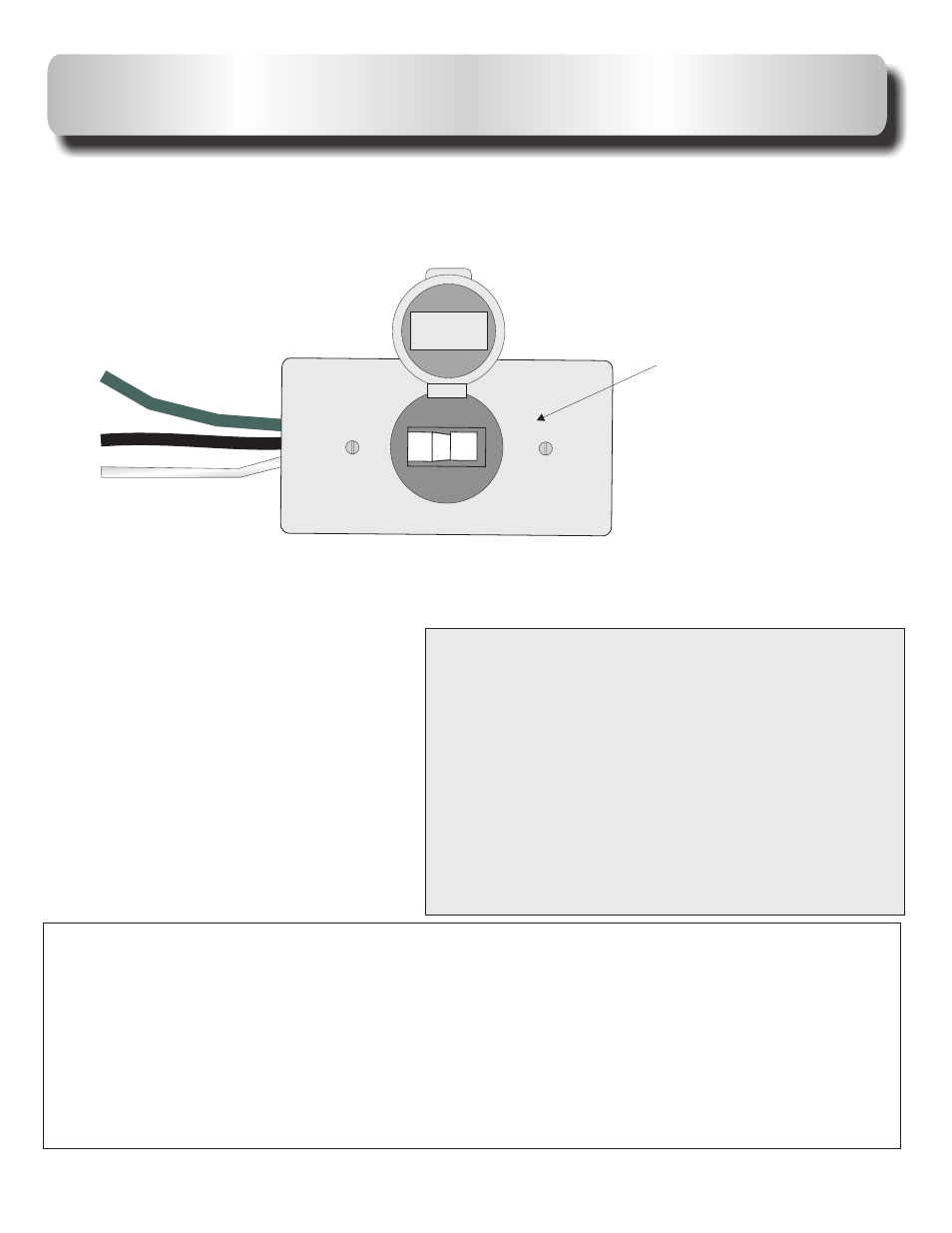

Power switch and
electrical connection
box.
Connect black wire to 115 volts AC = Hot.
Connect white wire to AC = Neutral.
Connect ground wire to operator metal frame. Use a
proper ground rod for a ground reference.
Use the shortest and thickest wire possible for ground.
For power wires enclosure
use UL listed conduits.
OPERATORS MUST BE PROPERLY GROUNDED!
10
For power, a minimum of a
20-Amp dedicated circuit
breaker is needed.
