LRA Linear Residential Actuator Installation Guide
- 26 -
228158 Revision X17 8-11-2011

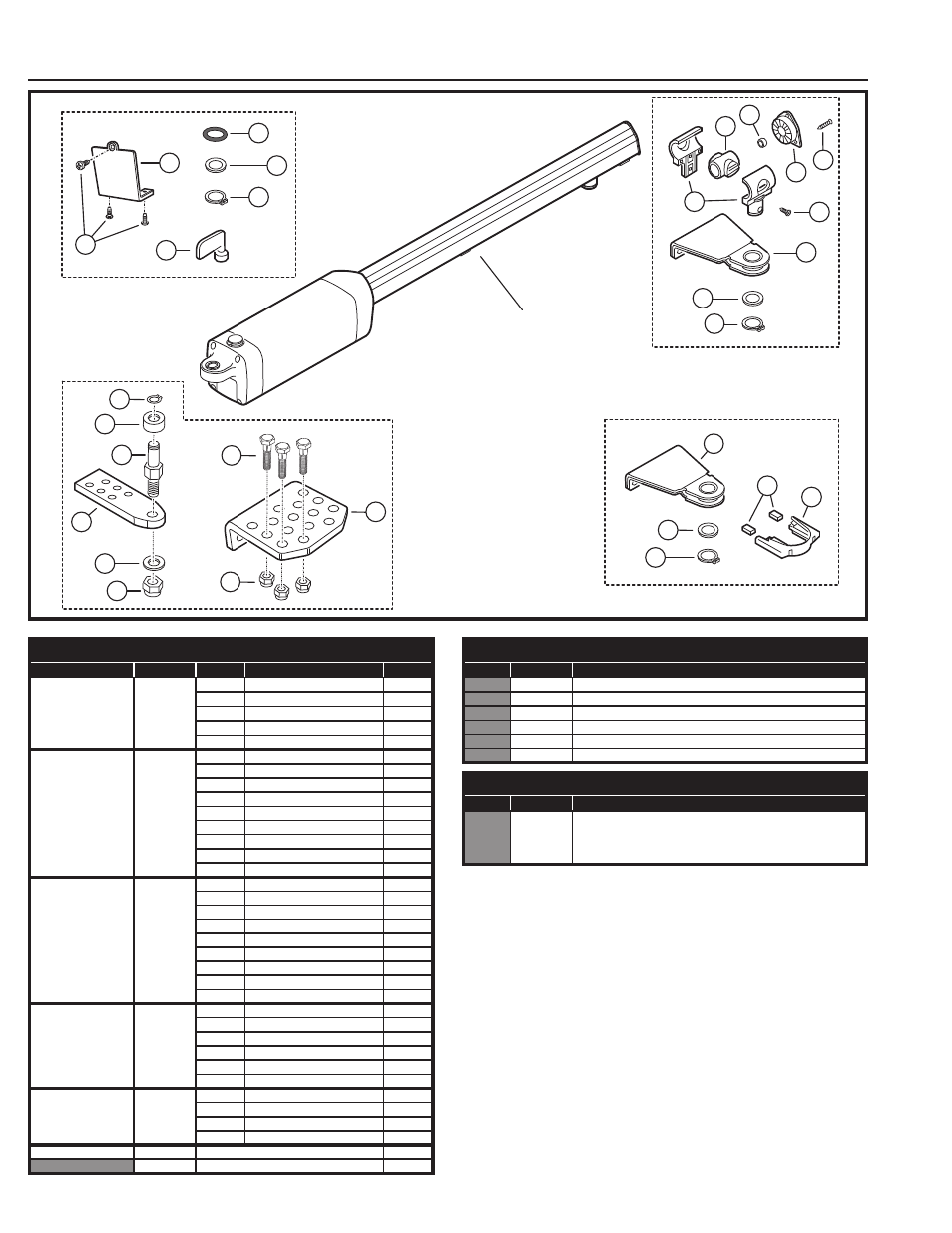

Model LRA Replacement Parts
HARDWARE KIT
POST
BRACKET
KIT
GATE BRACKET KIT
WORM DRIVE CAP,
TRAVELER, & GATE
BRACKET KIT
KIT #3
90
30
1
2
28
91
KIT #4
63
17
101
27
65
44
KIT #1
KIT #2
101
17
26
64
99
17
101
99
92
94
95
96
25
97
2500-2436
LRA COMPLETE ARM
31
32
33
MODEL LRA ARM MECHANICAL PARTS LIST
REF. #
PART #
ITEM #
REPLACEMENT PART
QTY.
KIT #1
Gate Bracket Kit
2500-2470
99
Gate Bracket
1
64
Magnet Holder
1
17
Seeger Ring D25
1
101
Spacer
1
26
Limit Magnet
2
KIT #2
Traveler, Cap, &
Gate Bracket Kit
2500-2479
99
Gate Bracket
1
96
Arm Cap
1
94
Traveler
1
97
Self-tapping Screw 4x18
2
25
Self-tapping Screw 5x20
3
17
Seeger Ring D25
1
101
Spacer
1
95
Self-lubricating Bushing
1
92
Traveler Shell
2
KIT #3
Post Bracket Kit
2500-2469
91
Locknut
1
28
Washer
2
30
Bushing
30
90
Seeger Ring D12
1
2
Operator Bracket
1
1
Operator Bracket Pin
1
31
Bolt
3
32
Locknut
3
33
Post Bracket
1
KIT #4
Hardware Kit
2500-2478
65
Wiring Cover
1
44
Self-Tapping Screw
3
17
Seeger Ring D25
1
101
Spacer
1
27
O-ring
1
63
Release Key
1
KIT #5
Limit Switch Kit
2510-461
29
Reed Sensor
1
66
Sensor Cover
1
21
Wire Holder
2
7
Self-Tapping Screw
1
63
2500-2471
Release Key Only
1
2500-2436
Complete LRA Arm (w/o Controller)
1
MODEL LRA CONTROLLER MECHANICAL PARTS LIST
REF. #
PART #
DESCRIPTION
2500-2474
Arm-to-Controller Cable, By Foot
2100-2119
Apex LRA Mounting Plate
2500-2472
Controller Enclosure (Complete w/o Apex Module)
2500-2476
24 Volt Plug-in Transformer
2520-518
Controller (Complete)
2500-2511
Apex Dual Capable DC Motor Module
LRA2 DUAL GATE KIT
REF. #
PART #
DESCRIPTION
LRA2
Second LRA arm kit for dual-gate installations
(kit includes one LRA arm, 40-feet of cable, and wiring
strain-relief bushing)
