LRA Linear Residential Actuator Installation Guide

- 8 -

228158 Revision X17 8-11-2011

Operator Setup (Continued)

Limit Switch Adjustment

The open and close limit switches are adjustable by sliding
them on the operator’s frame. Sliding either switch closer to
the center of the operator decreases the gate travel.

1. To limit the opening travel of the gate for setup, loosen the locking

screw on the open limit switch, slide the switch towards the center of
the operator (see Figure 11).

2. With the gate closed, apply power to the Controller, STAY CLEAR

OF THE GATE and press the OPEN button.

3. Observe the gate as it opens, and watch the point where it stops.

4. To limit the closing travel of the gate for setup, loosen the locking

screw on the close limit switch, remove the wire holding plugs from
the wire slot in the channel, slide the switch towards the center of the
operator (see Figure 12).

5. Be sure to STAY CLEAR OF THE GATE and press the CLOSE

button.

6. Observe the gate as it closes, and watch the point where it stops.

7. Adjust the two limit switches until the open and close stopping points

are set correctly for the gate. TIGHTEN THE LOCKING SCREWS
ON THE LIMIT SWITCHES
.

8. Push any extra limit wire back into the motor housing. Replace the

limit switch wire holding plugs to retain the limit switch wire.

SLIDE OPEN LIMIT SWITCH
TO ADJUST OPEN LIMIT

LIMIT SWITCH LOCKING SCREW

OPEN LIMIT SWITCH

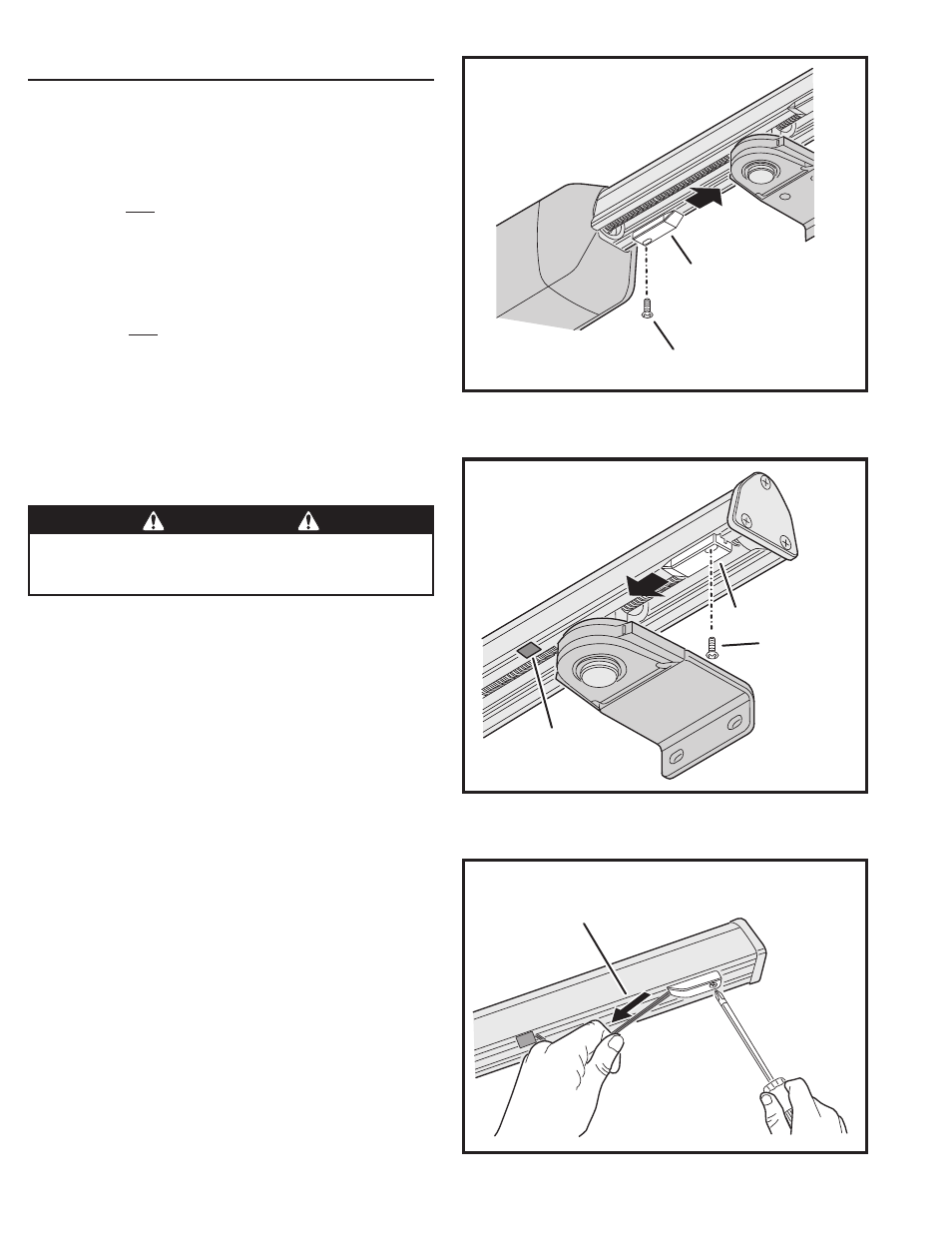

Figure 11. Open Limit Switch

Figure 12. Close Limit Switch

SLIDE CLOSE LIMIT SWITCH
TO ADJUST CLOSE LIMIT

LIMIT SWITCH
LOCKING SCREW

CLOSE LIMIT SWITCH

REMOVE AND REPLACE
LIMIT WIRE PLUG DURING
LIMIT SWITCH ADJUSTMENT

CAUTION

Be careful not to damage the limit switch wires while adjusting
the limit switches. Gently pull the limit switch wire while
tightening the limit switch locking screw (see Figure 12).

AVOID PINCHING THE LIMIT SWITCH
WIRE BY GENTLY PULLING IT WHILE
TIGHTENING THE LIMIT SWITCH

Figure 13. Limit Switch Wire
