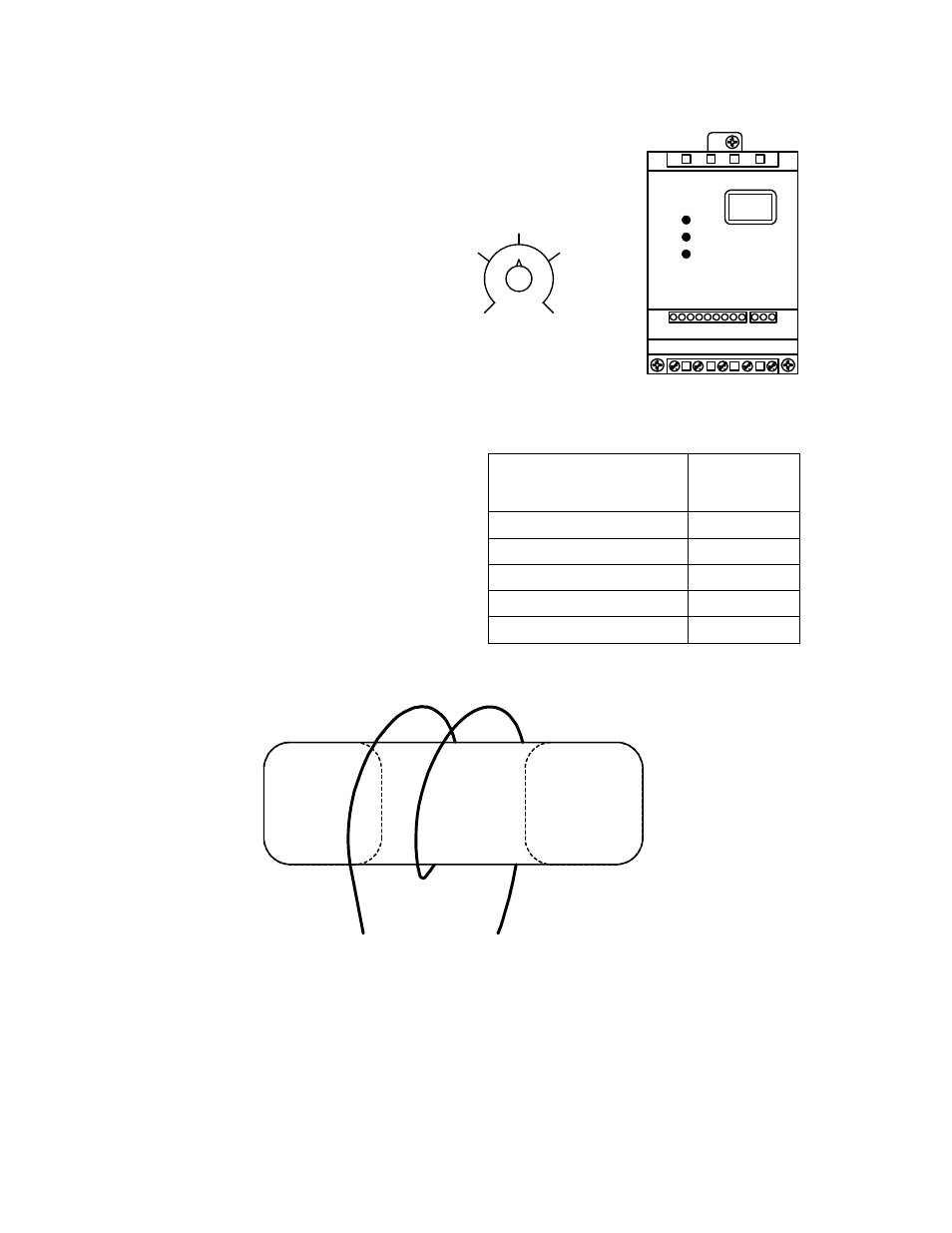

3.5 Speed Control (9220, 9230 Only)
The models 9220 and 9230 are equipped with
a speed control module that allows you to
adjust the speed of the gate from 1/2 to 2 Ft./
Sec. To adjust the speed, simply rotate the
speed control knob clockwise to increase the
gate speed, or counter clockwise to decrease
the gate speed. The digital readout on the
speed controller will display the gate speed.
1 2 5 6
13A
11
13B 13E
25 16 17
U V W PE PE
L1 L2 L3 B- B+
0 ft/s
.5
ft/s
1.5
ft/s
2 ft/s
1
ft/s
1.0
3.6 Current Sensor Wiring
This vehicular gate operator uses a current
sensing device to detect any obstructions in the
path of the opening or closing gate. The current
sensor uses a sensing coil with a given number of
turns through it to monitor the current flow into the
operator. The number of turns through the
sensing coil is dependant on the operating voltage
of the operator.
Voltage and Phase Complete
Turns Through
Sensor Coil
115 Single Phase 1
230 Single Phase 2
208 Three Phase 5
230 Three Phase 6
460 Three Phase 7
