Additional hardware required. Post mount kit (P/N 9000-015). Endless idler assembly (P/N 2600-818)
and additional chain #40 (P/N 2600-442 - 20 ft. per box) may be needed.

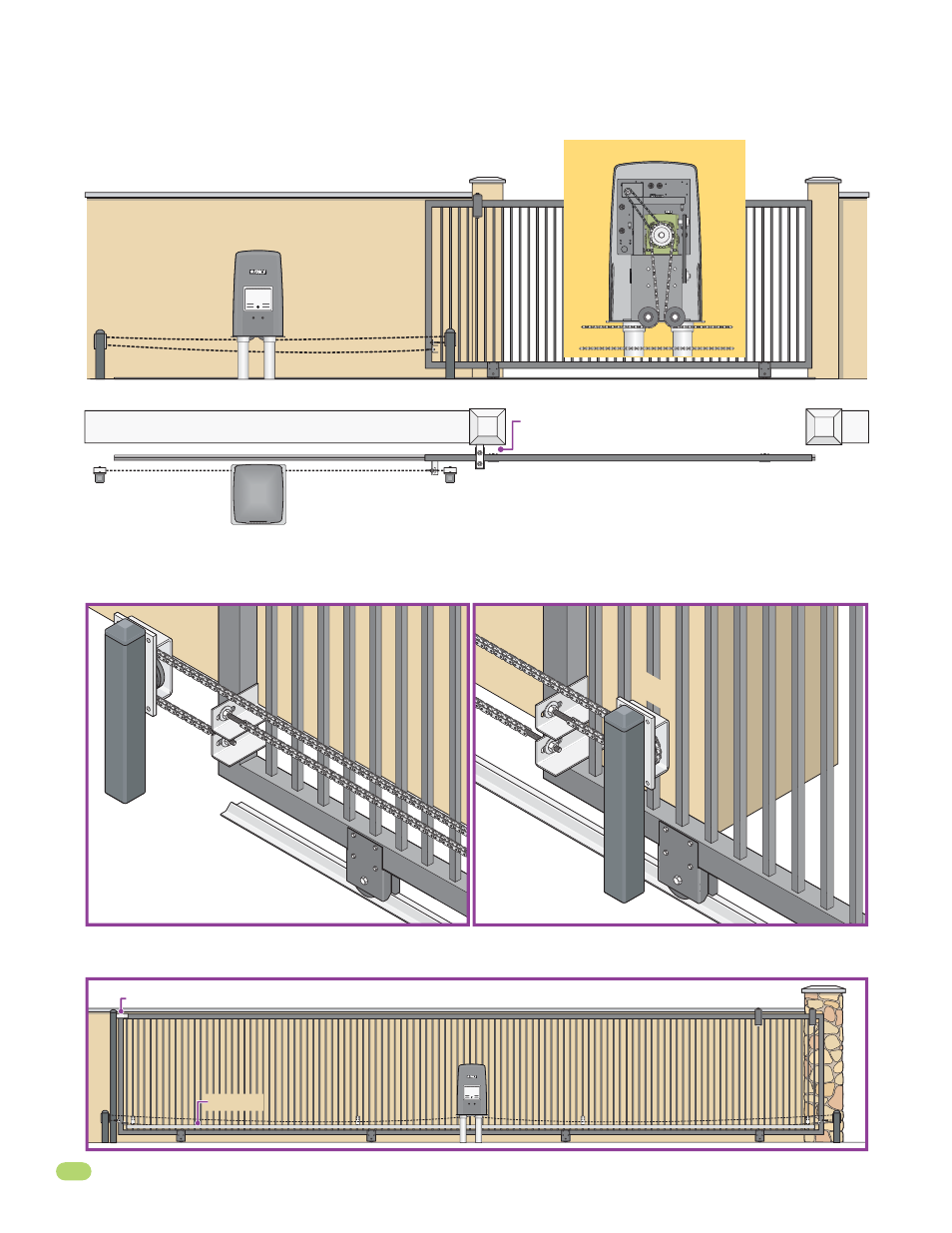

Top View
Idler Wheels and Chain Setup
• Set operator chain idler wheels in the bottom
position.
Center Position with Post Mount Kit
Hides the chain from outside the property looking in.
Allows the use of DoorKing’s chain tray kit to attach to gate. This is useful with long gates. It supports the chain’s weight and
helps prevent chain “stretching”.
Gate in Close Position
Endless
Idler
Endless
Idler
Gate in Open Position
Gate shown in open position.
Chain Tray
DoorKing’s Chain Tray Kit for Long Gates
See page 18 for more information.
Gate End Retainer
See page 17 for
more information
about endless idlers.
See next page and the post mount instruction sheet included with the kit for more information about post installation.
A filler post or barrier may need to be installed between
the gate and wall area (See page 8 for more information).
