Controlled Products Systems Group PR-112S-A User Manual

Page 5

ENFORCER Stand-Alone Proximity Reader Manual

Some examples:
Number of user cards

Beep sequence

Long beep / 1 short beep / 3 short beeps

Long beep / 2 short beeps /4 short beeps

Long beep / Long beep / 7 short beeps

100

1 short beep / Long beep / Long beep

8. Set the relay toggle mode: (timed output or toggle)

Action

Reaction

Tap a master card 8 times

2 quick beeps, 7 more beeps

Wait 3 seconds

8 beeps, green flashes continue

Wait a second, and the mode

Beeps 1 time = normal mode

changes automatically

Beeps 2 times = latched mode

The unit automatically exits to standby mode

Normal mode -- Use a user card to unlock the door, the door automatically locks after
the timer expires.
Toggle mode -- Use a user card to unlock the door, and then use a user card to relock
the door.

9. Not used, reserved for future use:

10. Set the beeper mode: (to beep or not when a user card is used)

Action

Reaction

Tap a master card 10 times

2 quick beeps, 9 more beeps

Wait 3 seconds

10 beeps, green flashes continue

Wait a second, and the mode

Beeps 1 time = beeper off

changes automatically

Beeps 2 times = beeper on

The unit automatically exits to standby mode

NOTE -- When the beeping is programmed off, the proximity reader will still beep during
the programming mode.

___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________

___________________________________________________________________________________________________________________

Through hole

for cables

Mounting plate

Screw mounting

plate to surface

Proximity

reader

Included

case screw

First-Time Power Up:

1. After connecting power the unit should beep once and the LED should be

Blue

- Theproximity

reader is ready to be programmed using the included master card marked with a

red

sticker.

2. If after connecting power for the first time the LED is flashing

Green

you must program your

master card by tapping it to the reader.

3. This will be followed by 2 short beeps and the LED should turn

Blue

4. The proximity reader is ready to be programmed using the master card you just created.

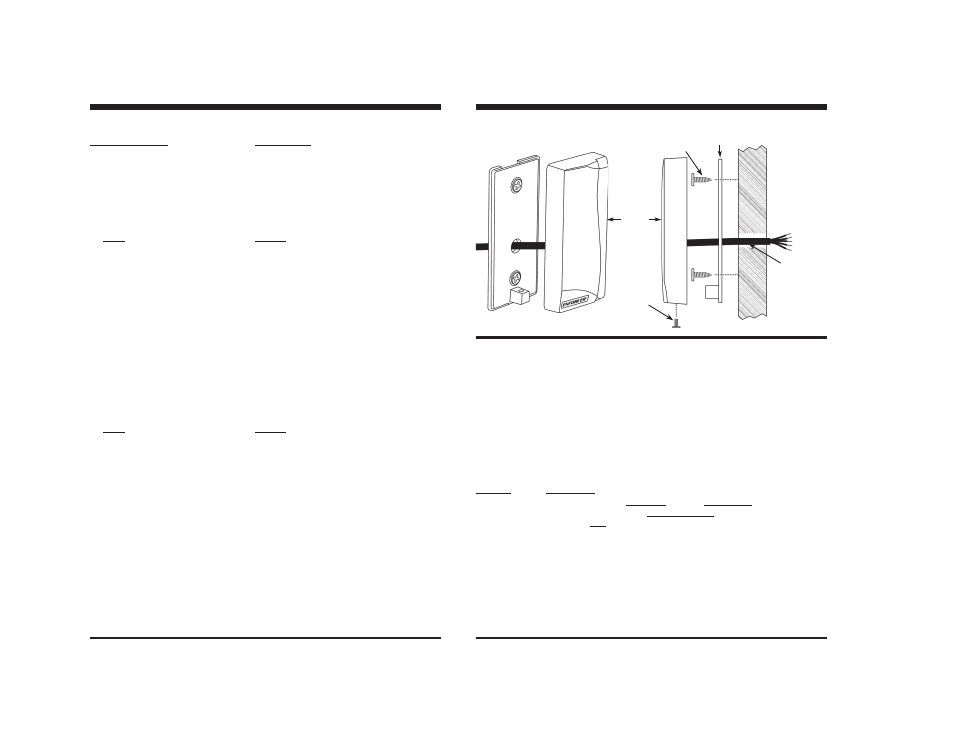

Mounting Diagram:

Card Types:

There are three basic types of cards used by the proximity reader:

●

Master Card (MC) – Used for programming only. It does not give access to the protected premises.

●

User Card (UC) – Used for access only. Considered to be a valid card.

●

Blank Card (BC) – A card that has not yet been programmed into the proximity reader. Considered
to be an invalid card.

NOTE – The proximity reader can learn up to 5 master cards and 100 user cards.

LED Color Meanings:

LED Color ...............What it means

Blue .........................

The proximity reader is powered on and in the standby mode

Green ......................

The proximity reader is in the programming mode

Red .........................

Indicates an error

Getting Started:
