ENFORCER Stand-Alone Proximity Reader Manual ENFORCER Stand-Alone Proximity Reader Manual
Features:
● Stand-Alone Proximity Card Reader.
● Use in small businesses, homes, parking structures, apartments, and other locations.
● Sealed and weatherproof (IP67). Mounts easily to interior and exterior walls.
● Attractive tri-color wave-shaped LED status bar indicates proximity reader's mode and status.
Blue: On/Valid card indicator
Green: Programming mode
Red:
Invalid card
● Output relay for either timed (1 to 180 seconds) or "Toggle" mode.
● Egress input to exit the protected area without using the proximity reader.
● Buzzer is programmable for audible confirmation or silent mode.
● Up to 100 user cards can be programmed.
● User cards easily deleted. Delete a single card, or all cards.
● Up to 5 "Master" cards can be programmed.
● 10 blank cards included.

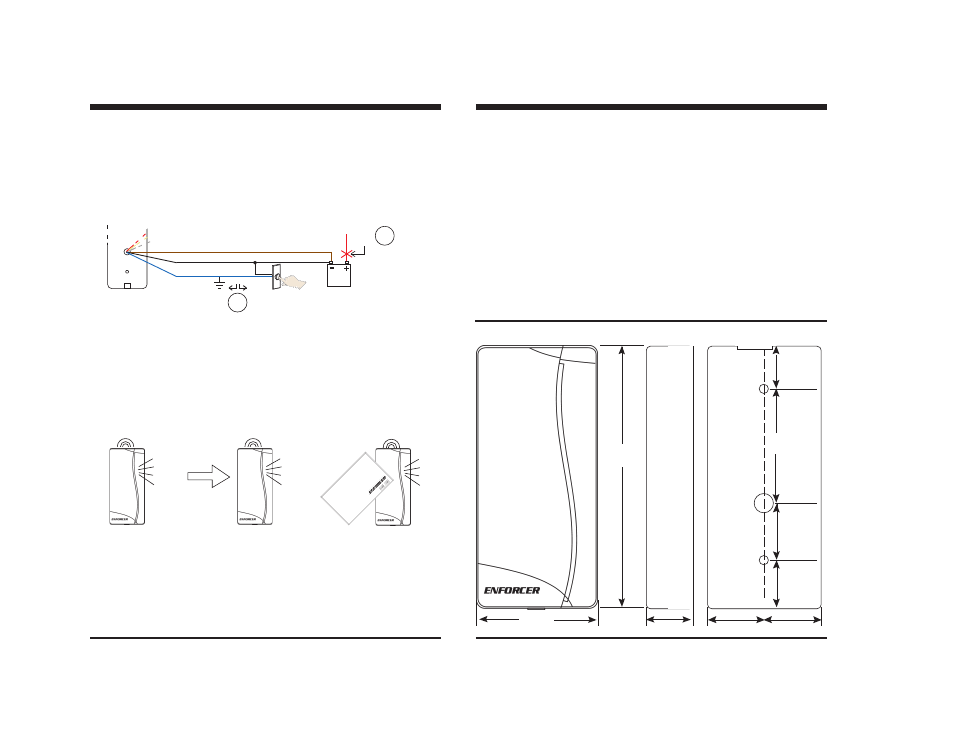

Dimensions:
(Actual size)
3 3 / 4 ”
(95mm)
1 3 / 4 ” (44mm)
11 / 16 ” (17mm)
1 9 / 16 ”
(40mm)
13 / 16 ”
(21mm)
11 / 16 ”
(17mm)
5 / 8 ”
(16mm)
Front
side
Back
(Mounting Plate)
13 / 16 ” (21mm) 13 / 16 ” (21mm)
Beep Beep Beep
Flash
Green!
Green!
Green!
...
5 sec.
Flash
G..r..e..e..n!
G..r..e..e..n!
G..r..e..e..n!
. . .
Beep
Flash
Blue!
(Blank Card)
3 10
Cut
power
12VDC
Power
BROWN: COM (input)
BLACK: Ground
BLUE: Egress Input EXIT
SALIDA
Egress
Or
1
2
System Reset:
Should it be necessary to completely reset the proximity reader, follow this procedure:
1. Disconnect power to the proximity reader.
2. Ground the BLUE wire:
2.1 If the egress button is connected, DO NOT open the case. Just press and hold the egress button.
2.2 If the egress button is not connected, you must unscrew the proximity reader from the wall, and
ground the BLUE wire.
3. While either pressing the egress button or grounding the BLUE wire, reconnect power. The LED will
start to blink GREEN. Continue pressing the egress button or grounding the BLUE wire.
4. After about 3 seconds, the proximity reader should sound two long beeps. At this point, release the
egress button or unground the BLUE wire.
NOTE: If a mistake is made, just restart this process from step 2 above.
NOTE: After a system reset, all cards except the new master card are now considered to be blank
cards.
5. After a few seconds, the proximity reader will sound 3 beeps and the LED will start flashing GREEN
rapidly. After about 5 seconds, the LED will flash more slowly. At this point, tap any card to the
proximity reader. This is now the first master card.
