5
5.1 Connecting a CVG-3AVR/B
Connect 1 the CVG-3AVR/B 1:3 Audio/Video DA, as Figure 3 illustrates, as
follows:
1. Connect a composite video source to the video input connector.
2. Connect up to 3 video output connectors to the appropriate audio video
acceptors.
3. Connect the audio source to the right and left audio input connectors.
4. Connect up to 3 right and left audio output connectors to the appropriate
audio video acceptors.
5. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
6. Adjust the audio level and the video EQ. and video level, as required.

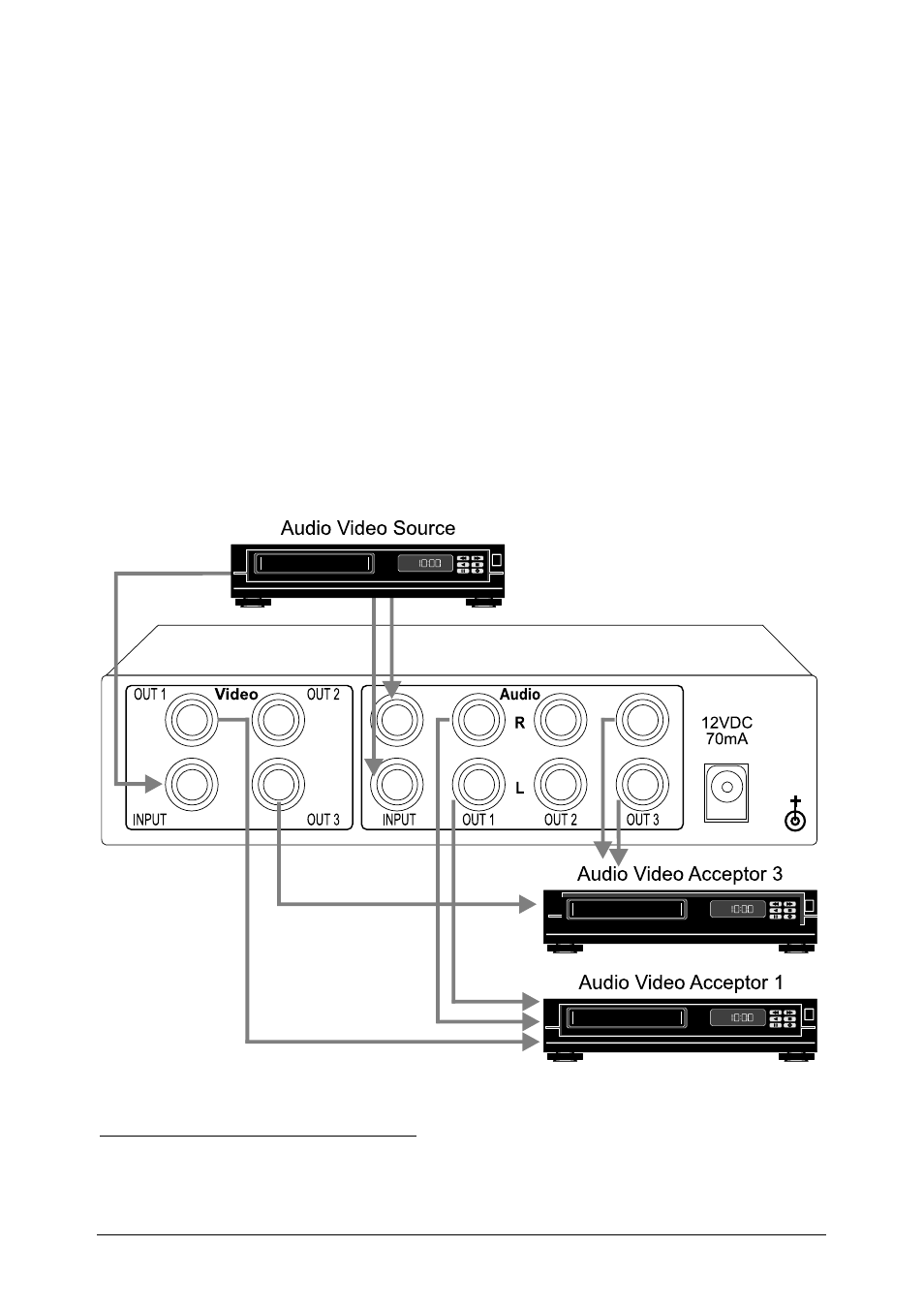

Figure 3: CVG-3AVR 1:3 Audio/Video DA Connection
1 Switch OFF the power on each device before connecting it to your CVG-3AVR/B. After connecting your CVG-3AVR/B,
switch on its power and then switch on the power on each device
