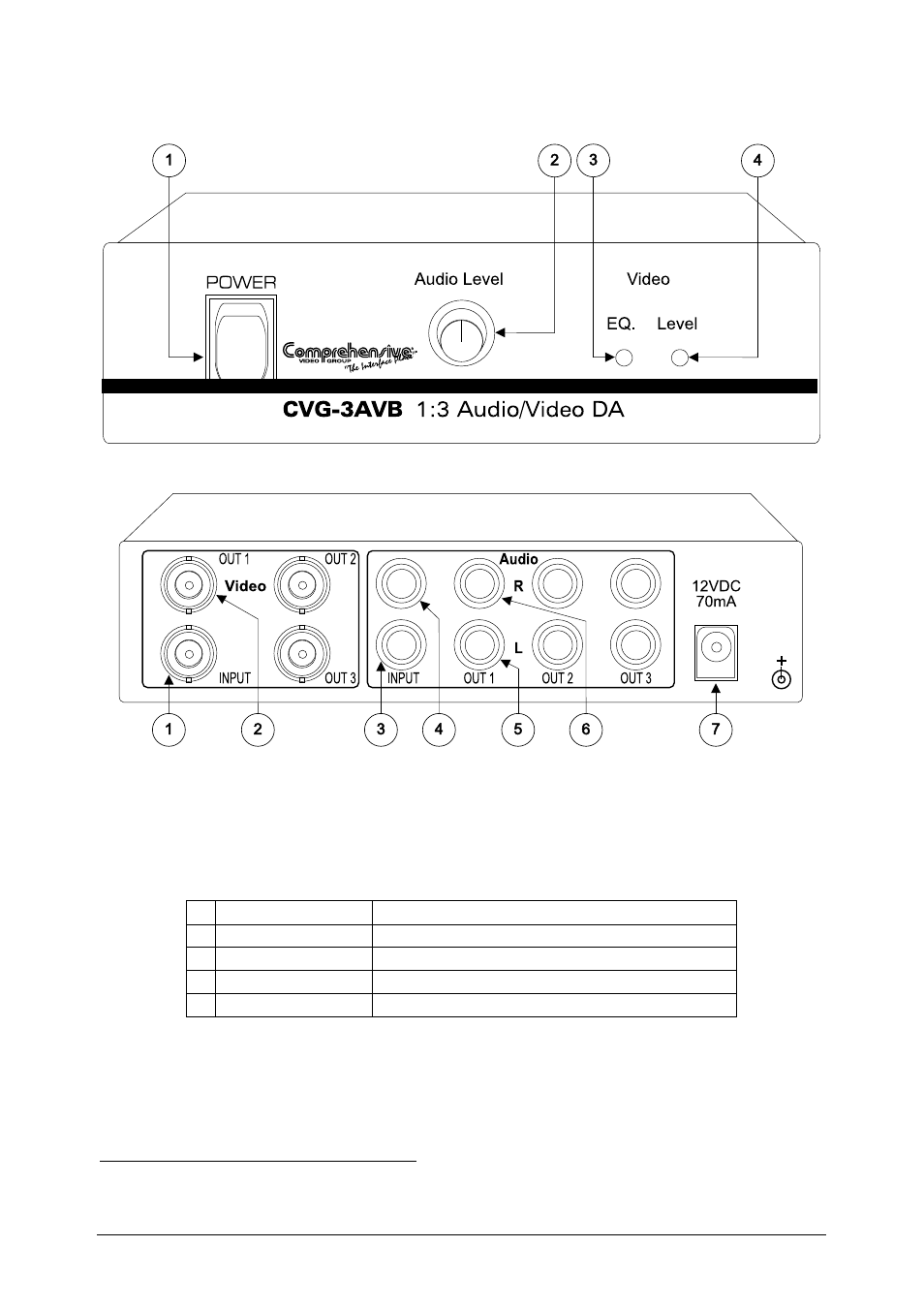

Figure 2 illustrates the front and rear panels of the CVG-3AVB:
Figure 2: CVG-3AVB 1:3 Audio/Video DA
Table 1 and Table 2 define the front and rear panels of the CVG-3AVR and
the CVG-3AVB, respectively.
Table 1: Front Panel CVG-3AVR and CVG-3AVB 1:3 Audio/Video DA Features
# Feature Function
1 POWER Switch Illuminated switch supplying power to the unit
2 Audio Level Knob Adjusts the audio output signal level
3 Video EQ. Trimmer Adjusts 1 the video EQ. (equalization) compensation
4 Video Level Trimmer Adjusts 1 the video signal level
1 Insert a screwdriver into the small hole and carefully rotate it, to trim the appropriate level
