6
5.2 Connecting the CDA-V50 1:5 High Resolution Video DA
To connect the CDA-V50 1:5 High Resolution Video DA, as the example in
Figure 5 illustrates, connect the following 1 :
1. Connect a composite video source (for example, a composite video
player) to the INPUT BNC connector.
2. Connect the video output connectors to up to 5 composite video acceptors
(for example, composite video recorders).
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not illustrated Figure 5).
4. If required, adjust the video level.

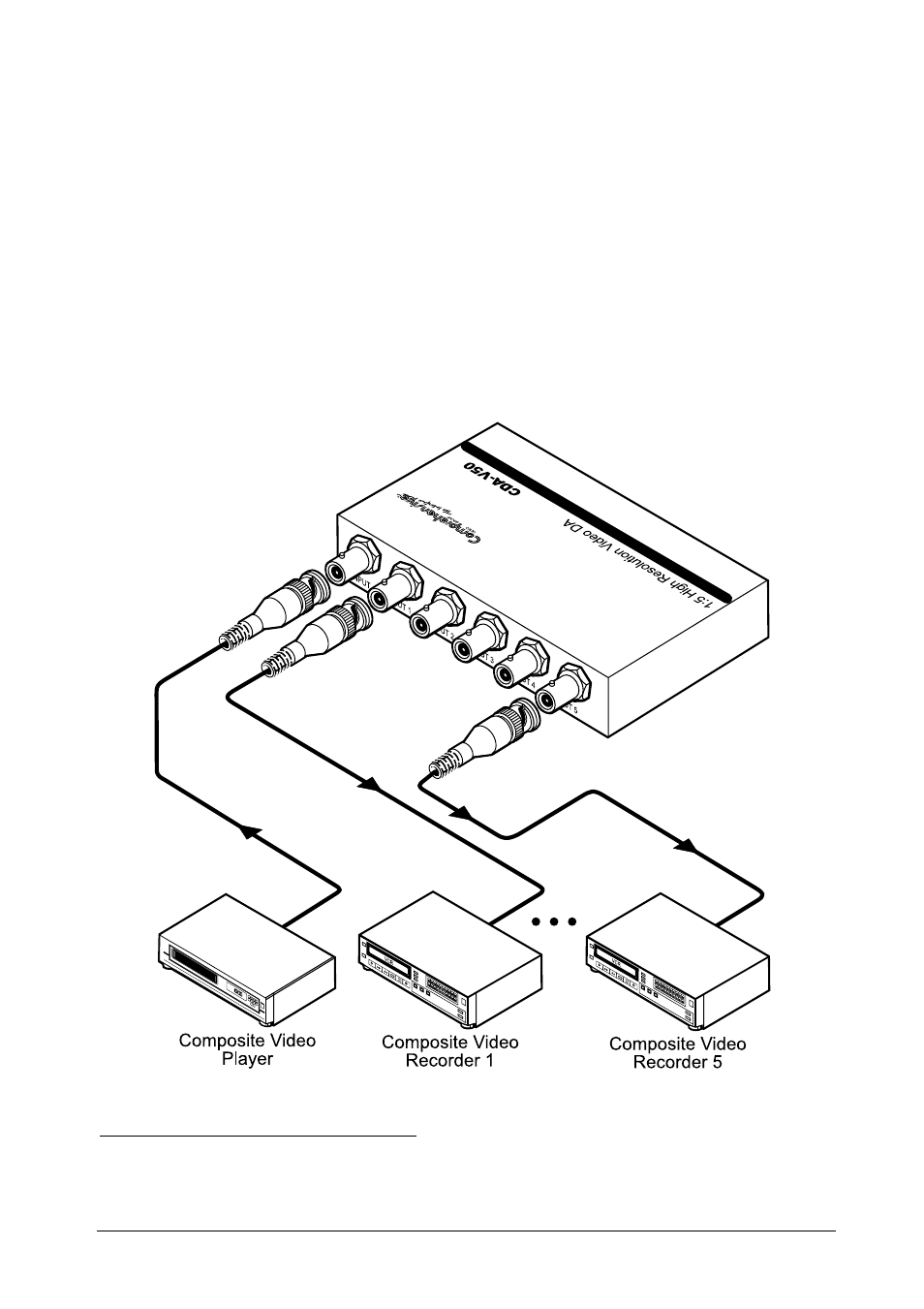

Figure 5: Connecting the CDA-V50 1:5 High Resolution Video DA
1 Switch OFF the power on each device before connecting it to your CDA-SV50. After connecting your CDA-SV50, switch
on its power and then switch on the power on each device
