Comprehensive CDA-V50 - Manual (Page 5)

3
Table 1: Features and Functions of the CDA-V31 Audio-Stereo / Video DA
# Feature Function
1 OUT 1 RCA Connector Connects to the video acceptor 1
2 OUT 2 RCA Connector Connects to the video acceptor 2
3
VIDEO
OUT 3 RCA Connector Connects to the video acceptor 3
4 OUT 1 Mini Phone Connector Connects to the unbalanced stereo audio acceptor 1
5 OUT 2 Mini Phone Connector Connects to the unbalanced stereo audio acceptor 2
6
AUDIO
OUT 3 Mini Phone Connector Connects to the unbalanced stereo audio acceptor 3
7 12V DC +12V DC connector for powering the unit
8 LEFT Trimmer 1 Adjusts the left channel audio gain
9
AUDIO
LEVEL
RIGHT Trimmer 1 Adjusts the right channel audio gain
10 AUDIO IN Mini Phone Connector Connects to the unbalanced stereo audio source
11 VIDEO LEVEL Trimmer Adjusts the gain of the video outputs
12 VIDEO IN RCA Connector Connects to the video source
13 ON LED Illuminates when the machine is powered
4.2 Your CDA-V50 1:5 High Resolution Video DA
The CDA-V50 is a high performance distribution amplifier for composite
video signals on BNC connectors. It accepts one input, provides correct
buffering and isolation and distributes the signal to five identical outputs.
The
CDA-V50:
Has a bandwidth of 400MHz to ensure transparent operation even in the
most critical applications
Includes video level (Gain) control
Figure 2 and Table 2 define the CDA-V50 1:5 High Resolution Video DA:

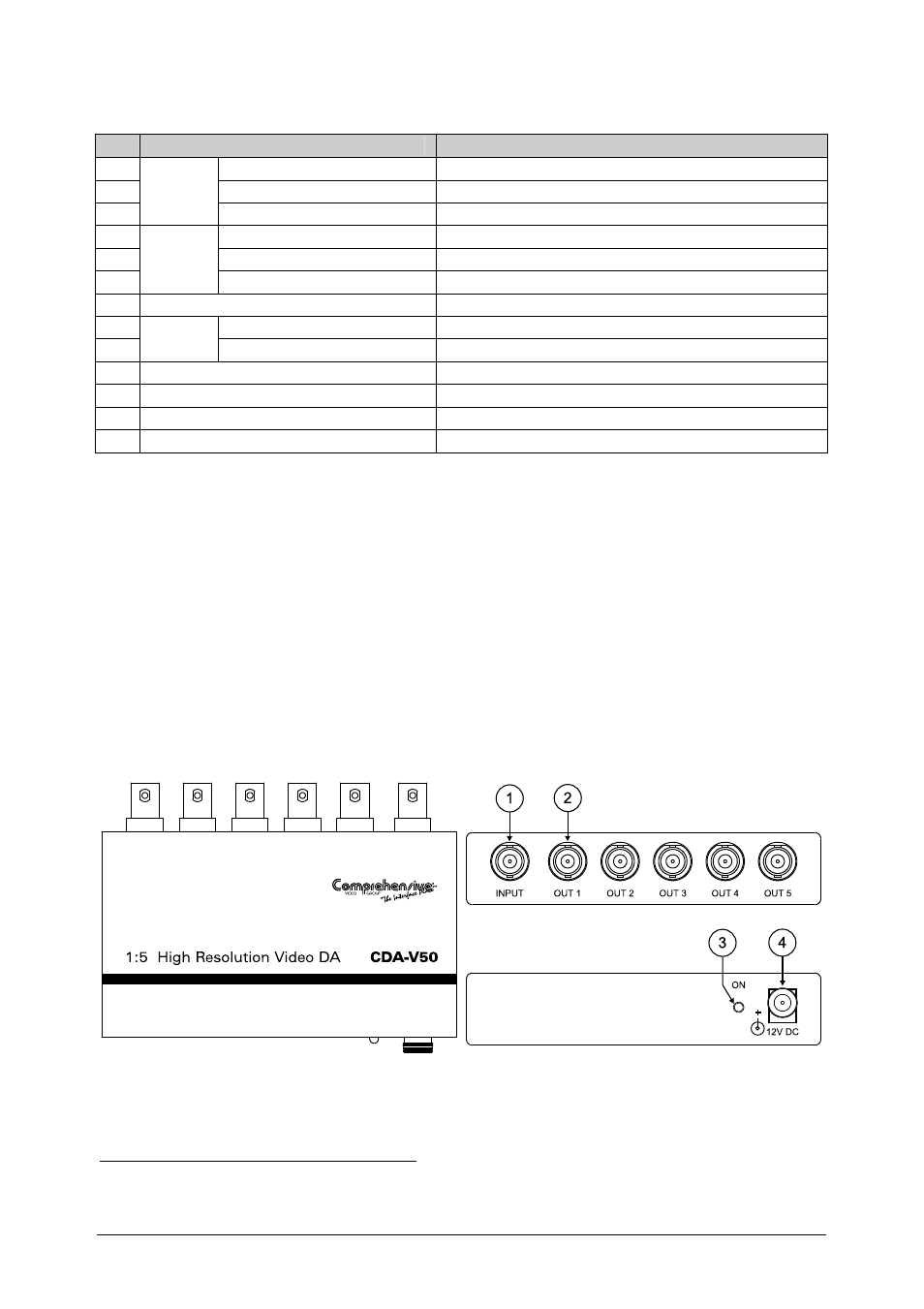

Figure 2: CDA-V50 1:5 High Resolution Video DA
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
