4
Table 2: Features and Functions of the CDA-V50 1:5 High Resolution Video DA
# Feature Function
1 INPUT BNC Connector Connects to the composite video source
2 OUT BNC Connectors Connect to the composite video acceptor (from 1 to 5)
3 ON LED Illuminates when the machine is powered
4 12V DC +12V DC connector for powering the unit
Figure 3 and Table 3 define the CDA-V50 underside panel:

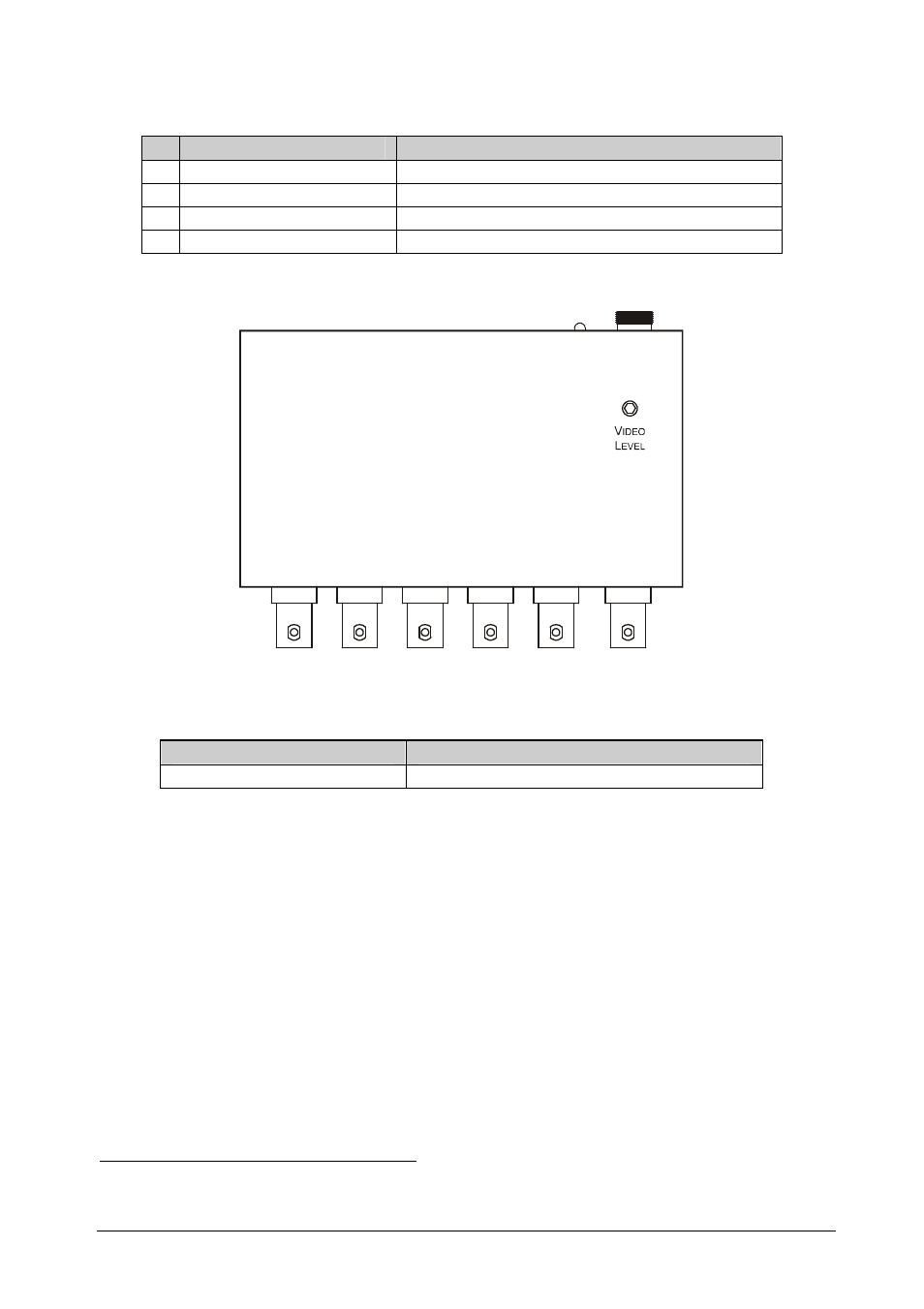

Figure 3: CDA-V50 1:5 High Resolution Video DA Underside Panel
Table 3: Features and Functions of the CDA-V50 Underside Panel
Feature Function
VIDEO LEVEL Trimmer 1 Controls the gain of the video outputs
5 Connecting the CDA-V31 and CDA-V50
This section describes how to connect the:
CDA-V31 1:3 Audio-Stereo / Video DA, see section 5.1
CDA-V50 1:5 High Resolution Video DA, see section 5.2
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
