4 Your CDA-V31 and CDA-V50
This section describes the:
CDA-V31 1:3 Audio-Stereo / Video DA, see section 4.1
CDA-V50 1:5 High Resolution Video DA, see section 4.2
4.1 Your CDA-V31 1:3 Audio-Stereo / Video DA
The CDA-V31 is a compact distribution amplifier for composite video and
unbalanced stereo audio signals. It will take one input, provide correct
buffering and isolation, and distribute the signal to three identical outputs.
The CDA-V31:
Has a high video bandwidth of 415MHz to ensure transparent operation
even in the most critical applications
Uses RCA connectors for composite video, and 3.5mm mini jack
connectors for the unbalanced stereo audio
Includes audio and video level (gain) controls

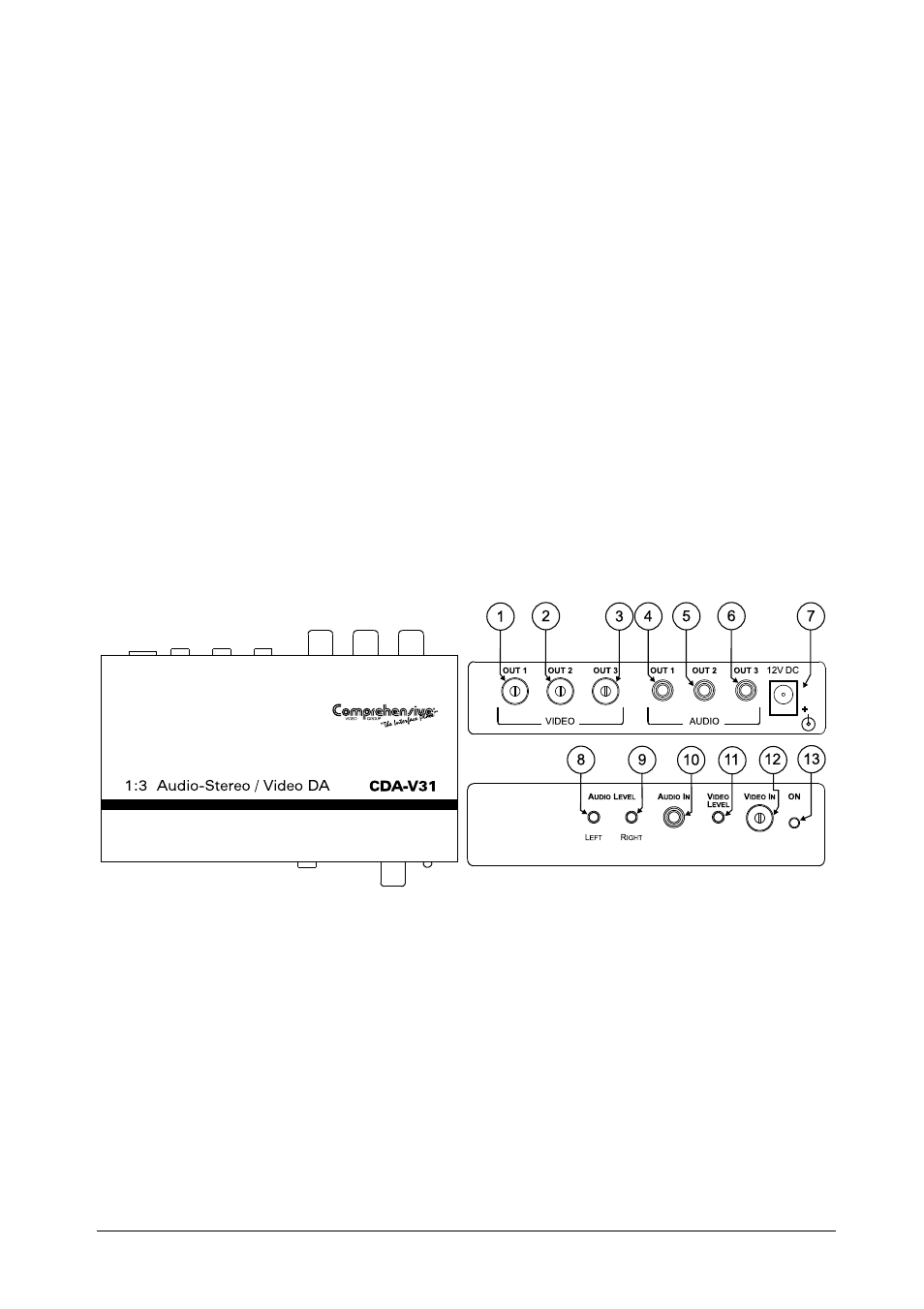

Figure 1 and Table 1 define the CDA-V31 1:3 Audio-Stereo / Video DA:
Figure 1: CDA-V31 Audio-Stereo / Video DA
