Chapter 3: Setting up the Printer
18
A799 Two-Color Thermal Receipt Printer: User Guide
A799-UG00001 Rev. D
11/2012
To install the communication cable:
1
Make sure the host computer is off.
2
Open the connector cover at the rear of the printer.
3
Attach the communication cable to the communication connector, shown in the center in the illustration. Tighten the
screws to secure the cable and ensure a stable connection.
4
Connect the cable to the host computer.
Communication cables
According to your printer configuration, the printer has different communication connection options. Select and attach
either 9-pin RS-232C, 25-pin RS-232C, standard USB, powered USB, or Ethernet communication cable to the printer and
host computer.
For printers with both 9-pin RS-232C and USB connectors, only a single communication connection is to be used during
operations.
RS-232C cable (9-pin and 25-pin) and parallel
The communication cable connects the printer to the host computer using either the 9-pin or 25-pin RS-232C, or 25-pin
parallel interface. Installation is identical for all connectors.

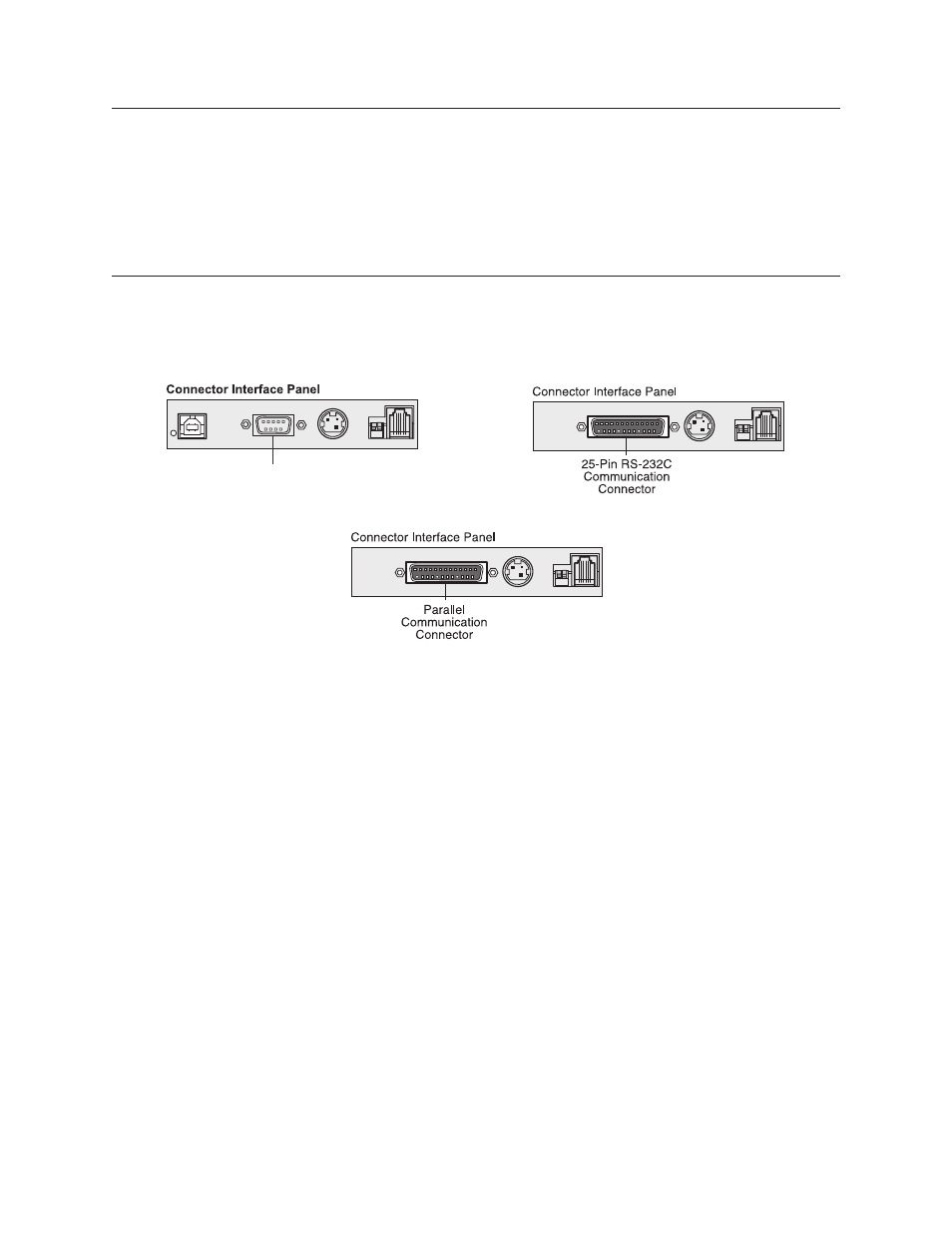

9-pin RS-232C
communication
connector
25-pin RS-232C
communication
connector
