XNET Network Video Server Installation Manual
7 / 18

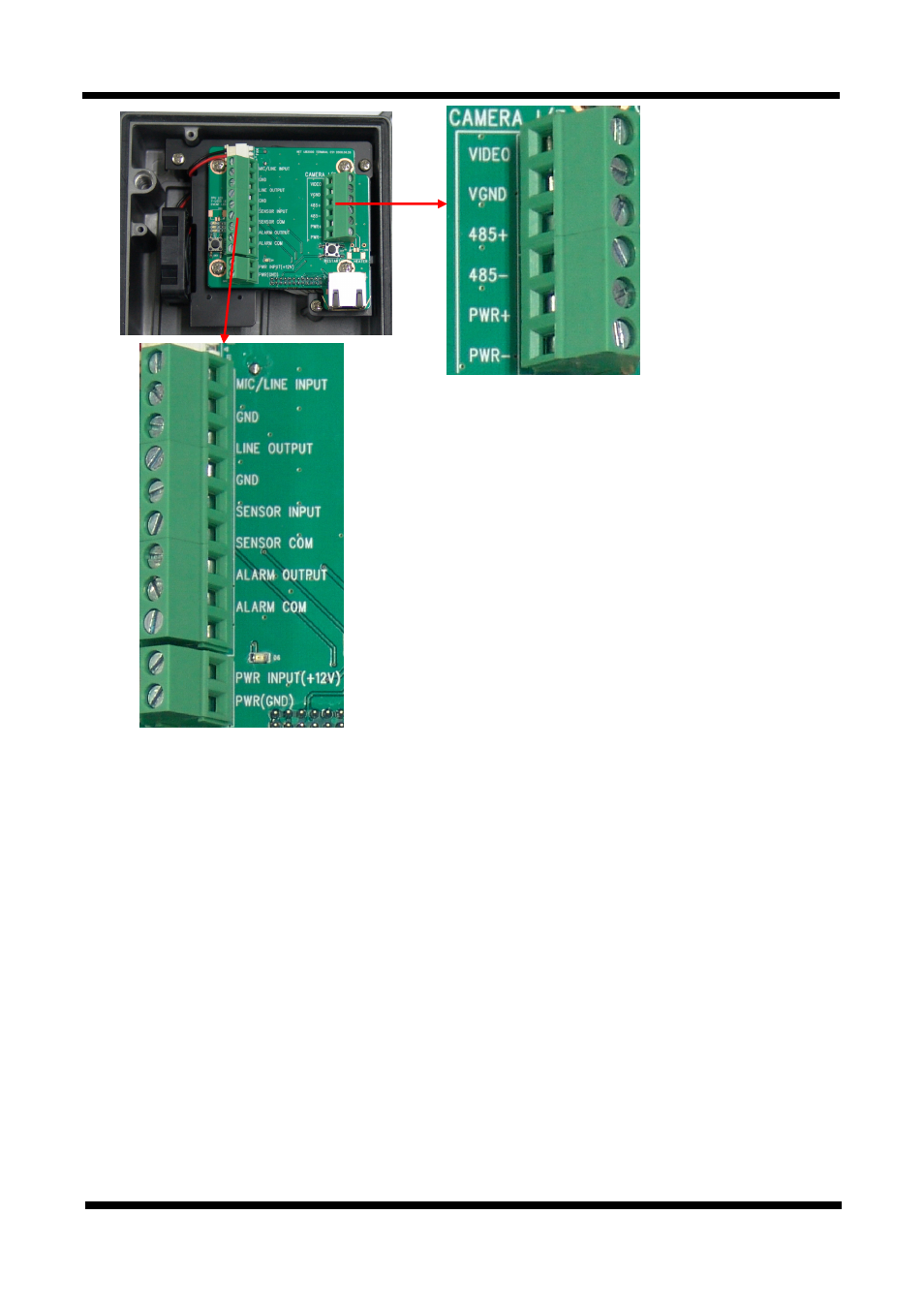

Figure 2-3. Connection Terminal Block
z
MIC/LINE IN : Connects to auxiliary Audio Device or microphone.
z
LINE OUT : Audio signal output to a Power Amplified device or Speaker. This can be used to listen
to the audio signal sent from a remote PC for Bi-directional Audio communication.
z
ALARM IN : This connects to an Alarm Sensor signal. Only one sensor can be connected.
z
ALARM OUT : This connects to an external Alarm device that operates by a relay such as Siren
Lamp or Alarm Light. Only one Alarm device can be connected.
z
Factory Reset Button: Press and hold for more than 3 seconds while power is on to recall factory
default settings
z
Restart Button : Press to restart the network system.
z
NETWORK : This Ethernet terminal connects to 10Mbps or 100Mbps LAN through an RJ-45
connector. Status of network connection is displayed in the LEDs on this Terminal.
LINK : Green light indicates that the network is properly connected.
ACT : Yellow light indicates that the XNET system connected to 100Mbps LAN. This green lamp
will blink if the system receives data.
Audio In(Mic/Line)
Audio GND
Audio Out (Line)
Audio GND
Alarm Sensor In +
Alarm Sensor In -
Alarm Out
Alarm Out
+12Vdc
GND
Video In
GND
Control RS485+
Control RS485-
+12VDC
GND
