XNET Network Weatherproof Camera Installation Manual
6 / 23
2 2 . . 3 3 . . H H a a r r d d w w a a r r e e D D e e s s i i g g n n a a t t i i o o n n

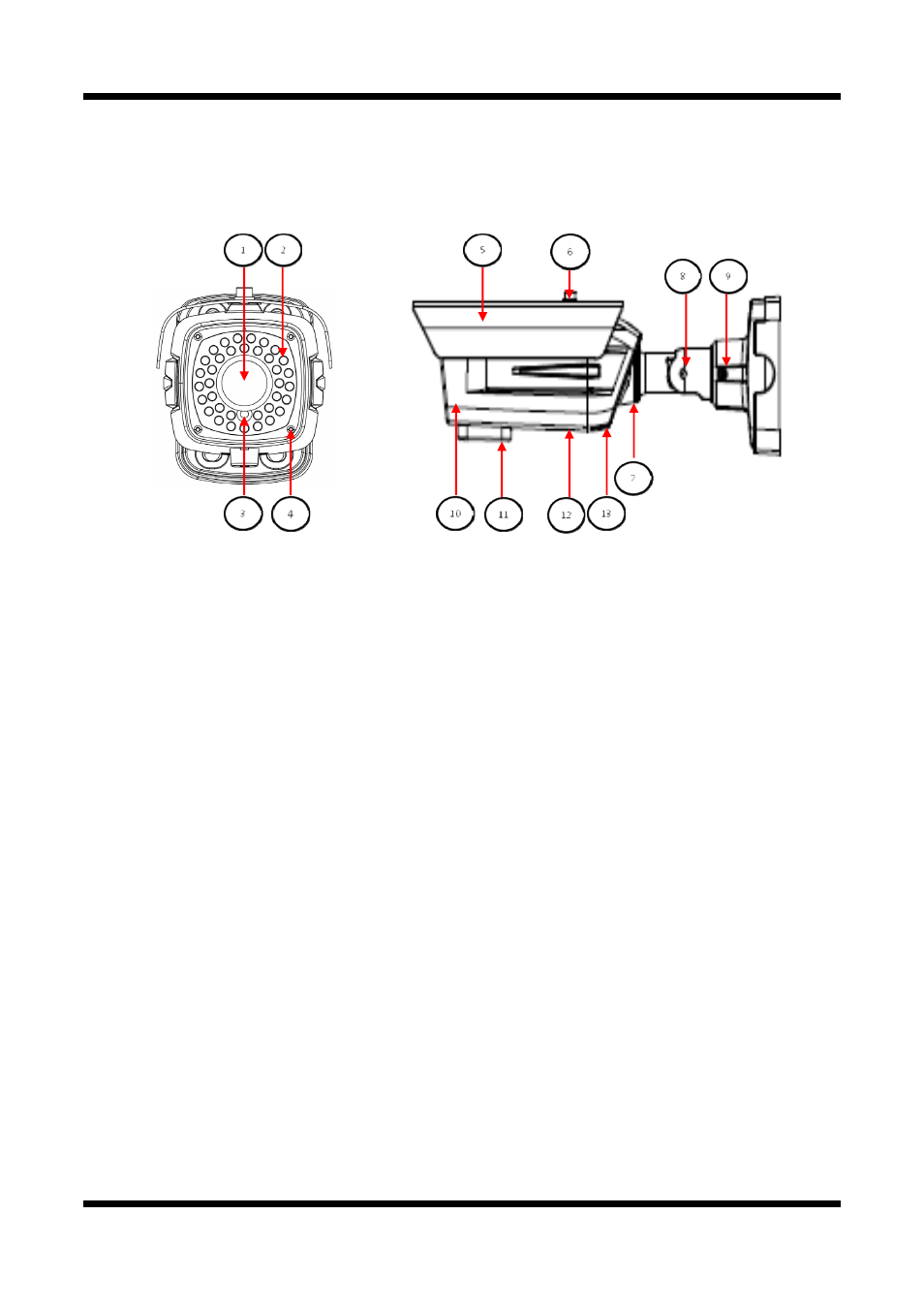

2 2 . . 3 3 . . 1 1 . . S S w w i i t t c c h h a a n n d d C C o o n n t t r r o o l l s s
① Vari-focal Lens : 3-10mm Vari-focal Lens
② IR LED : IR Led light controlled by CDS Sensor.
③ CDS Sensor : senses the light intensity (low light level).
④ Casing Screws (front - 4EA) : attach the front and rear bodies together
⑤ Sunvisor : Shields off the direct sunlight to avoid overheating the camera module
⑥ Sunvisor Screws : fix the Sunvisor on the main body
⑦ Rotate adjusting Bolt: fixes the adjustment of the camera’s rotational angle.
⑧ Tilt adjusting Bolt: fixes the adjustment of the camera’s tilt angle.
⑨ Pan adjusting Bolt: fixes the adjustment of the camera’s pan angle.
⑩ FRONT BODY
⑪ Zoom & Focus lever access: Please refer to 2.3.5. Adjusting Zoom and Focus
⑫ Connecting Terminal: Please refer to 2.3.2. Connecting Terminal
⑬ REAR-BODY
