5. INSTALLATION
(Vandal Dome)

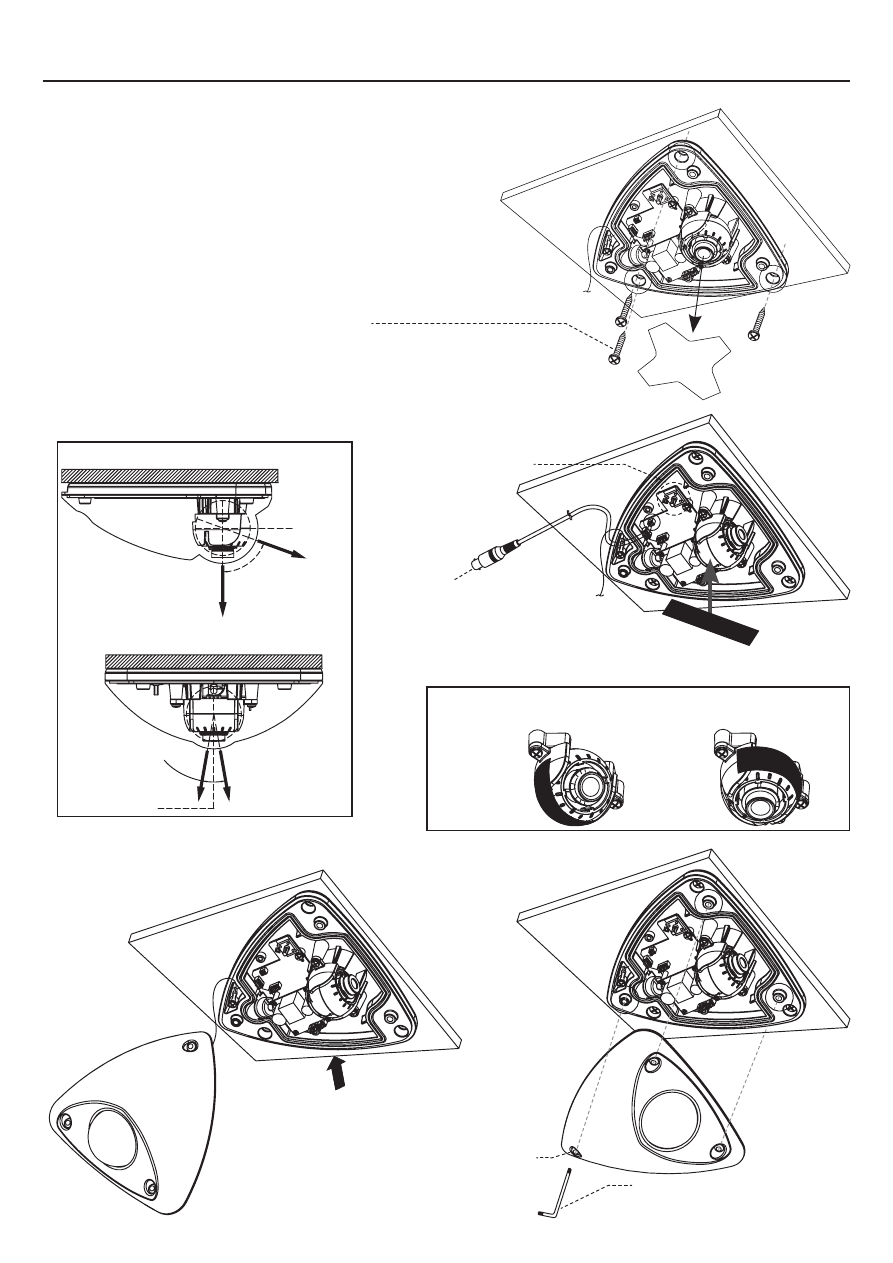

1. Attach the FLAT DOME on the ceiling with using the screws
provided, considering the camera angle required for the
surveillance function.
2. Adjust the LENS ANGLE to the desired
ocation by hand.
3. Please remove the protective film when installing.
4. Connect the VIDEO OUT CABLE and check the video image.
Change the SETTINGS accordingly using the OSD controller.
5. After the LENS SETTING is completed, install the TOP COVER.
10
*CASE RUBBER:
Before assembling the top housing,
Be sure the Rubber correctly positioned.
M4 STAR SCREW
L-WRENCH(T-20)
TILT: +90°
TILT: 0°
TILT: +20°
PAN: ±10°
PAN: 0°
TAPPING SCREW (4 x 20L)-3EA
* FIXED TAPE:
It attached when you install the
product in areas where vibration occurs.
FIXED TAPE attached examples.
TILT 45° when attaching TILT 90° when attaching
SECOND VIDEO CABLE
OSD CONTROLLER
* FIXED TAPE
* Protective film
