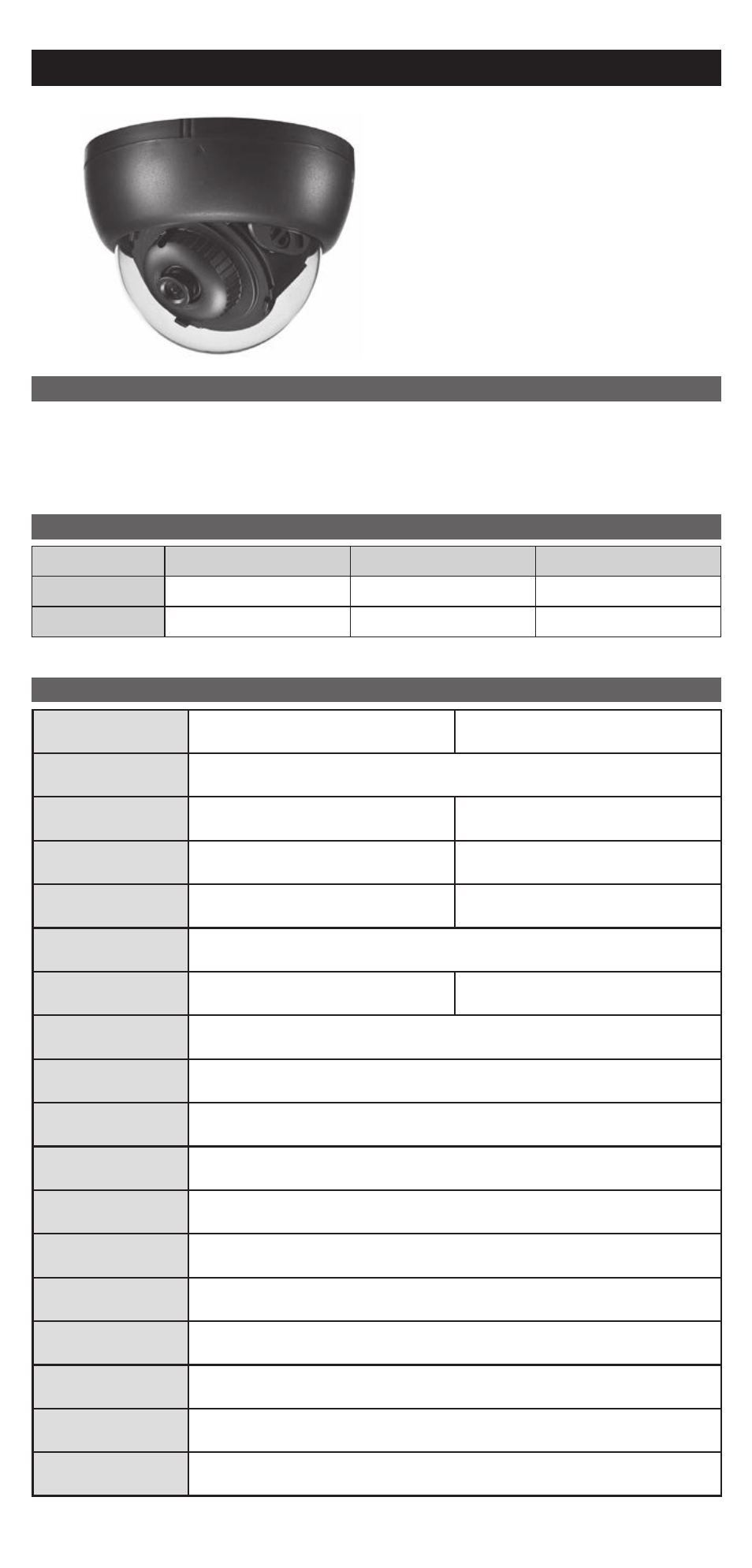

PROFESSIONAL DSP COLOR DOME CAMERA
OPERATION MANUAL
Signal Format
NTSC
PAL
Image Device
SONY 1/3
˝ Exview HAD CCD Ⅱ
Scanning Frequency
H:15.734KHz, V:59.94Hz
H:15.625KHz, V:50Hz
Total Pixels
1020(H) x 508(V)
1020(H) x 596(V)
Effective Pixels
976(H) x 494(V)
976(H) x 582(V)
H.Resolution
7
50TV Lines
Electronic Shutter
1/60 ~ 1/100,000sec
1/50 ~ 1/100,000sec
S/N Ratio
More than 50dB(AGC Off)
Gamma
r =0.45
Sync System
Internal
Scanning System
2 : 1 Interlace
Video Output
1.0 Vp-p Composite 75(Ω)
Board Lens
2.45mm, 2.97mm, 3.6mm, 4.3mm, 6mm, 8mm, 12mm
Operating
Temperature
14°F~122°F(-10°C~+50°C)
Storage
Temperature
-4°F~140°F(-20°C~+60°C)
Min.Illumination
0.05 Lux / F2.0
Operating Humidity
Less than 80%
Power Consumption
DC 12V (±10%) Max 110mA
Specifications and designs are subject to change for improving the functionality of this product without notice.
KEY FEATURES
Thank you for choosing our high quality camera.
Before attempting to connect operate this unit,
please read and follow these instructions.
These CCD video cameras employ a 1/3
"
Sony Exview HAD CCDⅡ solid-state imaging device which
provide superior performance. These cameras can be installed easily in most indoor locations with
a very low current consumption of 110mA or less. These cameras are not only easy to install but
achieve an excellent reliability record.
ACCESSORIES FURNISHED
SPECIFICATIONS
Accessories
Screw
Manual
Mount Guide
Q'ty
2
1
1
Option
-
-
-
M104-D81-001
