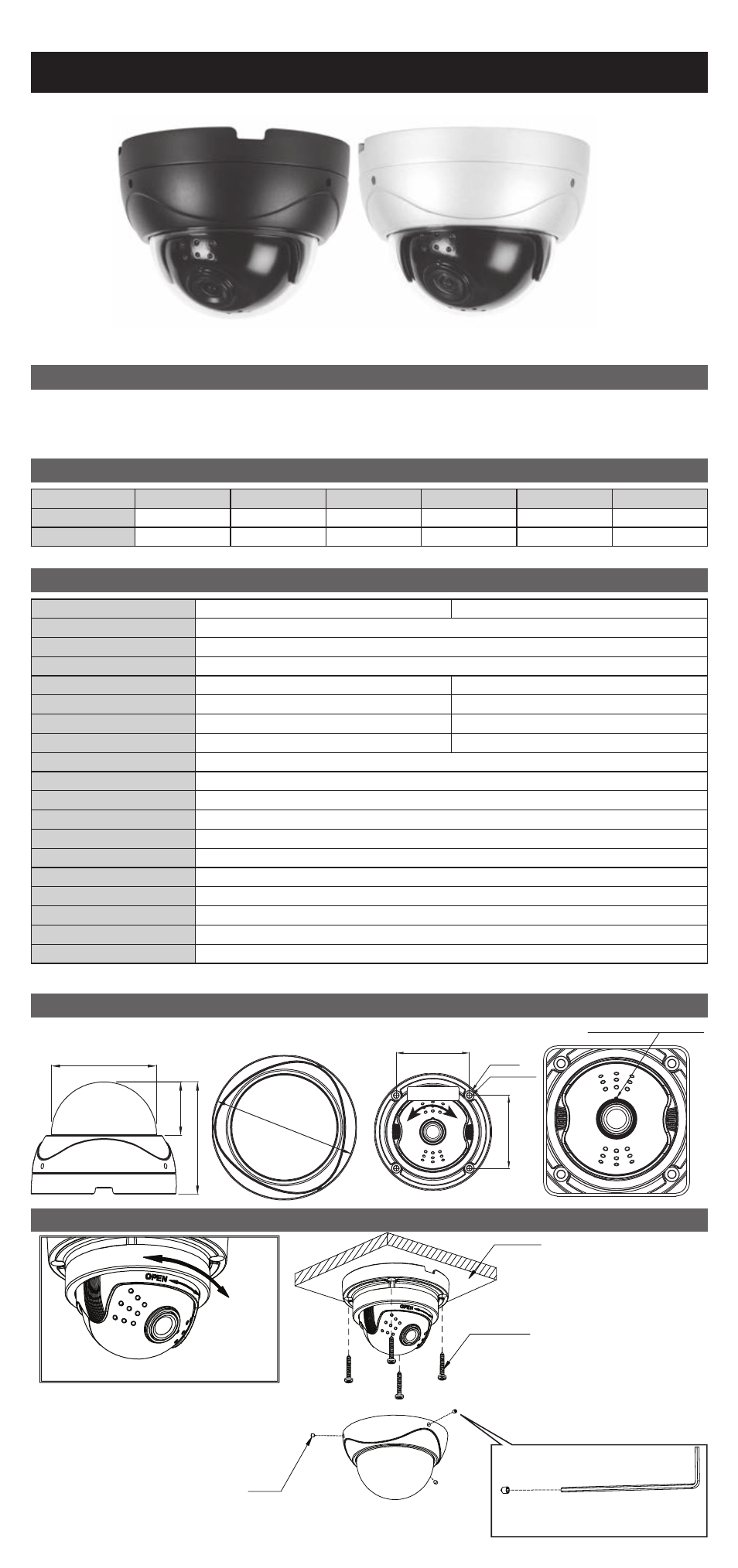

KT&C KPC-VD61NUB - Manual

Mini Vandalproof Dome Camera
OPERATION MANUAL
KEY FEATURES
These cameras are equipped with 1/3" Sony Exview HAD CCDⅡ, Solid-State Imaging Device
which provides superior performance. Its very low current consumption of 110mA or Less and
excellent durability (Vandal proof, IP66) allow easy installation in any location.
ACCESSORIES FURNISHED
Accessories DIY cable Mount screw Set Screw Manual L wrench Mount Guide
Q'ty - 4 3 1 1 1
Option 1 - - - - -
SPECIFICATIONS
Signal Format NTSC PAL
Image Device 1/3" Sony Exview HAD CCDⅡ
Scanning System 2 : 1 Interlace
H.Resolution 750TV Lines
Scanning Frequency H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz
Total Pixels 1020(H) x 508(V) 1020(H) x 596(V)
Effective Pixels 976(H) x 494(H) 976(H) x 582(V)
Electronic Shutter Speed 1/60 - 1/100,000 sec Automatic 1/50 - 1/100,000 sec Automatic
S/N Ratio More than 50dB(AGC Off)
Gamma r =0.45
Min.Illumination 0.05Lux / F2.0
Sync System Internal
Video Output 1.0 Vp-p Composite 75(Ω)
Input Power Source DC 12V ±10%, Less than 110mA
Lens Fitted Board Lens
Operating Temperature -10℃ ~ +50℃
Storage Temperature -20℃ ~ +60℃
Dimensions Ø 82.2 x 63.6 mm
IP rating IP67
Specifications and designs are subject to change for improving the functionality of this product without notice.
M 11 0 - V D 6 1 - 0 0 2
Thank you for choosing our high quality camera.
Before attempting to connect or operate, please read and follow these instructions.
DIMENSIONS
Unit : mm
ш 59.5
30.3
63.6
ш
82.2
4-ш6.8
4-ш4 HOLE
51
360° PAN
51
Indication of screen top
CAMERA MOUNTING POSITION
Turn the lock counterclockwise pushing it up to
loosen it for ball part adjustment (step 1) and
loosen once more to dispart them completely
(step 2)
OPEN
CLOSE
SCREW M2.5 x 3(3ea)
(Fixing Set)
FLAT WALL
TAPPING SCREW 3 X 20(4ea)
(Wall Mounting)
After installing the Camera, Housing
Please tighten the screw to secure.
(Packaged using L- Wrench)
