6. INSTALLATION

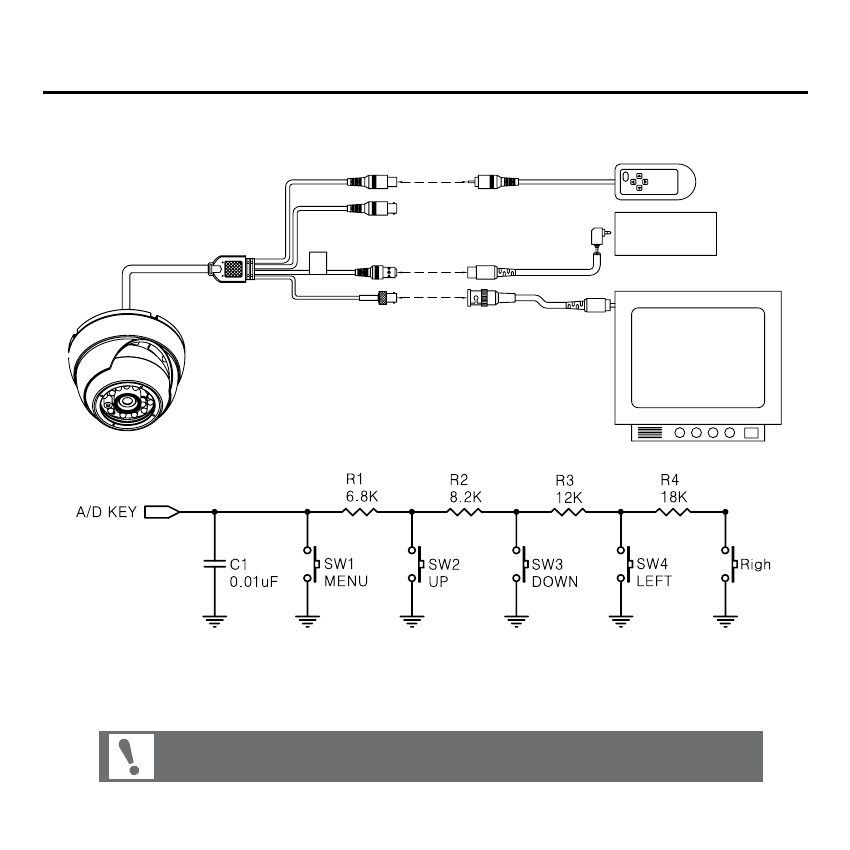

* Remote Control - Circuit Diagram (Option)

Function

SW1: Menu OSD Menu on / off, Selection.

SW2: Up OSD Menu up.

SW3: Down OSD Menu Down.

SW4: Left OSD Menu Left.

SW5: Right OSD Menu Right.

RCA Jack

(OSD Key Jack)

DC12V IN (Black)

BNC Female

(HD-SDI Jack)

HD-SDI IN

Monitor

* Option: Remote Control

(OSD Key)

DC12V

Adapter

BNC Female

(2'nd Video)

When you install the camera, please glue up the end of cable to

keep it stable in order to protect the camera from the humidity problems.

• MONITOR CONNECTION
