Ken Tool 37032-98 Handle Replacement User Manual
Warning, Caution

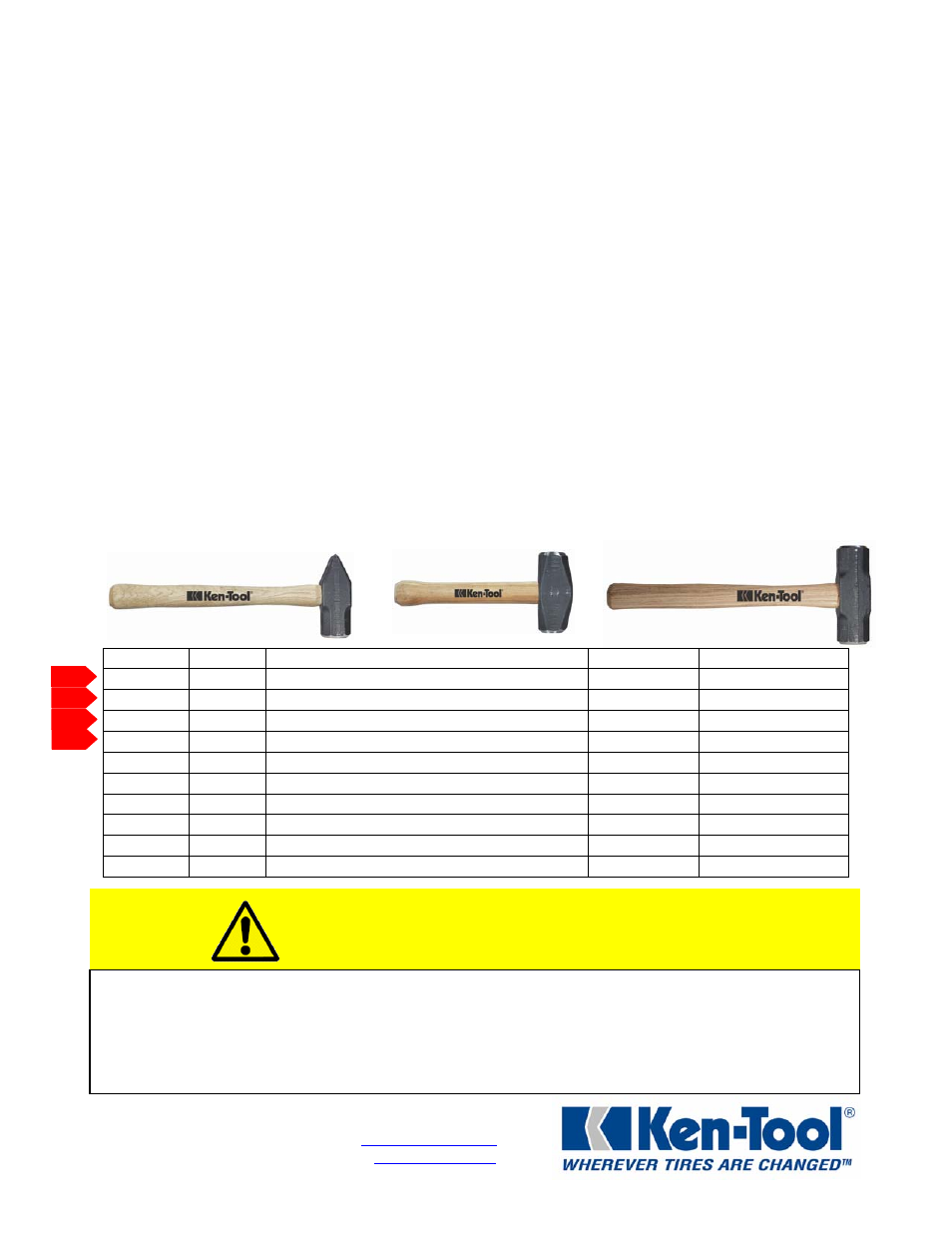

CROSS-PEIN, HAND-DRILLING OR SLEDGE HAMMER
INSTRUCTIONS FOR HANDLE ASSEMBLY
Caution:
Always wear safety goggles.
Handles are not interchangeable. Use only the specified replacement handle for the head being
used. Using the wrong handle can cause the locking system to be damaged and allow the head
to fall off the handle.
1. Cut off old or damaged handle, as close to the hammer as possible, without cutting into the
steel.
2. Drill or chisel out some of the wood from the eye where you just cut the handle off.
3. Use a punch or chisel to drive out the remaining wood and the wedge from the eye.
4. Make sure the eye is clean from all wood chips or debris.
5. Insert the new handle from the same side you cut off the old one and drive it in tight.
6. The handle may need some minor fit adjustment to ensure it seats on the shoulder of the
handle. If this is the case, use a rasp, file or sandpaper to remove some of the wood until the
handle fits tight in the eye and seats completely on the shoulder.
7. Cut off any excess handle that has protruded through the eye and drive in the wedge flush with
the head.
HANDLE
NUMBER FOR
HAMMER
LENGTH
WEIGHT
80H-3H
37012
80H-3, 80H-4 (includes wedges)
10”
1 lb (.45 kg)
85H-3H
37023
84H-2, 84H-4, 85H-3 (includes wedges)
15”
1 lb (.45 kg)
84H-8H
37025
84H-8, 84H-10, 84H-12, 84H-16 (includes wedges)
36”
1.5 lbs (.68 kg)
84H-20
37089
84H-20 (includes wedges)
36”
1.75 lbs (.79 kg)
T11BH
35111
T11B
15” (38 cm)
.75 lbs (.3 kg)
T11HN
35113
T11R, T31, T33R
15” (38 cm)
.75 lbs (.3 kg)
T11CH
35119
T11C, T34, T35, T36
17” (43 cm)
.75 lbs (.3 kg)
T11DH
35127
T11D
17” (43 cm)
.75 lbs (.3 kg)
T11EH
35129
T11E®
30” (76 cm)
1.2 lbs (.5 kg)
T11EHS
35131
T11E®
30” (76 cm)
1.2 lbs (.5 kg)
WARNING
WHEN USING HAND TOOLS
Always
wear safety goggles when using striking or struck tools.
Never
use one hammer to strike another hammer.
Never
use a tool with a loose or damaged handle.
Discard
any striking or struck tool if tool shows dents, cracks, chips or mushrooming.
768 E. North Street, Akron, Ohio 44305 ● Phone: 888-536-8665
● Fax: 800-872-4929 ● e-mail:
Any questions, please visit us at
www.kentool.com
NEW
NEW
NEW
NEW
Part No. 37032-98
