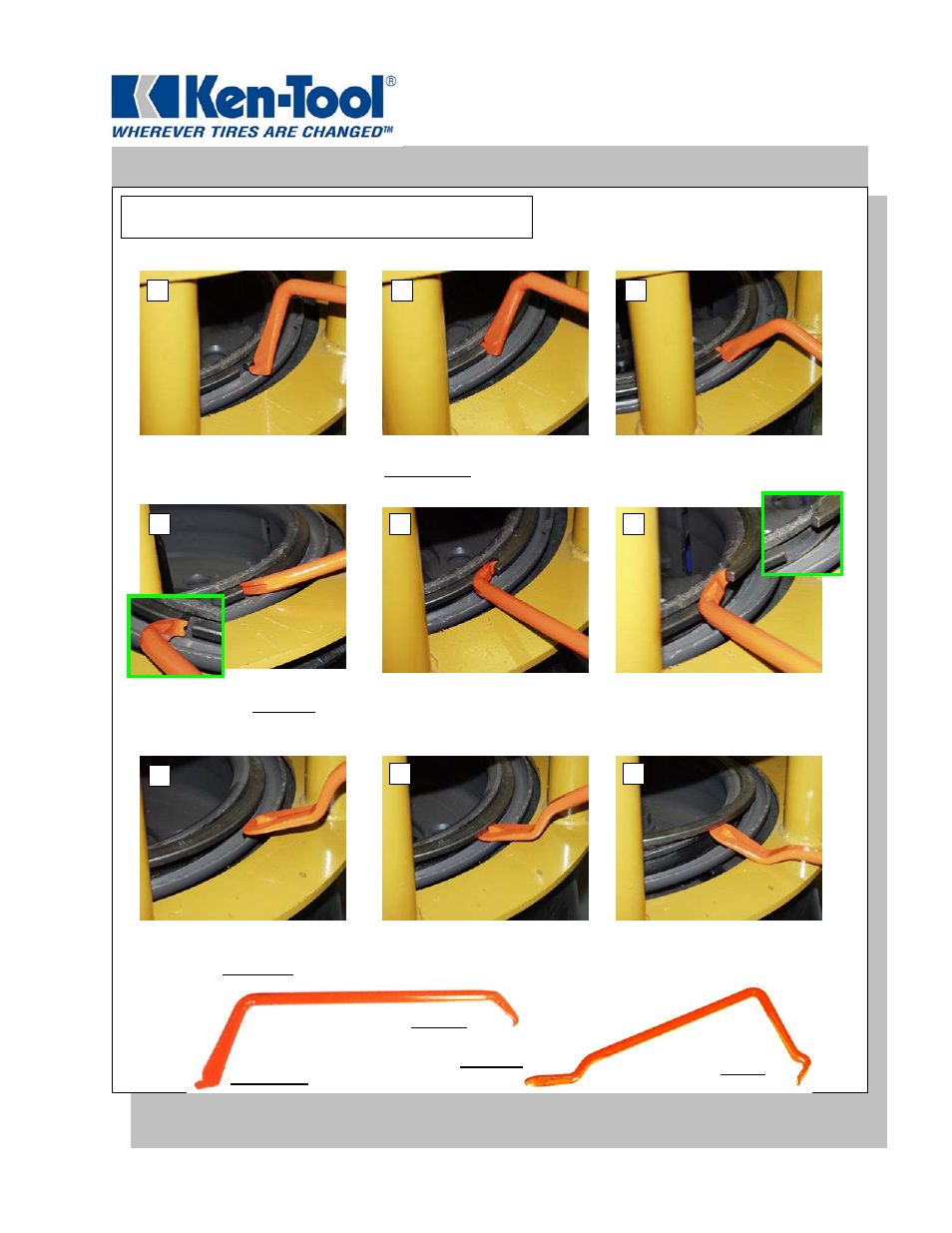

DEMOUNTING INSTRUCTIONS
These tools are designed to remove and
replace lock rings on multi-piece industrial
wheels. Follow Tire and Wheel
Manufacturer’s Instructions
Industrial Wheel Lock Ring Tool Set ™ #32129
Instruction Manual
©2007 Ken-Tool
Part No. 32129-98
1
1 2 3
Locate the gap between the
ends of the split ring.
If the rings are frozen together, follow steps 1-3.
Insert the “toe” of the
SEPARATOR end between the
ends of the split ring. Push down to separate the
solid ring from the split ring.
Once the rings are parted, insert
the “claws” of the PRY-OUT end
behind the slotted end of the split
ring. Pry the slotted end of the split
ring out and up until it is resting
against the wheel flange.
5
Raise the ring until it stays in
place.
6
7 8 9
Push down to pry up, working around the ring until it is demounted.
4
SEPARATOR end
PRY-OUT end
Start demounting the raised end of
the split ring by placing the end of
the tip of the DEMOUNT end under
the split ring.
DEMOUNT end
MOUNT end
Part No:
32131
Part No:
32130
