Benefit from the advantages

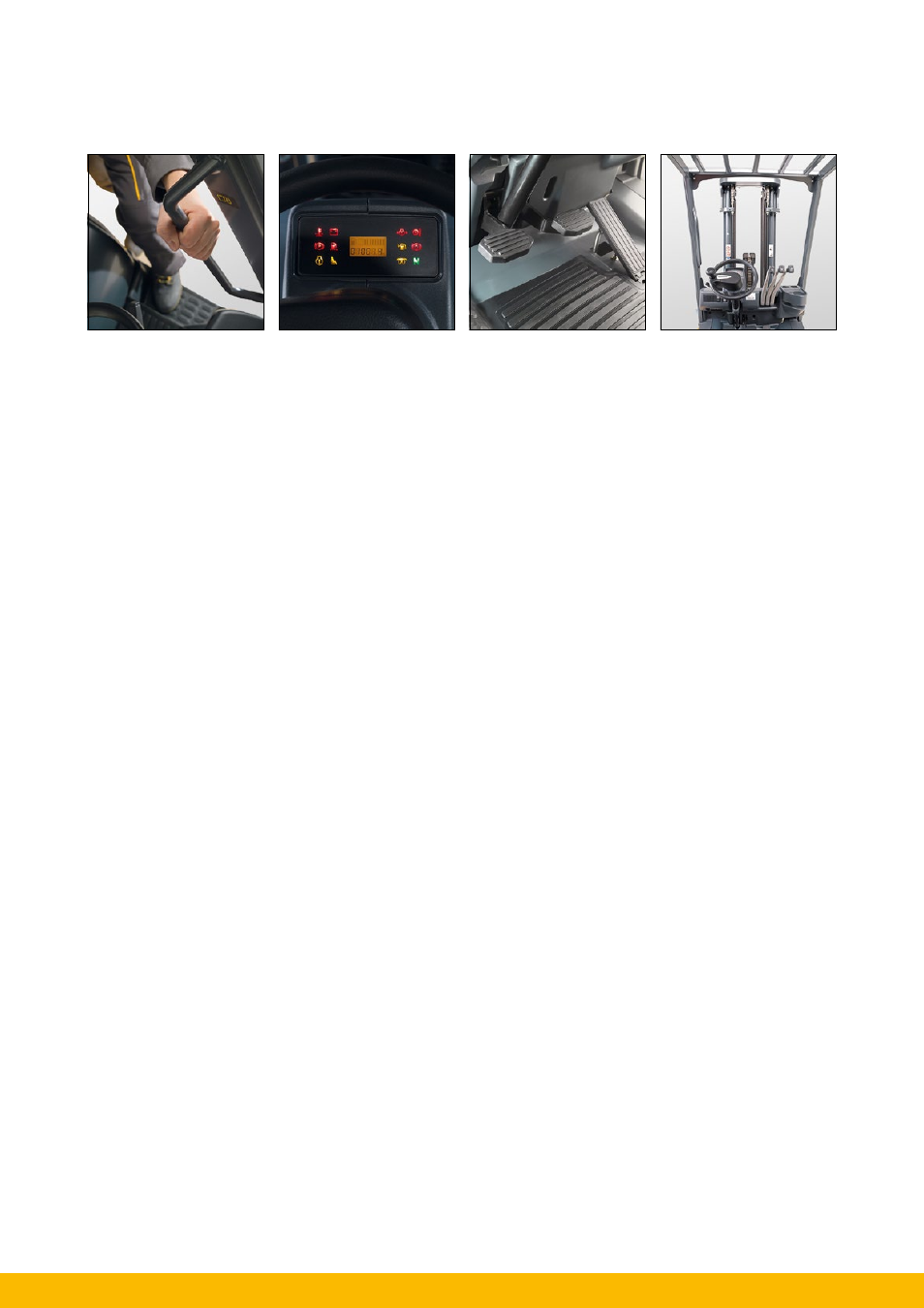

Entry via a deep, wide step. Large,
strong grab handle welded to the
overhead guard. Display in the operator’s field of
vision. Automotive pedal configuration
with non-slip surface. Optimum view of the load thanks
to lift mast design giving ideal
visibility.
Powerful and efficient drive concept
• Tried and tested in harsh construction
environments, industrial engines from
Kubota in diesel and LPG models.
• Sturdy and modern engines. Designed
for durability, high load capacity and
reliability.
• High torque at low engine revs.
• Engine timing via inclined spurtoothed
wheels.
• Engines with low emissions (diesel
engines as per Directive 97/68/ EU
stage 3A).
Ergonomic operator workstation
• The visibility in all directions is class
leading enhancing all round safety.
• Entry via a deep, wide step. The step is
clearly visible from the seated position.
• Large, strong grab handle welded to
the overhead guard.
• Generous knee and legroom thanks
to slim and easily adjustable steering
column.
• Ergonomic steering wheel offset to
the left.
• Effortless operation with hydraulic
power assisted steering.
• Large, level footwell with vibration
absorbing floor mat.
• Sturdy hydraulic levers positioned for
easy use even when wearing gloves.
• Comfortable operators seat with
excellent suspension and numerous
adjustment options.
• Displays and switches for additional
equipment (e.g. lighting and wipers) are
positioned within the operator’s reach
and field of vision.
• Numerous storage options, such as
drink holder, documents clip and a
compartment for every day objects.
• Electrically applied parking brake, easily
operated at the push of a button. Elim-
inating the usual knock on/knock off
lever which restricts access in the knee
and entry area.
• Automotive pedal layout with non-slip
anti vibration surface.
Mast and hydraulics
• Smooth transitions provided by the
mast cushioning system.
• High residual capacity at high lift
heights.
• High visibility due to unique vision
window.
• Flush face mast channels reducing the
lost load centre.
• Hydraulic hoses routed for optimum
visibility.
• Vision windows in the free lift cylinder
cross-member, make it safer to work at
higher racking levels.
• Hydraulic control valve incorporating
load sensing technology. Due to the
lower pressure level, the load sensing
system reduces the energy consump-
tion whilst keeping the unnecessary
pumping losses to a minimum.
Jungheinrich drive axle with
maintenance-free wet-disc brakes
• Axle concept with optimised efficiency
for low fuel consumption.
• The oil immersed wet-disc braking
system is maintenance-free. There are
virtually no service costs (in compar-
ison with conventional drum braking
systems).
• No negative effect on braking due to
environmental influences or service
related downtime due to the enclosed
design.
Uncoupled power train
Improved operator comfort and reduc-
tion of unnecessary vibrations. These are
kept to a minimum with:
• Floating drive unit.
• Independently mounted axle and drive
train via heavy duty coupling.
Enclosed high-performance cooling
system with combi cooler
• Heavy duty combi cooler in full
aluminium design for engine cool-
ant, converter and transmission oil –
without the common plastic manifold
which are susceptible to faults.
• Easy to clean with radiator cores of the
cooling elements for engine coolant,
converter and transmission oil.
• No coolant evaporation due to com-
pletely enclosed pressurised system.
• Reliable operation without a reduction
in performance even at extreme ambi-
ent temperatures.
Easy to maintain and repair
• Optimum access to engine com-
partment due to 90° opening and
L-shaped cover.
• Side sections and floor plate easily de-
tachable without the need for tools.
• Minimal truck downtime thanks to
simple, rapid and cost-effective
maintenance – expert knowledge not
required.
• Use of sturdy, high-quality compo-
nents.
• No truck-specific diagnostic tools or
special software required.
• Large fuel filter with water separator.
• Oil change interval 500 hours.
Reliable, heavy-duty electrical
equipment
• Splash-proof electrics, plug and con-
nections.
• Easily accessible at all times, compact
fuse box on the operators console in
the drivers compartment.
Jungheinrich high-mounted fully
floating axle for high degree of
passive safety
Even during dynamic travel, outstand-
ing driving stability through reduced
pendulum motion is guaranteed by the
high pivot point of the steering axle. The
risk of tip over is minimised by applying
basic physics. Without the additional use
of electronic assistance systems.
