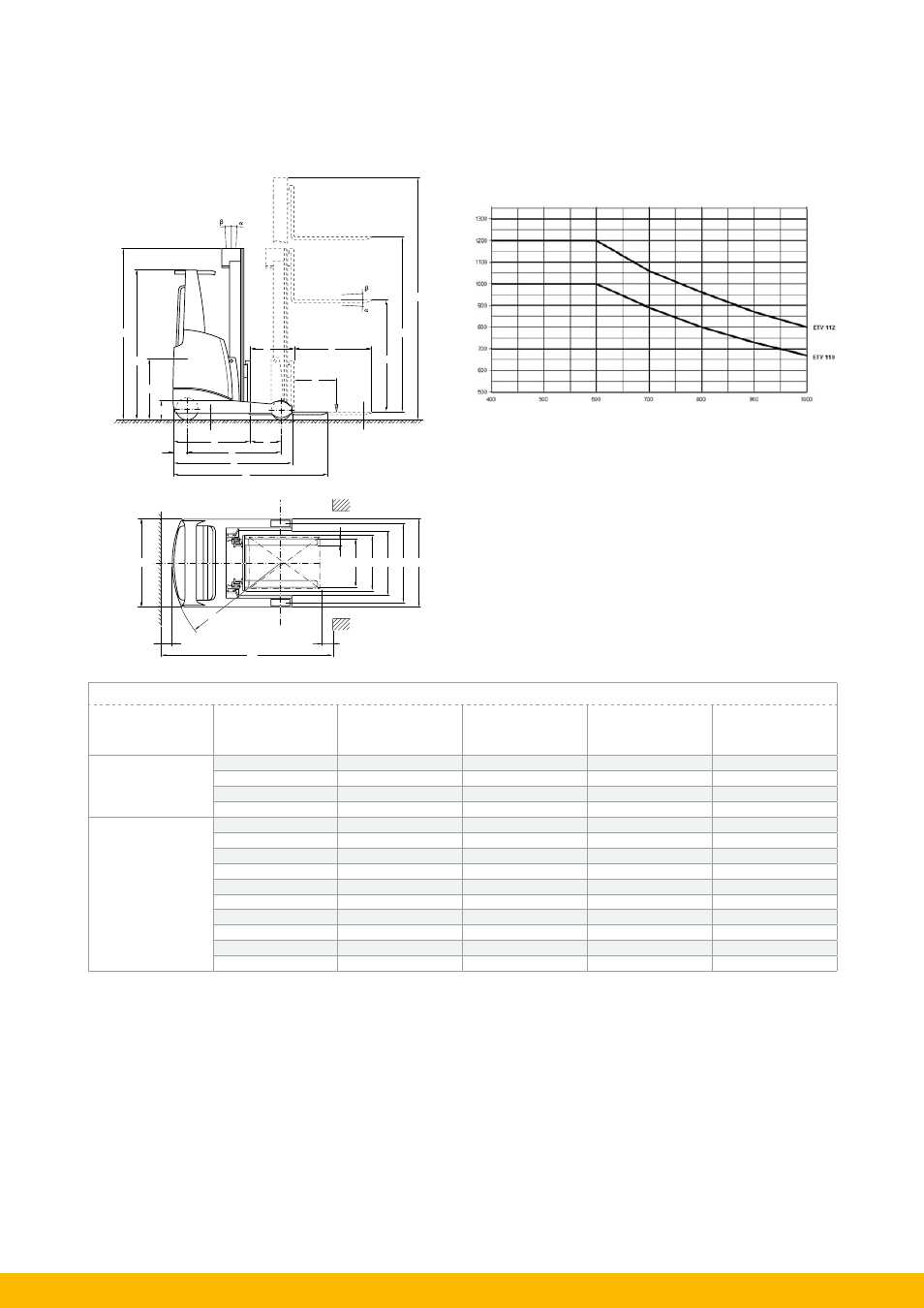

Jungheinrich ETV_110-112 - Manual (Page 2)

ETV 110/112
e
a
2
s
Q
h
1
h
6
h
7
h
8
m
2
l
2
210
l
7
l
1
y
x
c
l
4
l
h
2
h
3
h
4
b
2
b
5
b
3
b
4
b
11
b
1
a
2
A st
W a
Capacity
Load centre distance “c” in mm
Standard mast types ETV 110/112
Lift
h
3
Lowered mast height
h
1
Free lift
h
2
Extended mast height
h
4
Mast tilt forward / back
α/ β
(mm) (mm) (mm) (mm) (°)
Duplex ZT 3090 2050 100 3667 2/5
3390 2200 100 3967 2/5
3590 2300 100 4167 2/5
3790 2400 100 4367 2/5
Triplex DZ 4550 2050 1408 5192 2/5
5000 2200 1558 5642 1/3
5240 2280 1638 5882 1/3
5300 2300 1658 5942 1/3
5600 2400 1758 6242 1/3
5900 2500 1858 6542 1/3
6200 2600 1958 6842 1/3
6500 2700 2058 7142 0.5/2
6800 2800 2158 7442 0.5/2
7100 2900 2258 7742 0.5/2
