B. Mounting to a masonry or other durable surface wall, ceiling or overhang:
a. If mounting to a recessed 4S-type electrical box, using the pre-drilled holes as a
guide, drill four holes using a 3/16” drill bit (not supplied). Ensure the
Alliance-pro Back Box Holes line up. See Figure 4.2
b. Mount the Back Box to the wall or ceiling using the supplied or equivalent
hardware. If mounting to a 4S-type electrical box, use hardware appropriate
for such a mounting. Use the supplied gasket as well as appropriate sealant to
ensure the box remains weatherized.
c. Pull any cabling from the wall/ceiling side into the Back Box either through the
¾” NPT hole on the rear of the Back Box, or through the side mount ¾”NPT
hole. By default the NPT plug is located in the side hole, so if the installation
calls for using the side NPT hole, remove this plug and reinstall it in the rear
NPT hole on the Back Box for added weatherization. To ensure proper
weatherization, the set screw on the side NPT hole will need to be properly
sealed with silicon or equivalent.
d. Go to Step “5” of this installation guide.

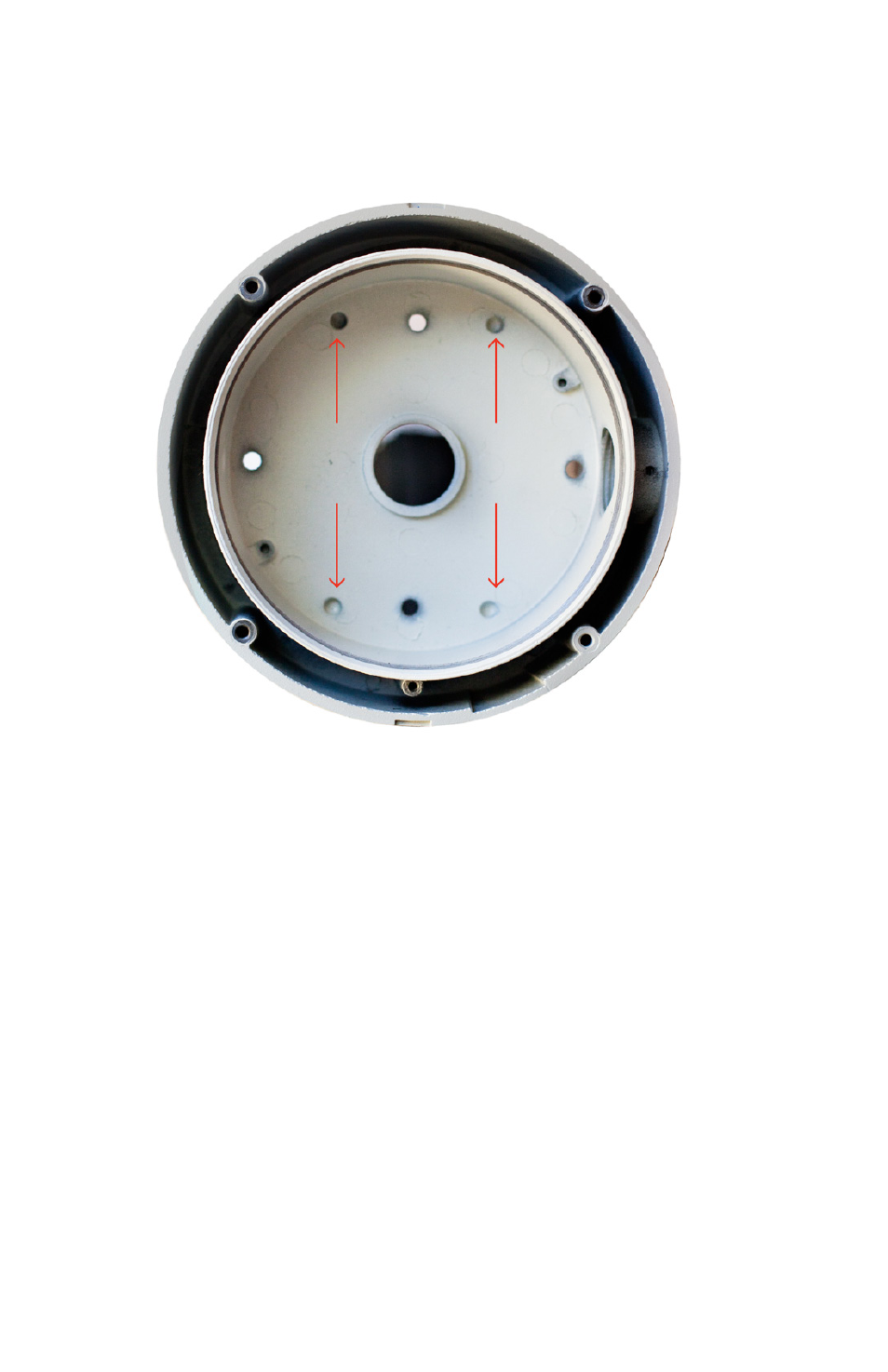

Figure 4.2
