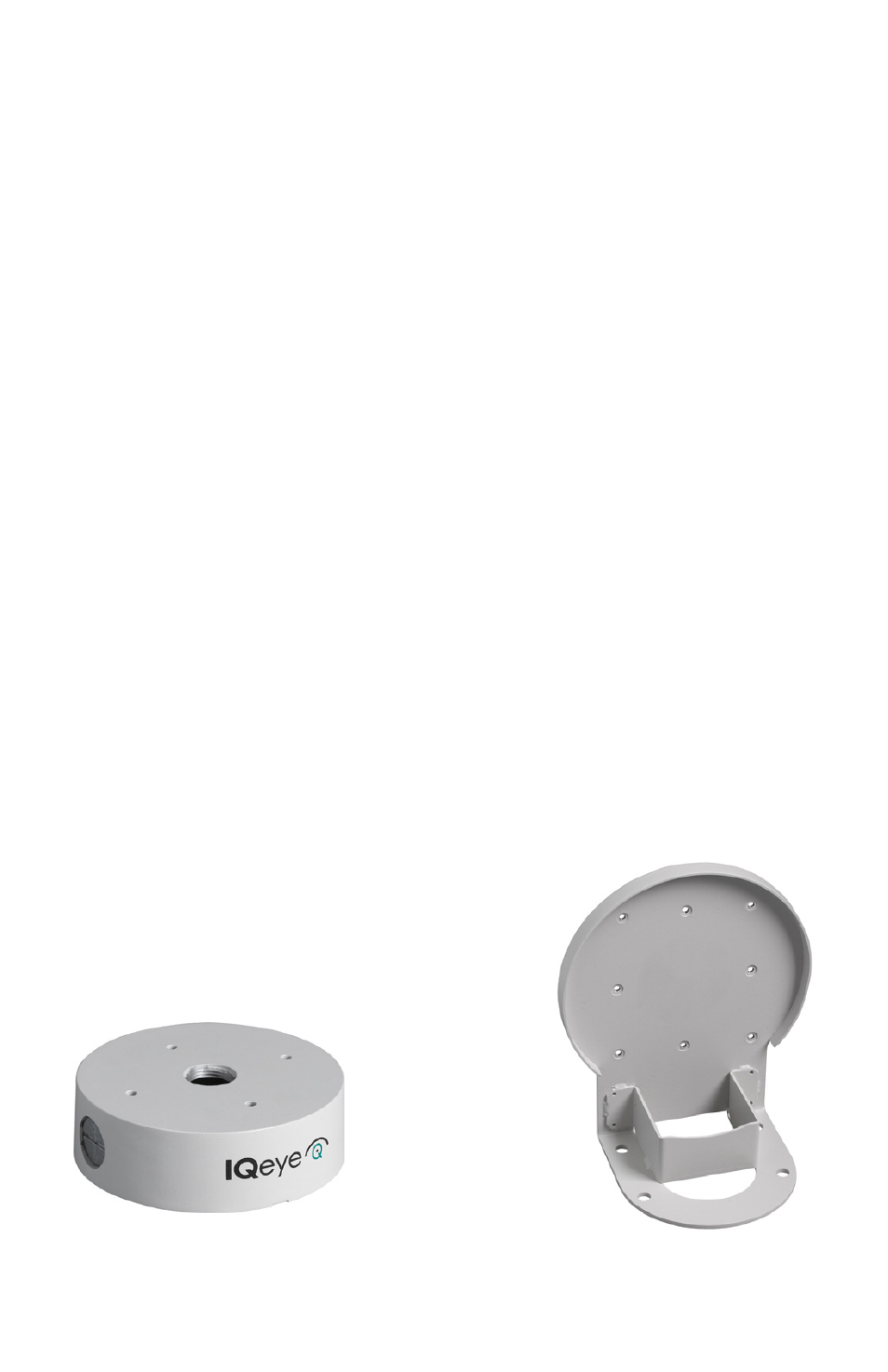

Figure 2.1 Figure 2.2
This Quick Install Guide covers both the Outdoor Back Box for the
Alliance Pro dome camera system as well as the Wall Mount Kit
for the Alliance Pro and Alliance-mx dome camera systems.
1 Service
If the unit needs repair service or parts, the customer should contact
IQinVision for authorization to return, as well as shipping instructions.
IQinVision
33122 Valle Road
San Juan Capistrano, CA 92675-4853
Phone: +1-949-369-8100 or 1-877-850-0805 (toll-free in U.S.)
Fax: +1-949-369-8105
2 Unpacking
Back Box (Figure 2.1)
Your IQeye Alliance-pro Back Box Assembly should include the following:
1. Alliance Back Box
2. ¾” NPT Plug (installed in the side NPT mount of the Alliance Back Box)
3. Weather Gasket
4. Dome Cover Tether Assembly
5. Mounting Hardware
6. Mounting Template
Wall Mount (Figure 2.2)
Your IQeye Alliance Wall Mount Assembly should include the following:
1. Alliance Wall Mount
2. Weather Gasket
3. Mounting Hardware
4. Mounting Template
