3 Description
IQeye Alliance-pro Back Box
The Alliance Outdoor Back Box allows the IQeye Alliance-pro Dome Camera system
to be mounted outdoors or indoors on masonry and other surfaces that require an
electrical box style mount. The Alliance Outdoor Back Box replaces the mounting plate
used for indoor installations. If the Alliance-pro kit includes an indoor mounting plate,
you will not need this plate for installation.
IQeye Alliance Wall Mount
The Alliance Wall Mount allows indoor or outdoor installation of an IQeye Alliance-
pro or Alliance-mx Dome Camera system on a wall surface and allows the dome
to be oriented toward the ground. The Alliance Wall Mount will work with both the
indoor and outdoor versions of the IQeye Alliance-pro or Alliance-mx Dome, but it
is recommended that the outdoor version be used as this provides a cleaner cable
management look for your installation.
4 Installation
NOTE: This manual describes how to install the IQeye Alliance-pro Back Box and Wall Mount
products, and details wall and ceiling mounting options. Installations should be performed by
qualified service personnel only in accordance with local, state and national code(s).
IQeye Alliance-pro Back Box Installation
A. The Alliance-pro Back Box is designed to be used in one of the following configurations:
a. Surface mounted to a masonry or other durable surface wall, ceiling or overhang
WARNING: When installing the Alliance-pro dome camera outdoors, the
camera should not be installed directly to a wall surface and should avoid
exposure to direct sunlight. When mounting outdoors to a wall surface, the
IQA-WM (Alliance Wall Mount) and the IQAE-BOX (Alliance Exterior Vandal
Dome Back Box) are required (Figure 4.1).
b. Mounted to the IQeye Alliance Wall Mount Adapter
c. Used in conjunction with a ¾” threaded pipe (not included) as part of a pendant
mount solution
3

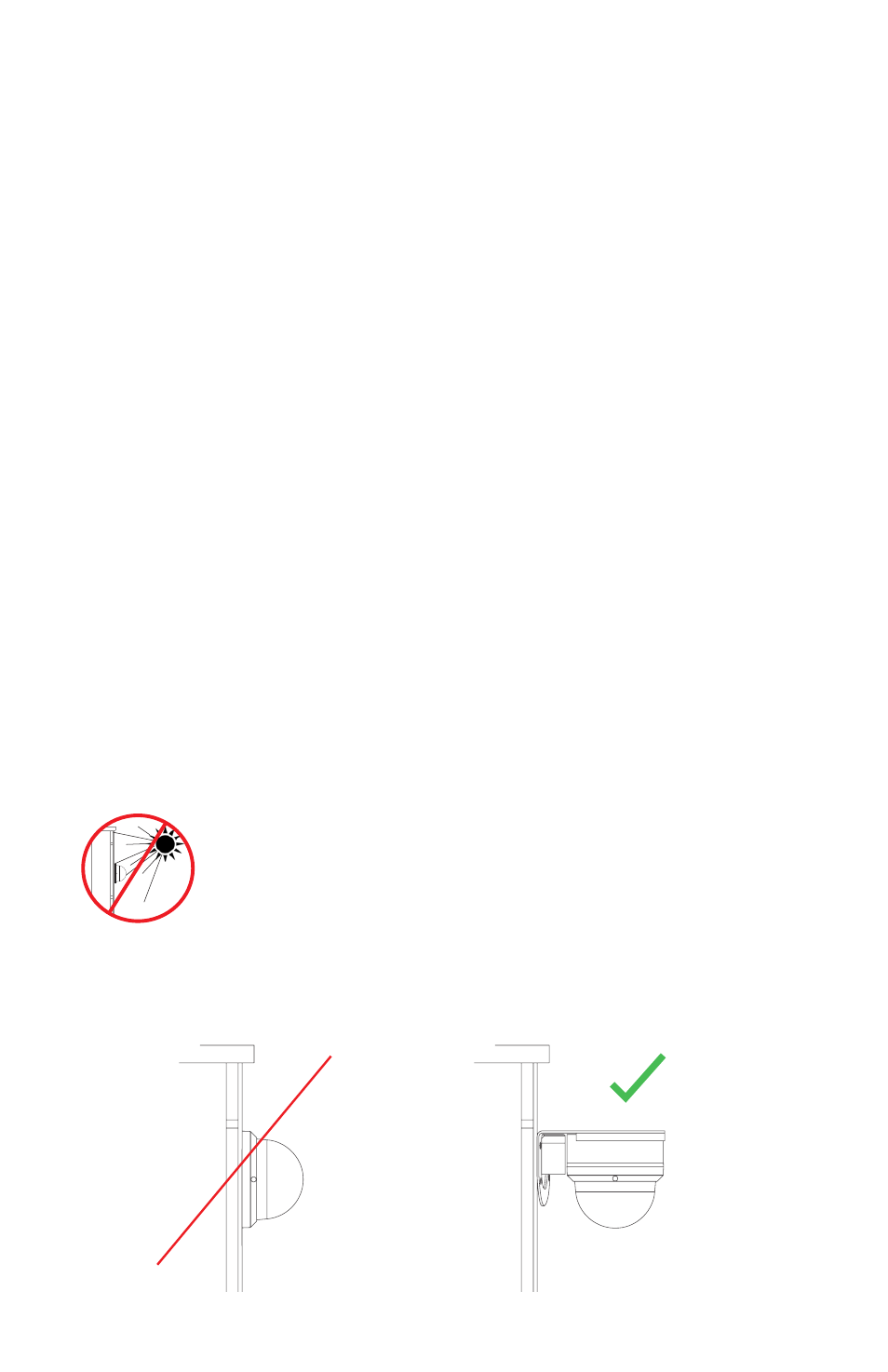

Figure 4.1
