Installation
Page 2-10
Connecting a Hub without an Uplink Port to the Switch
If a hub is not equipped with an uplink port, connection can be made
using either a straight-through cable or a cross-over cable, as outlined
below.

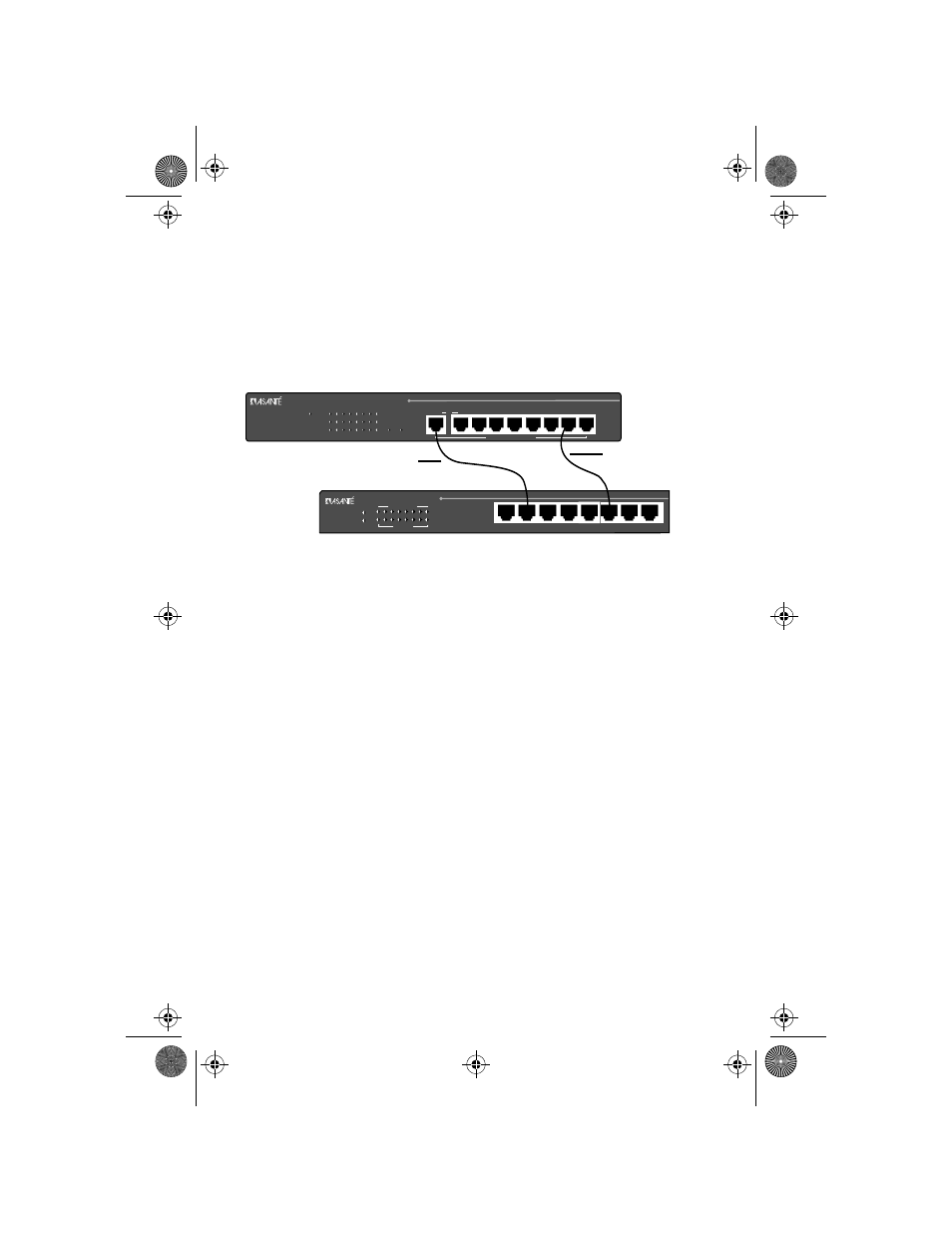

Figure 2-10 Connecting a hub without an uplink port to the Switch
Using Straight-Through Cable
❏ Connect the Switch’s uplink port to any port on the
hub.
Using Cross-over Cable
❏ Connect any of the Switch’s ports (1 – 4 for the
FS4004DS or 1 – 8 for the FS4008DS) to any port on the
hub.
1 2 3 4 5 6 7 8 Uplink or 100Mbps
Link/Act
FDX / Col
Power
FS4008DS FriendlyNet
8-port Dual Speed Ethernet Switch
1 2 3 4 5 6 7 8
Switched 10/100Mbps Ports
Col
6 5
Pwr
4 3 7
Link/Activity
FriendlyNet
8-port Fast Ethernet Hub
Partition
8 2 1
Partition
5 4 3 2 1
FH100TX5
8 7 6
straight-through cable
cross-over
cable
FS4008DS switch
Hub
