Mounting Configurations
Page 2-5
Mounting Configurations
This section describes how to mount the Switch on a desktop or a
wall. It also explains how to install the Switch in an equipment rack.
Desktop Mounting
To mount the Switch on a desktop or shelf:
1
Attach the four rubber feet (supplied) to the bot-
tom of each corner on the Switch. See Figure 2-5

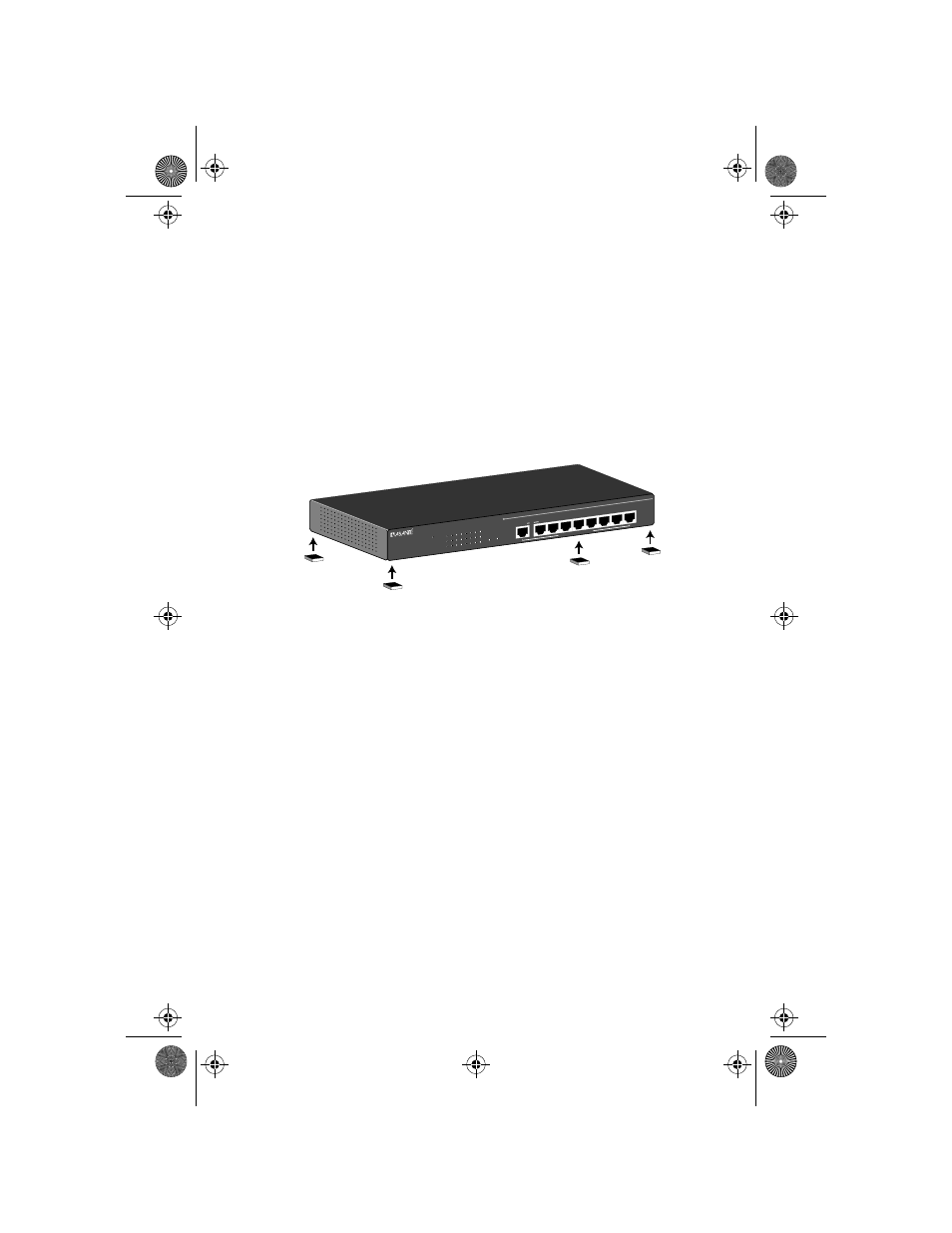

Figure 2-5 Desktop mounting
2
Place the Switch on a flat, stable, horizontal desk-
top or shelf.
Make sure you allow enough ventilation space
between the Switch and surrounding objects.
The Switch is ready for network connections.
1 2 3 4 5 6 7 8
Uplink or
100Mbps
Link/Act Power
FS4008DS
FriendlyNet
8-port Dual Speed Ethernet Switch
1 2 3 4 5 6 7 8
Switched 10/100Mbps P orts
FDX / Col
