4. remove the protective cap on the controller socket and keep it to
seal the connector opening in case the sensor must be removed.
5. Connect the sensor to the controller using the keyed quick-connect
fitting. Hand-tighten (refer to
Figure 4 ).
Note: Connector cables are available in various lengths. Maximum
overall cable length is 40 m (131,23 ft).

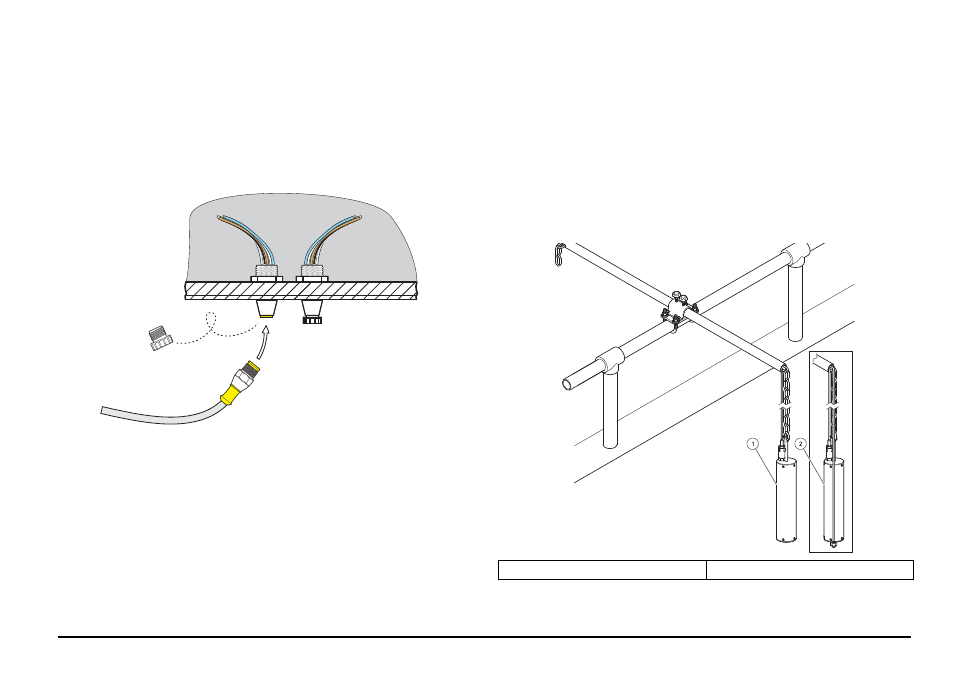

Figure 4 Connect the sensor to the controller
Installation options
The sensor may need to be installed with additional optional accessories
depending on the area of application.
Note: Refer to the documentation supplied with the accessories for
detailed installation instructions.
Installation with the chain mount kit
The FP 360 sc sensor is installed with the chain mount kit in open
channels, shafts and tanks.
Figure 5 FP 360 sc measurement sensor with chain mount kit
1 Sensor without cleaning unit 2 Sensor with cleaning unit
