Section 3
Installation
3.1 Connect sensor cable
1. Connect the polarized socket on the connector cable to the sensor plug (8-pin plug)
(refer to
Figure 3
step 1).
2. Push the safety sleeve on the plug (step 2).
3. Hand-tighten the safety sleeve in position (step 3).

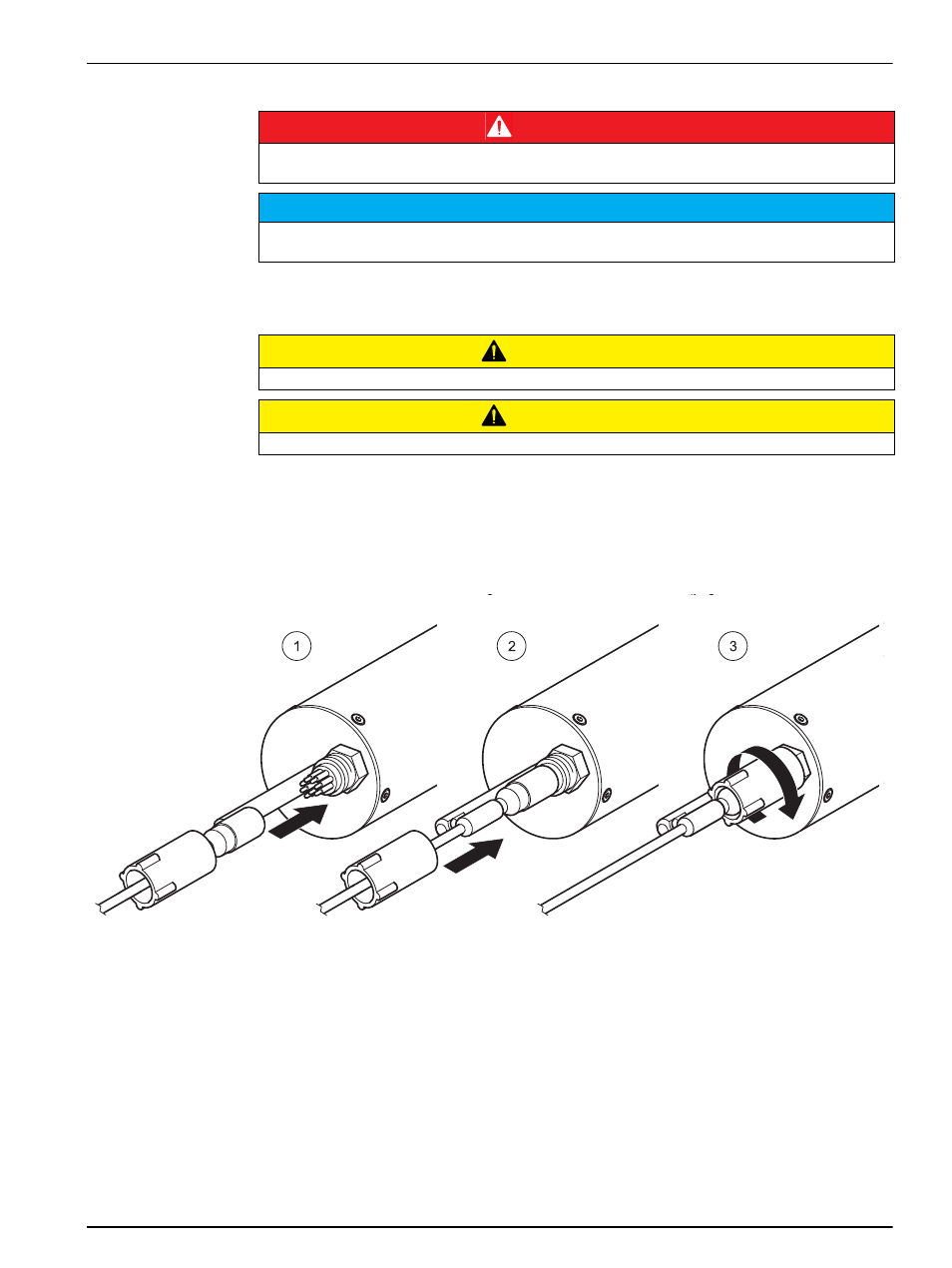

Figure 3 Connect the sensor cable to the sensor
4. Remove the protective cap on the controller socket and keep it to seal the connector
opening in case the sensor must be removed.
5. Connect the sensor to the controller using the keyed quick-connect fitting.
Hand-tighten (refer to
Figure 4
).
Note: Connector cables are available in various lengths (refer to section
overall cable length is 40 m (131,23 ft).
D A N G E R
Personal injury hazard. Only qualified personnel should conduct the tasks described in this section
of the manual.
N O T I C E
If the sensor is not fully inserted, sun protection is recommended in high ambient temperatures
and intense solar radiation to protect against thermal and UV effects.
C A U T I O N
Always put the cables and hoses in a position that does not bend or cause a trip hazard.
C A U T I O N
Before power is applied, refer to the controller operation instructions.
