21
Installation
3.8.3 Voltage selection for alternate voltage operation
Note: The voltage selector switch must be set properly for the line voltage to be used. An improper
setting can result in serious damage to the instrument when power is applied. Refer to
Figure 13 .
The instrument is switched for 115-volt operation when it leaves the factory. To convert
the instrument for 230-volt operation, slide the AC line conversion switch (shown in
Figure 13 ) to the 230V position. The fuses used in this product are 5 mm x 20 mm. The
fuses used are approved for both North American and European use; they do not need to
be changed when voltage is converted.

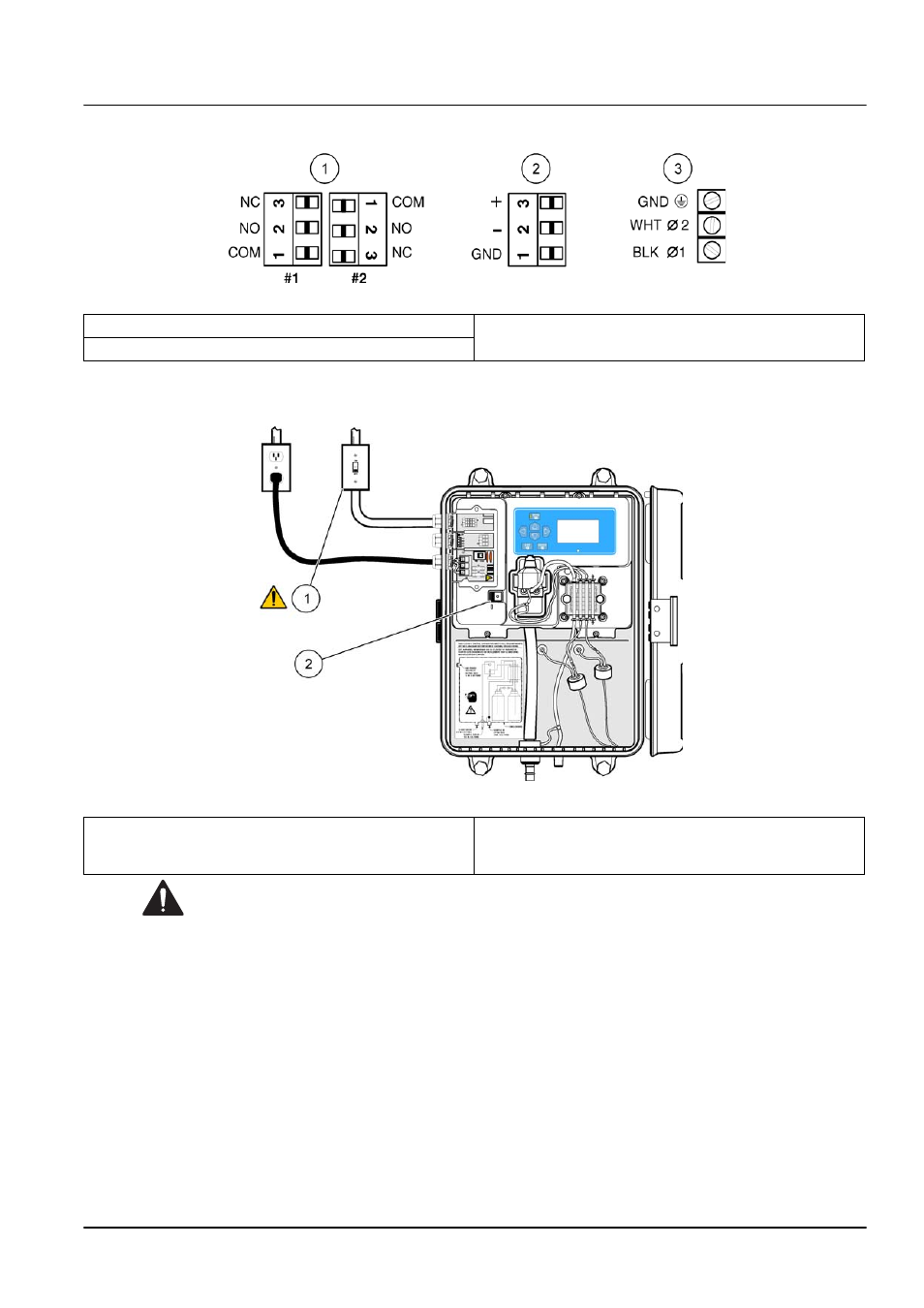

Figure 11 Customer connections to analyzer
1 Relays 3 AC power: 100-115/230 VAC, 50/60 Hz, 90 VA fused at
2.50A
2 Recorder
Figure 12 Power connections
1 A method to remove power from the relays locally must
be available in case of an emergency or for servicing the
instrument. 2 Since the ON/OFF switch can be accessed without the
use of a tool an external switch is not required for
instrument power.
