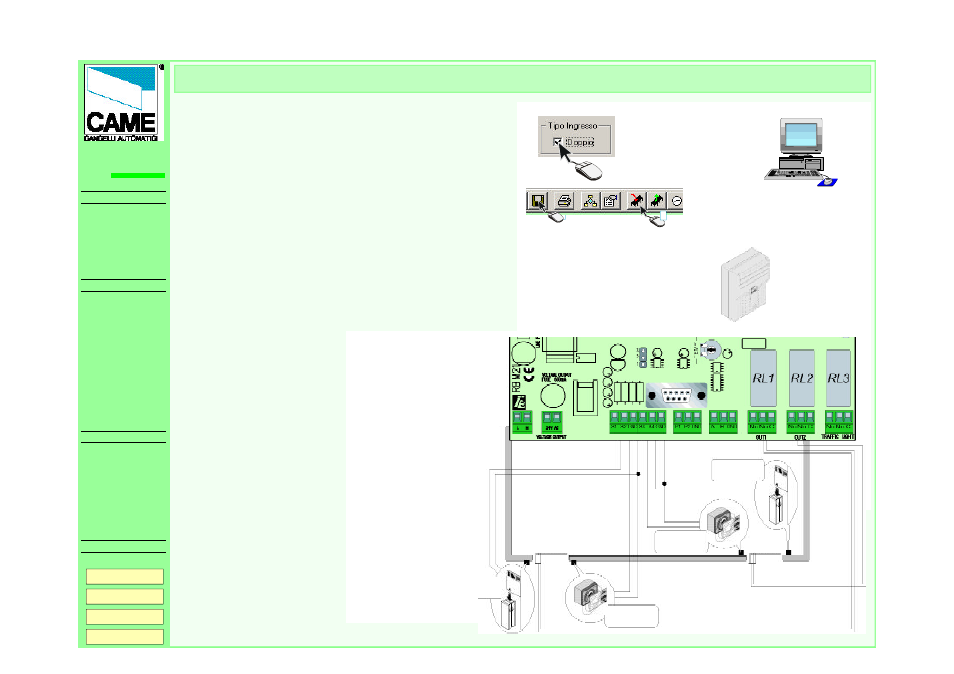

By selecting the Double Entry Type , Rbm21 forces the
sensors connected to terminals S1/S2-Gnd to activate
relay RL1 and then to command the device connected to
OUT1; the same type of forcing involves the sensors
connected to terminals S3/S4-Gnd for RL2 and OUT2.
This selection is best for systems where ENTRANCE and
EXIT are two separate automations and are connected
respectively to OUT 1 and OUT2.
Please note: the activation of the sensors connected to terminals S1-
Gnd and S2-Gnd is always seen by the software as ENTRANCE input
whereas S3-Gnd and S4-Gnd is seen as EXIT input: this allows the
software to handle all the calculations necessary for the
PREPAID , the
AntipassBack ( APB ), the TRAFFIC LIGHT and the STATUS display.
In the example given, we have illustrated a system with the use of
both magnetic cards and proximity cards.
ENTRANCE sensor for OUT1
connected to S1-Gnd
ENTRANCE sensor for OUT1
connected to S2-Gnd
EXIT sensor for OUT2
connected to S3-Gnd
EXIT sensor for OUT2
connected to S4-Gnd
“Double” type of entrance
