TO BEGIN
- Preliminary
operations
- Configure a new
system or modify an
existing one
- Configuration
windows
SYSTEM CONFIGURATION
- System
configuration
window
- Normal type of
entrance
- “Double” type of
entrance
- Time span
- APB time
- Number of users
- Traffic light
- Password
- Relay control
USERS CONFIGURATION
- User configuration
window
- Displaying users
- New user
- Master Card
- Prepaid
- Credit management
- APB
- Outputs
PRINTS
Configurations printout
RBM21
2 1

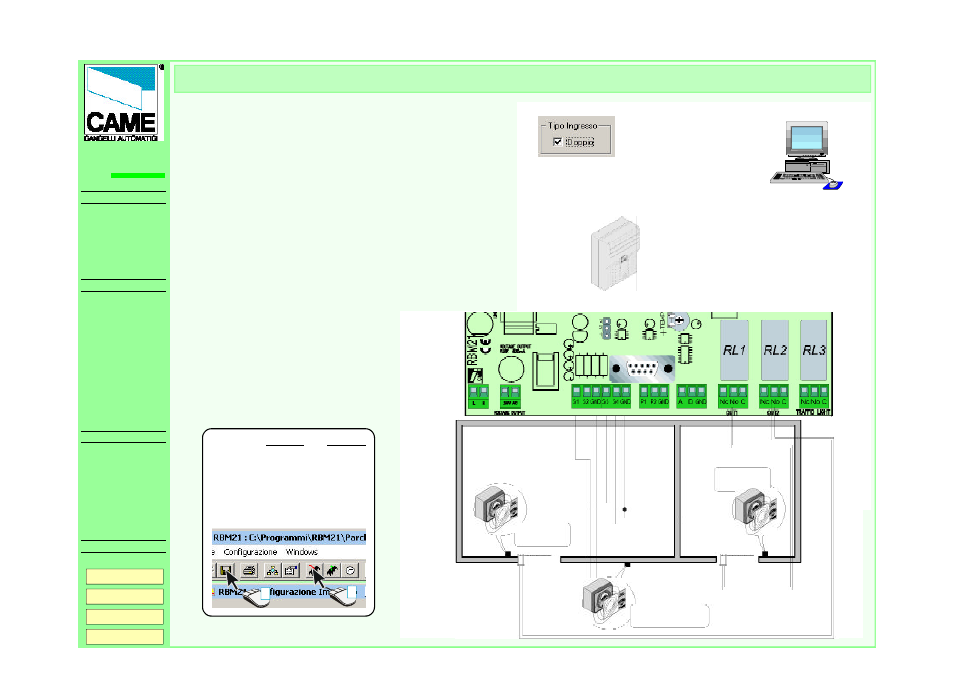

By leaving Entry Type as suggested by Rbm21 ( Double
mode not selected), the sensors connected to terminals
S1/S2-Gnd and S3/S4-Gnd can activate relay RL1, RL2
or both, and the choice must be made when the Card is
saved in
USER CONFIGURATION > OUTPUTS .
With this selection the software determines which devices
to activate with each particular Card.
Please note: the activation of the sensors connected to terminals S1-
Gnd and S2-Gnd are always considered by the software as ENTRANCE
input whereas S3-Gnd and S4-Gnd are seen as EXIT input: this allows
the software make the necessary calculations for the
PREPAID , the
AntipassBack ( APB ), the TRAFFIC LIGHT and the STATUS display.
Remember to save and to write
on Rbm21 for each selection
and/or modification that you
make to this and other areas of
the
SYSTEM CONFIGURATION !
EXIT sensor for
OUT2
connected to S3-
Gnd
EXIT sensor for
OUT1
connected to S4-
Gnd
ENTRANCE sensor for
OUT1/OUT2
connected to
S1-Gnd/S2-Gnd
Normal type of entrance
