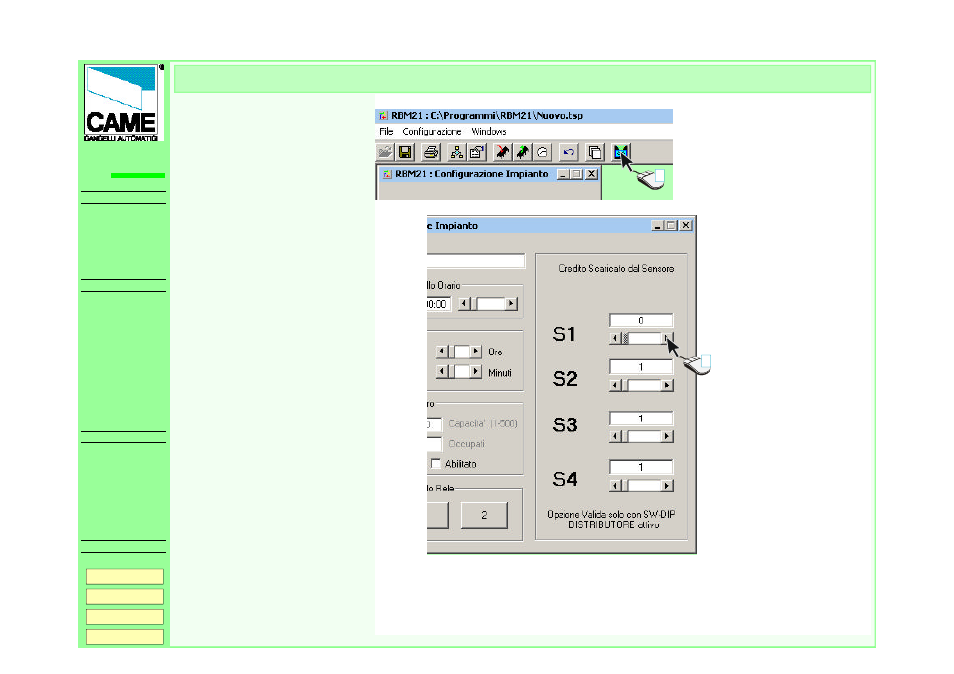

By clicking on the Credits
Management pushbutton, the
system configuration window
enlarges and the token credit
discharge configuration window
appears, which allows us to
associate the discharge of the
credits with sensors that are
linked to the relay as follows:
S1--> OUT 1 relay
S2--> OUT 2 relay
S3-S4-->Parking relay
The dischargeable credits range
from 0 to 100 Works only with
prepaid and positive credits, and
they are set by clicking with the
mouse until reaching the value
desired
.N.B. Setting Dip No. 2 to ON
inhibits the normal operation of
RBM21 including also the parking
function (Dip 21), whereas all the
operations with the master pass
are enabled password
Management credits
