ENGLISH
%,%#42)#
",/#+
! !&

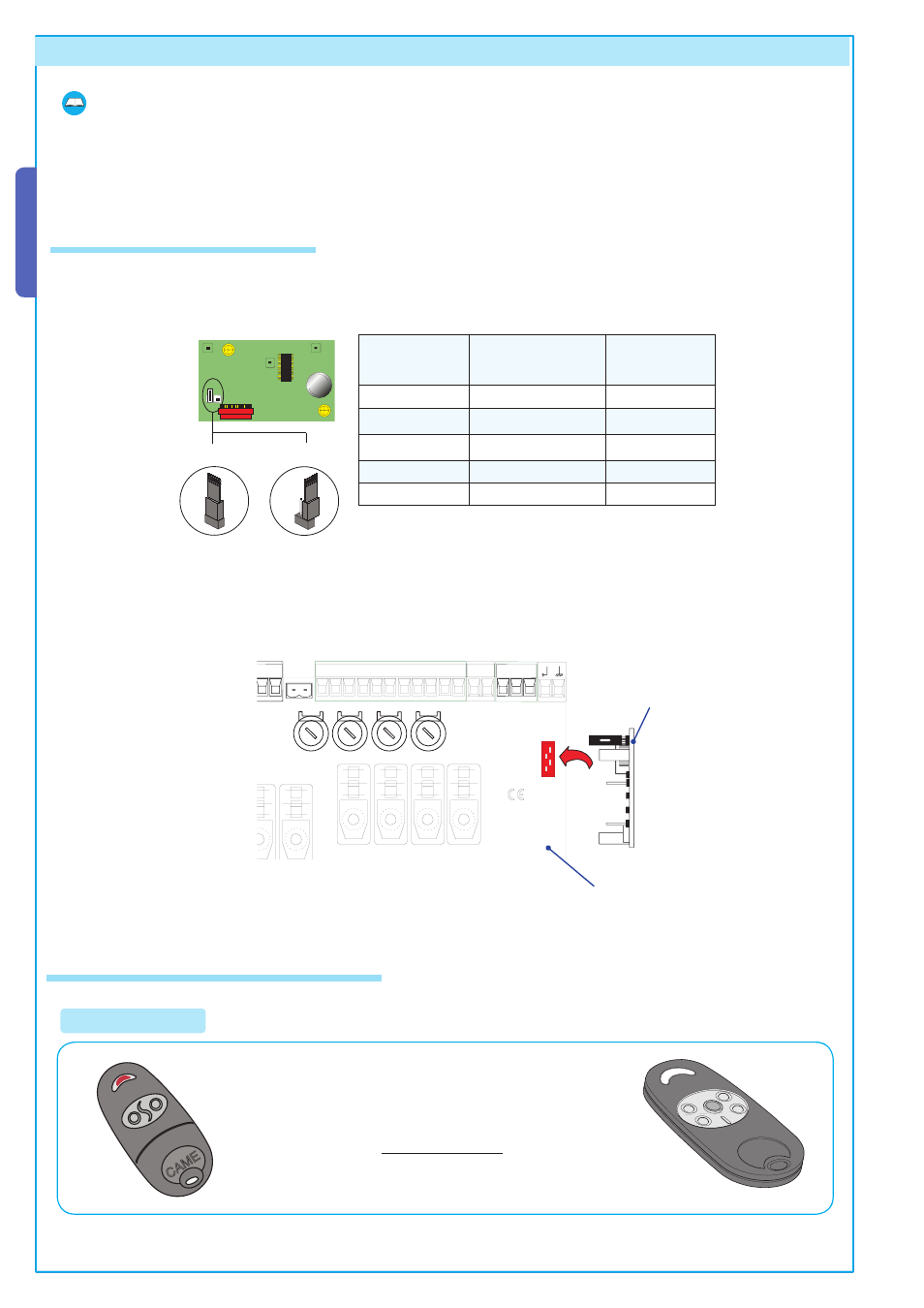

7.1 Prepare the radio board (AF1)
7 Installation procedure of the transmitter for remote control
Read the three steps below before beginning installation procedures:
- prepare the radio board (paragraph 7.1);
- procedure for codifying the transmitter (paragraph 7.2);
- memorizing the code on the command board (paragraph 7.3).
Radio board (AF1)
Motherboard
2) The AF1 board must ALWAYS be inserted into the coupling (ref. point 5, page 8) when the power is off because the mother-
board only recognises it when it is powered.
1) On AM transmitters operating at 433.92 MHz (TOP and TAM series), position the jumper connection on circuit card AF43S
as shown on the sheet.
Frequency/MHz Radiofrequecy board Transmitter
FM 26.995 AF130 TFM
FM 30.900 AF150 TFM
AM 433.92 AF43S / AF43SM TAM / TOP
AM 433.92 AF43SR ATOMO
AM 40.685 AF40 TOUCH
TOP TAM
7.2 Procedure for codifying the transmitter
SERIE ATOMO
CAME
see instruction sheet inside the pack of
AF43SR circuit card
AT01 - AT02 - AT04
