21

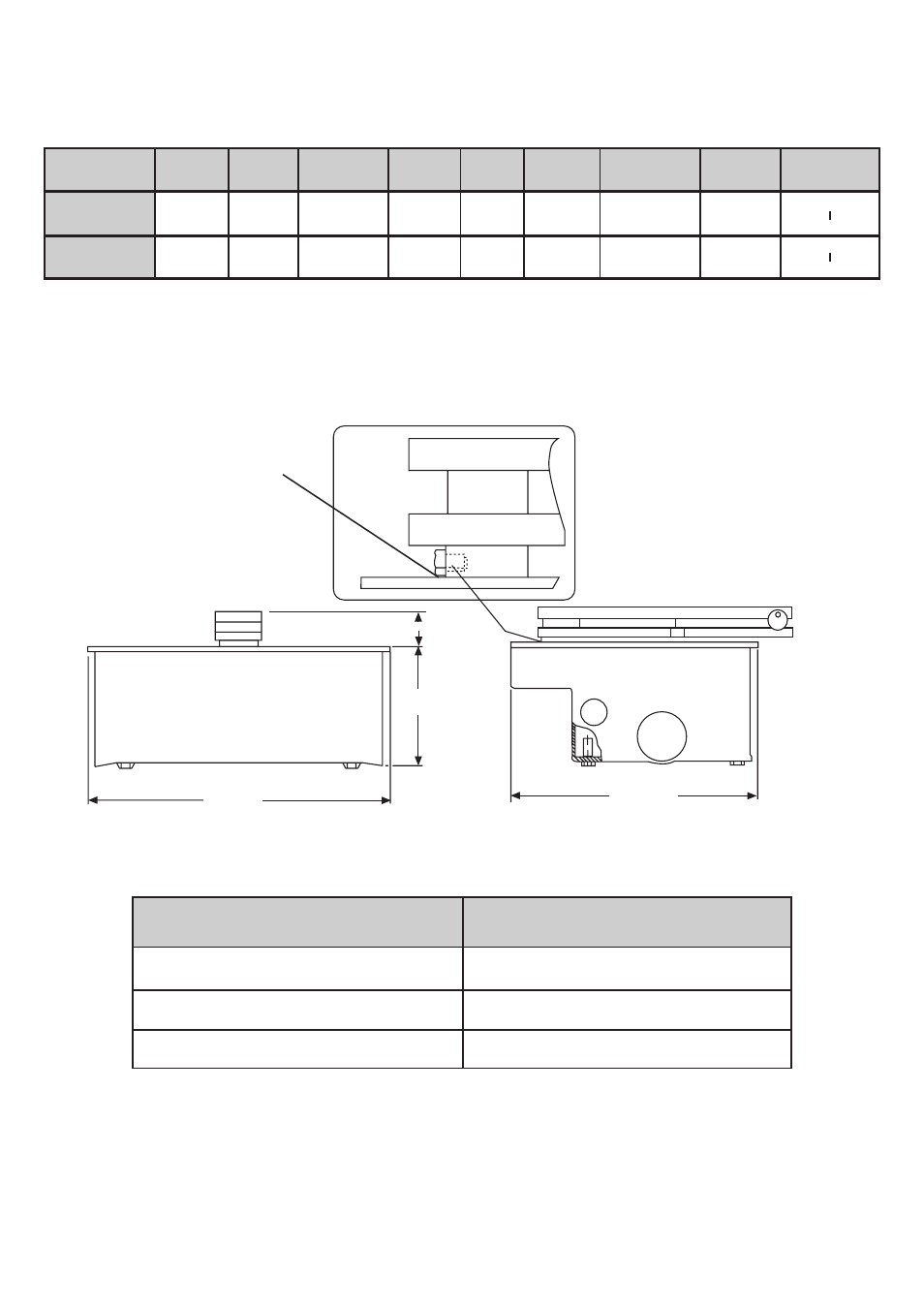

5. TECHNICAL INFORMATION
5.1 - Technical Specification
* Can be adjusted using CAME control panels
GEARMOTOR WEIGHT POWER CURRENT POWER DUTY MAX. REDUCTION TRAVEL CAPACITOR
SUPPLY CICLE TORQUE RATIO TIME
FROG A 11 Kg 230V a.c 1,9 A 200 W 30% * 320 Nm 1/1152 18 sec. 16 uF
FROG AV 11 Kg 230V a.c 2,5 A 300 W 30% * 240 Nm 1/1152 9 sec. 20 uF
60mm 60mm
160mm
405mm
330mm
5.2 - Casing Dimensions
5.3 - Operating Limits
WIDTH OF GATE WEIGHT OF GATE
2.00 MTS 800 Kg
2.50 MTS 600 Kg
*3.50 MTS 400 Kg
* AN ELECTRIC LOCK IS SUGGESTED WHEN THE GATE WING IS WIDER
THAN 3.5M
BOLT FOR REMOVAL
& INSERTION OF M6
GREASE NIPPLE
(NOT SUPPLIED)
Fig 24
