STAGE 3
COMMISSIONING THE CONTROL PANEL
3.1 - Initial Wiring & Control Panel Setup
13
1. CONNECT POWER TERMINALS L1 - L2
AND A SUITABLE EARTH (L2 BEING LIVE!)
2. SELECT THE MOTOR POWER SETTING ON
THE TRANSFORMER TO LEVEL 1 FOR
COMMISSIONING

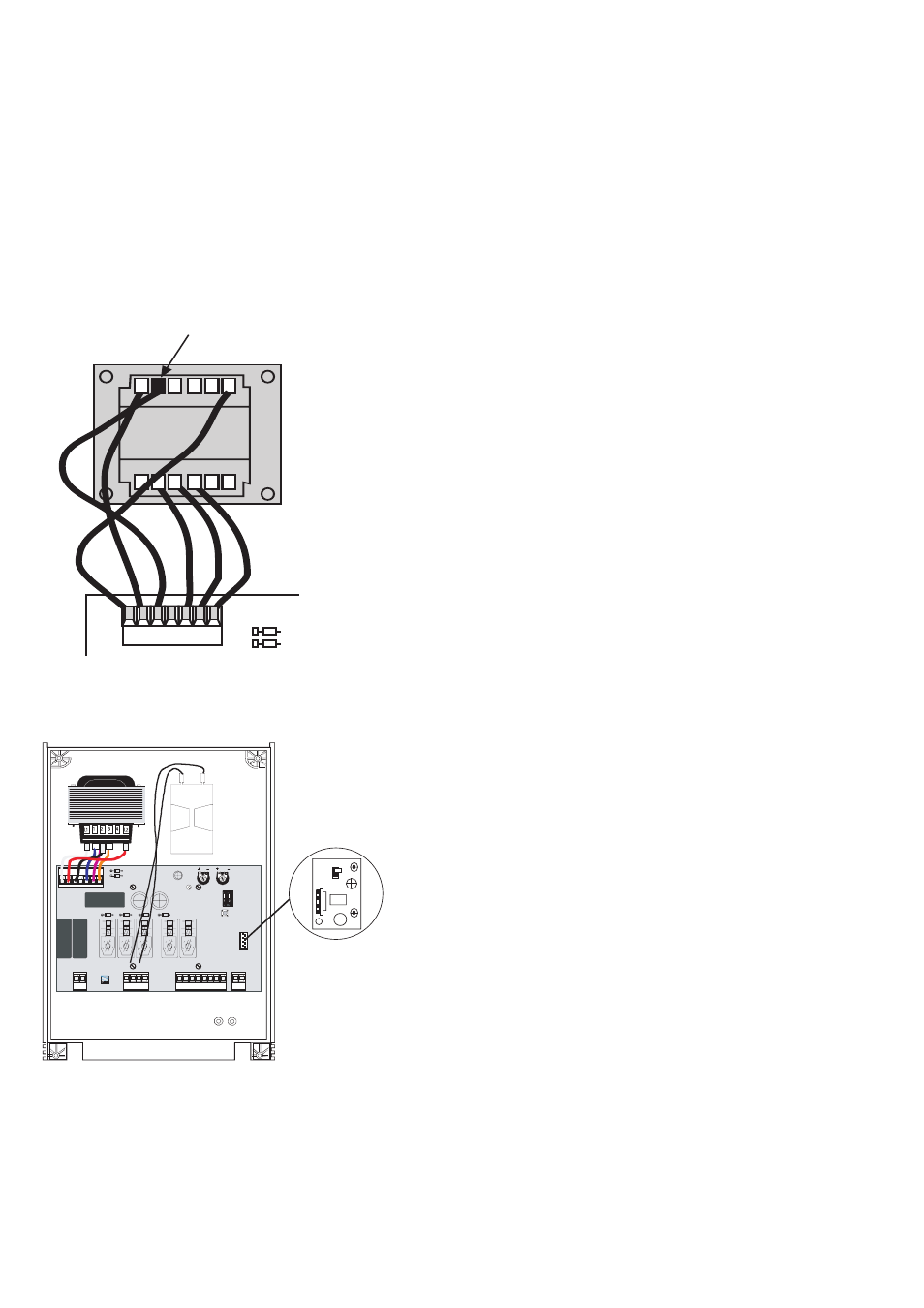

Fig 12
3. INSERT THE ‘START-UP’ CAPACITOR INTO
THE CONTROL PANEL. THE TWO BLACK
WIRES SHOULD BE CONNECTED TO THE
CAPACITOR.
4. ENSURE THAT THE MOTORS ARE
ADEQUATELY EARTHED
ZA4
Fig 13
