Hydrotech DLR-4M_7M Ultraviolet Water Disinfection Unit - Manual (Page 17)

O & M Manual DLR-M, 4-7
08/05 – Rev. 6 17

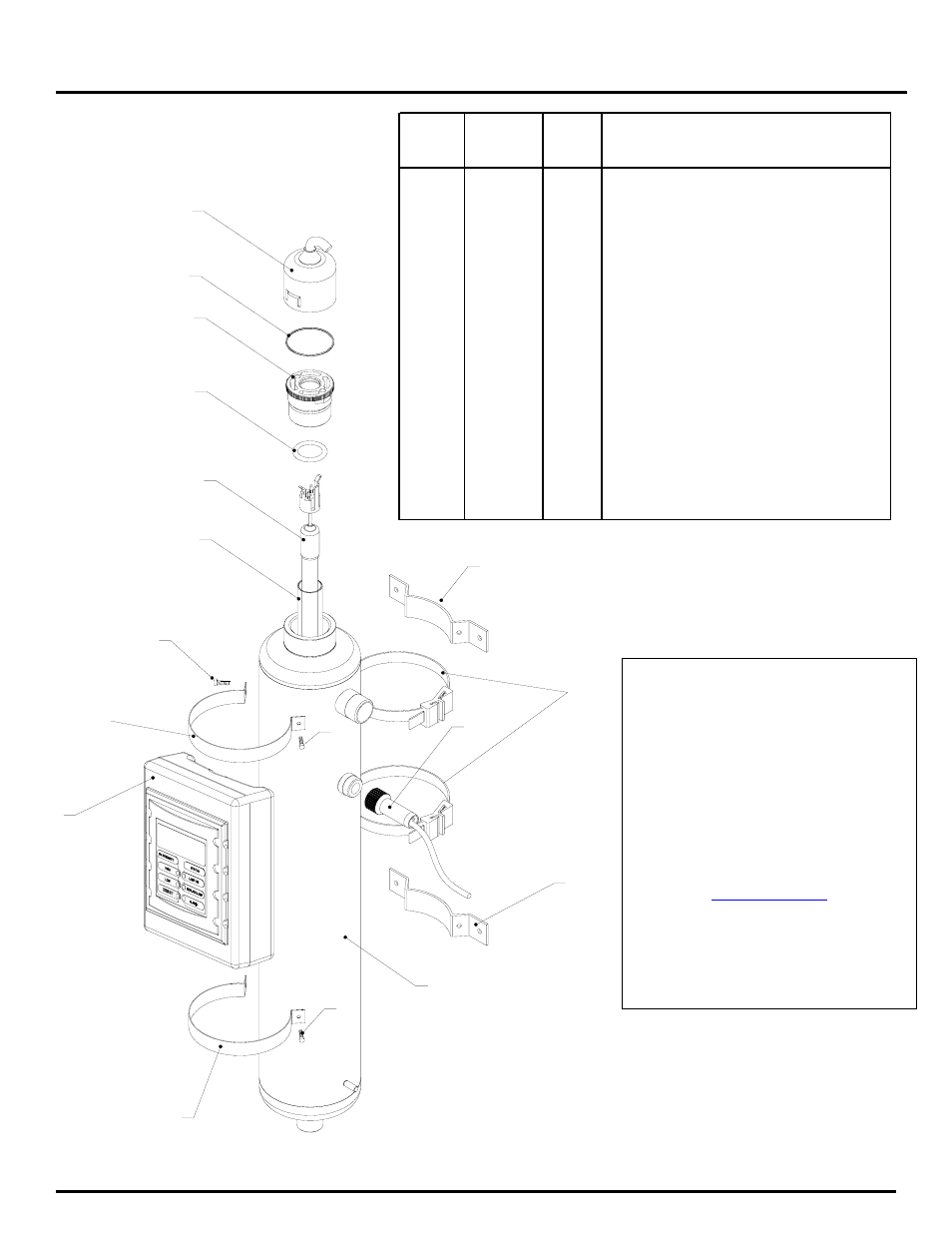

Parts List
8
7
6
5
4
3
13
12
1
11
10
9
2
11
13
13
12
KEY # PART # QTY. DESCRIPTION
1 * 1 Electrical Control Box
2 * 1 Disinfection Chamber
3 * 1 Quartz Sleeve
4 *** 1 Ultraviolet Lamp
5 AQ35492 1 Head Piece O-Ring
6 AQ36538 1 Head Piece
7 AQ36617 1 Glo-Cap O-Ring
8 AQ36799 1 Glo-Cap
9 AQ37250 1 Sensor Assembly
10 AQ36942 2 Electrical Control Box Strap
10A AQ36992 2 Electrical Control Box Strap Buckle
11 * 2 Wall Mount Bracket
12 * 2 Wall Mount Bracket Strap
13 * 4 Wall Mount Bracket Strap Screw
14** * 1 Flow Control
15** * 1 Solenoid Valve (OPTIONAL)
16** AQ36944 1 Power Cord
Contact the distributor for replacement parts
* Determined by serial number
** Not shown
*** Refer to data plate for part number
For replacement parts and service or
to find out who your local water
treatment distributor is contact:
WEDECO UV Technologies, Inc.
Aftermarket Services Department
14125 South Bridge Circle
South Point Business Park
Charlotte, NC 28273
Main:704-716-7600
Fax: 704-295-9080
www.wedeco.us
The warranty requires the use of
WEDECO UV Technologies, Inc.
authorized replacement parts only.
