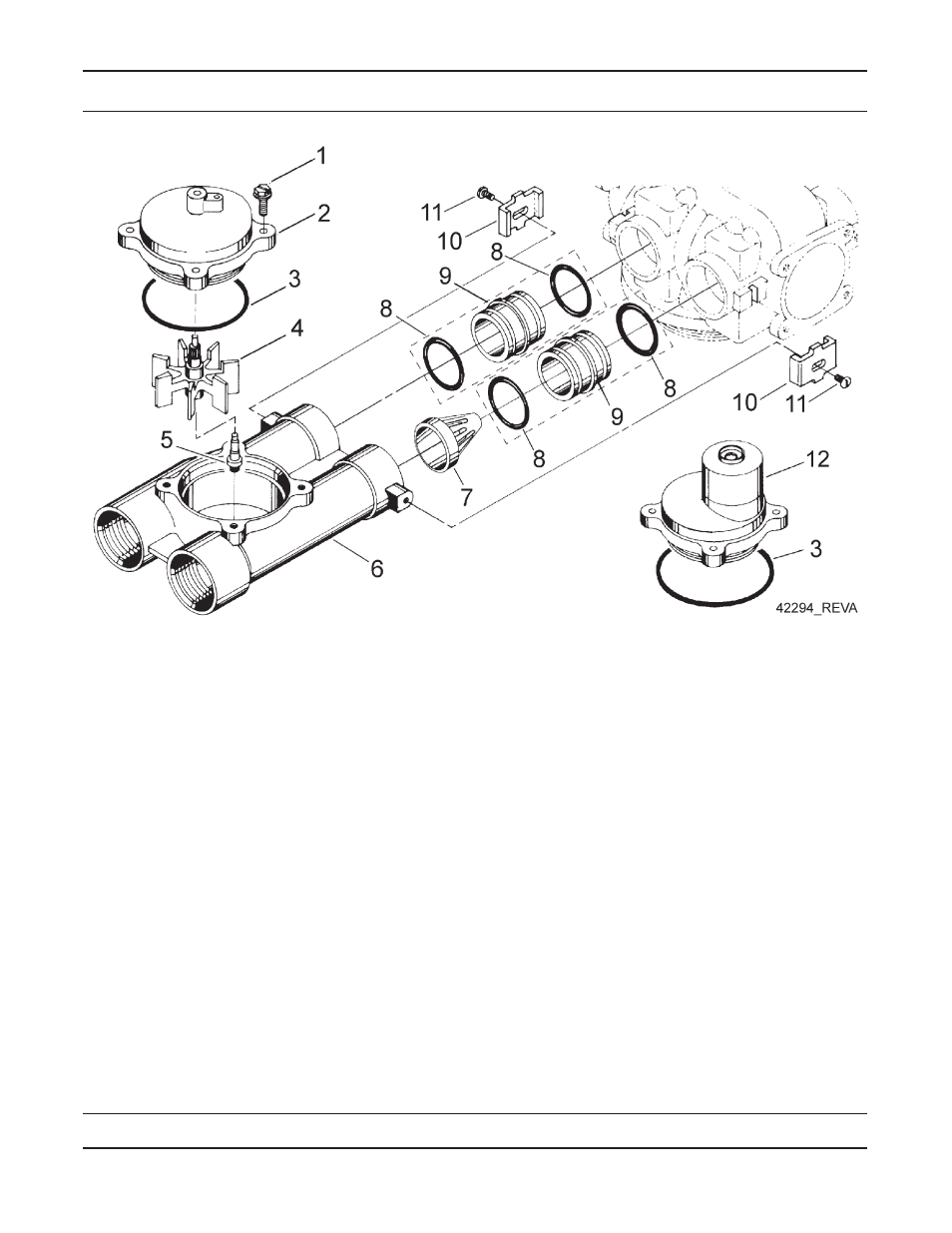

1” Meter Assembly
Item No.
Quantity
Part No.
Description
.
1.................... .4.................... 12112.......................
Screw, Hex Hd Mach 10-24 x 1/2
.
2.................... .1.................... 15218.......................
Meter Cap Assy
.
.
.
15237.......................
Meter Cap Assy, EXT
.
3.................... .1.................... 13847.......................
O-Ring, -137, STD/560CD, Meter
.
4.................... .1.................... 13509.......................
Impeller, Meter
.
.
..
13509-01..................
Impeller, Celcon
.
5.................... .1.................... 13882.......................
Post, Meter Impeller
.
6.................... .1.................... 15043.......................
Body, Meter, 9000 1”
.
7.................... .1.................... 14960.......................
Flow Straightener, 1”
.
8.................... .4.................... 13305.......................
O-Ring, -119
.
9.................... .2.................... 15078.......................
Adapter, 1” Coupling
.
10.................. .2.................... 13255.......................
Clip, Mounting
.
11.................. .2.................... 14202-01..................
Screw, Hex Wsh Mach, 8-32 x 5/16
.
12.................. 1..................... 15150.......................
Meter Cap Assy, Ext
.
.
.
15237.......................
Meter Cap Assy, Ext
For Service Assembly Numbers, See the Back of this Manual
