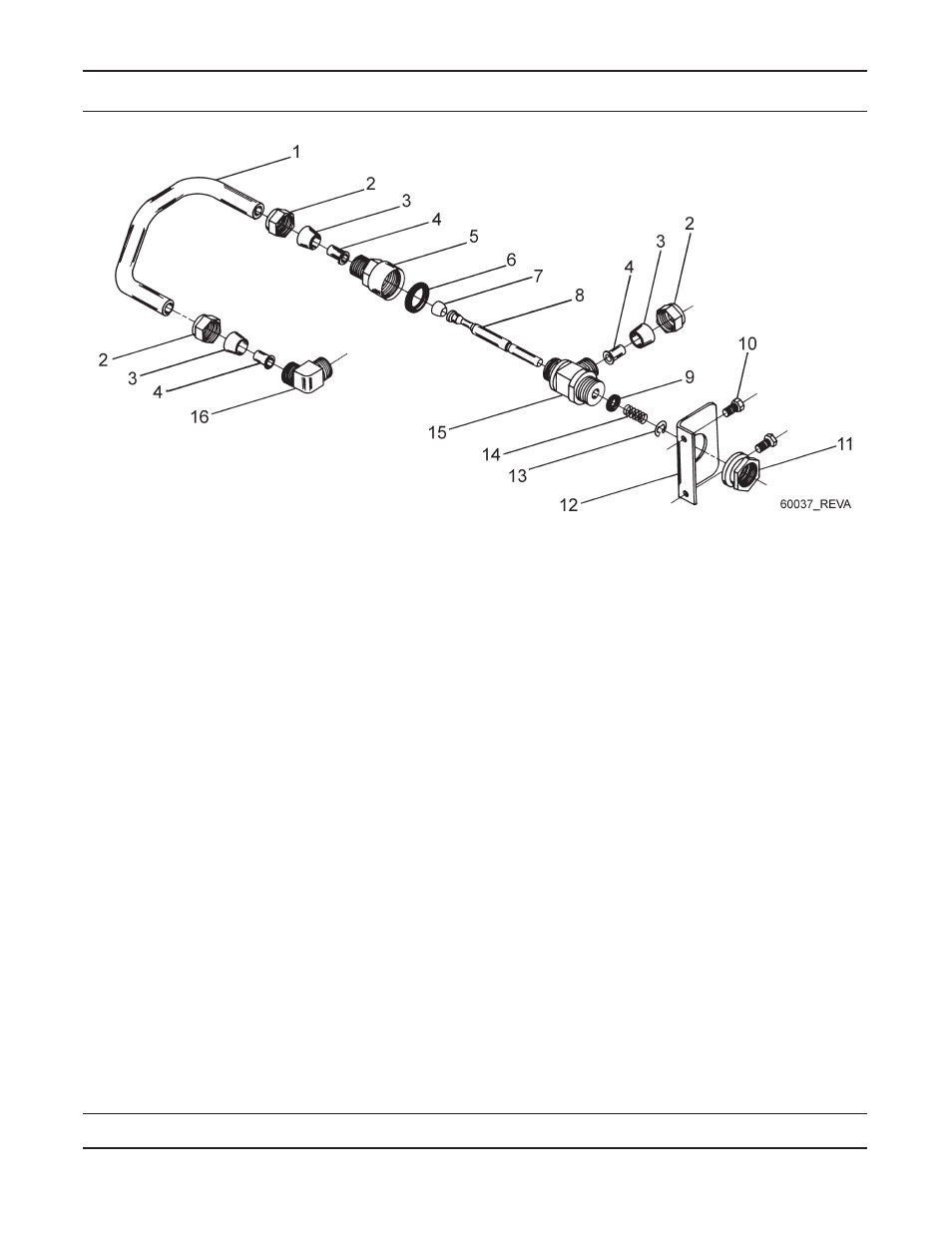

1600 Brine Valve System (for 9500)
Item No.
Quantity
Part No.
Description
.
1....................... 1.........................16960...........................
Tube, Brine Valve
.
2....................... 1.........................10329...........................
Fitting, Tube, 3/8 Nut, Brass
.
3....................... 1.........................10330...........................
Fitting, Sleeve, 3/8 Celcon
.
4....................... 1.........................10332...........................
Fitting, Insert, 3/8
.
5....................... 1.........................12747...........................
Fitting, Flow Control
.
6....................... 1.........................12550...........................
Quad Ring, -009
.
7....................... 1.........................12626...........................
Seat, Brine Valve
.
8....................... 1.........................16958...........................
Brine Valve Stem, 1600 Coated
.
9....................... 1.........................11982............................
O-ring, -016
.
10..................... 3.........................15137...........................
Screw, Hex Wsh Mach, 10-24 x 3/8
.
11..................... 3.........................10269...........................
Nut, Jam, 3/84 - 16
.
12..................... 3.........................16922...........................
Bracket, Brine Valve Mounting
.
13..................... 1.........................10250...........................
Ring, Retaining
.
14..................... 1.........................10249...........................
Spring, Brine Valve
.
15..................... 1.........................12748-01......................
Brine Valve Body, 1600
.
16..................... 2.........................10328...........................
Fitting, Elbow, 90 Deg.
