Page 4 AXIS 225FD Installation Guide

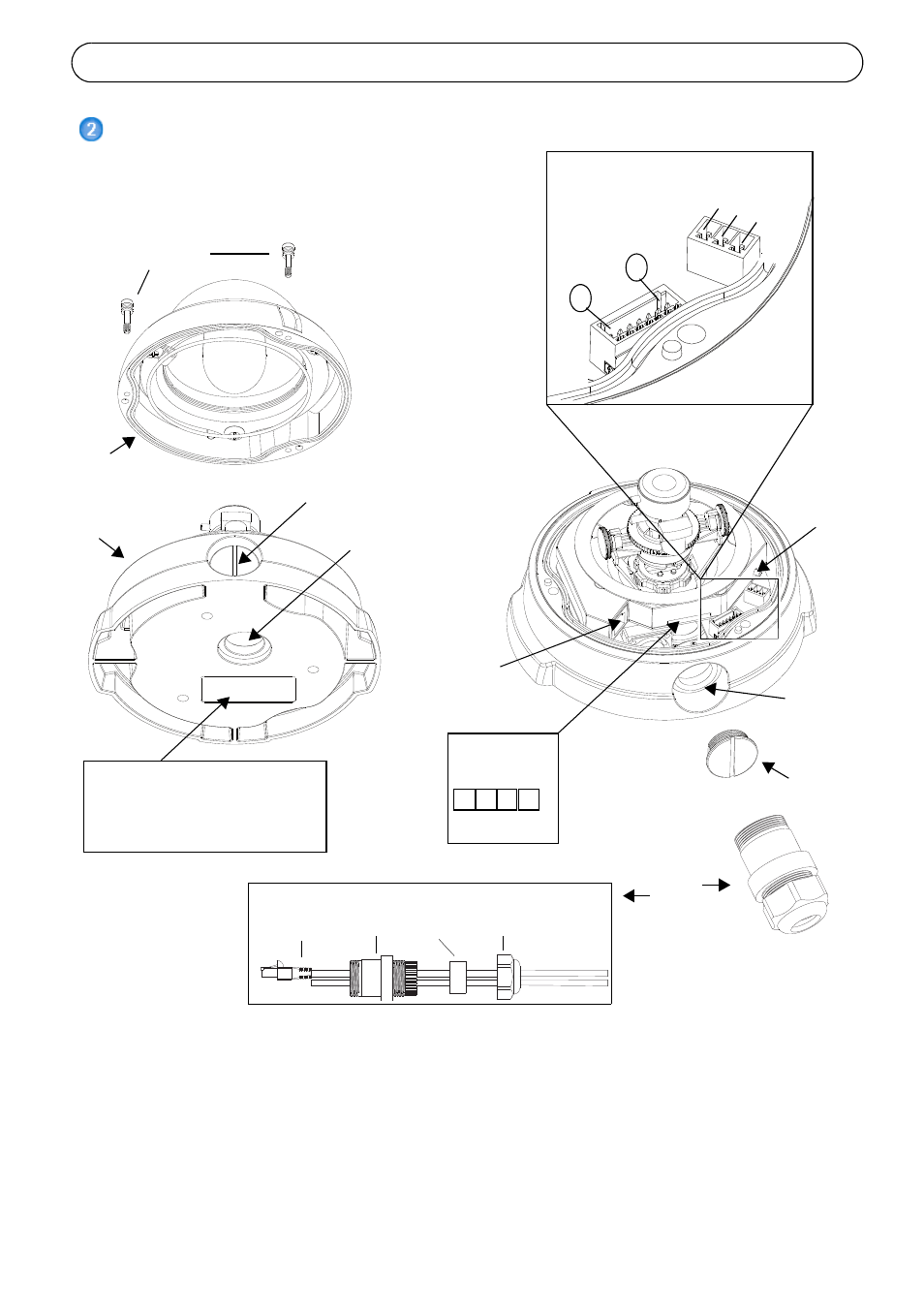

Hardware overview
Notes:
• Use cables and conduits that are suitable for the installation and that are in compliance
with the IP66 rated, outdoor-proof, vandal resistant design of the AXIS 225FD.
• Conduit dimensions: NPT 3/4" -14 (pipe thread).
Important!
If the AXIS 225FD is not mounted according to the instructions, there may be problems with
moisture which is not covered by warranty.
Conduit hole
Conduit hole
Network
connector
Serial number (S/N)
Control
Plug
LED
indicators
(see table 2)
1 2 3 4
The serial number is required
during the installation.
1
7
button
Power connector block
(see table 1)
I/O terminal
block
GN
D
+ o
r A
C
AC
(side)
(bottom)
Tamper-proof
screws
Unit casing
Dome casing
Cable
Conduit
hole
Cables
Cable
gland Outer
ring gland Rubber
plug
