Page 10 AXIS 225FD Installation Guide
Adjust the image
1. Open the Live View page in the Web interface and make the following adjustments:
2. Loosen the pan adjustment ring and tilt adjustment screws. Hold the lens while turning the
pan adjustment ring, otherwise the lens may rotate with the lock ring and damage or
disconnect the cable.
3. Turn the lens to the desired direction. Do not turn the lens more than 360° as this may
cause the internal cables to disconnect.
4. Once satisfied, gently tighten the pan adjustment ring and tilt adjustment screws to secure
the camera’s position.
5. Turn the image balance ring to set the image to the correct angle.
6. Loosen the zoom puller counterclockwise, rotate the zoom ring and determine the desired
zoom position.
Note: Due to the dome’s refraction, the image might appear slightly out of focus once the dome has
been placed. To compensate, focus on an object slightly closer than the intended area.

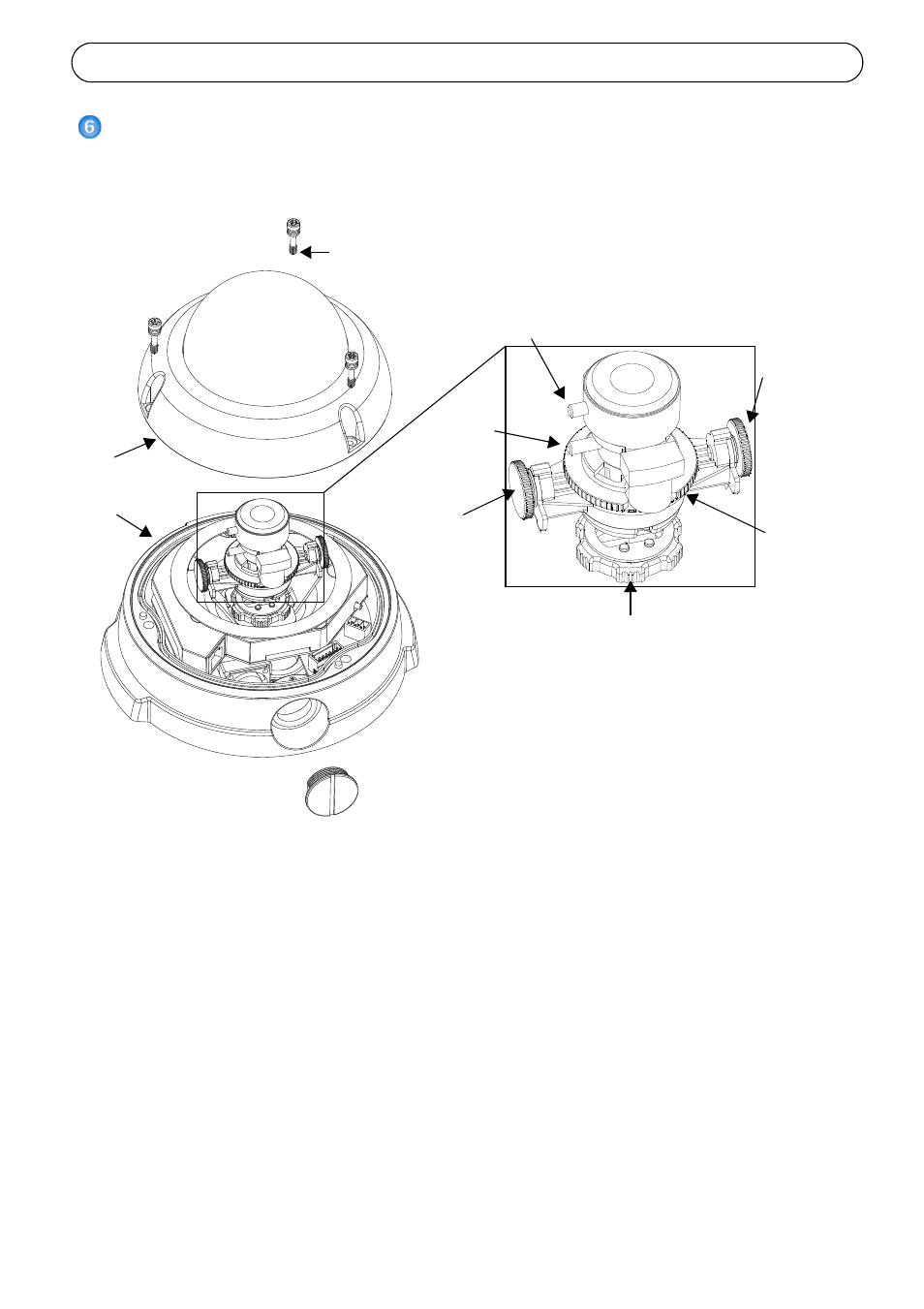

Pan adjustment ring
Zoom
Focus puller
Tilt
screw
3 tamper-proof
screws
Unit casing
Dome casing
balance
ring
adjustment
Tilt
screw
adjustment
puller
