High Density LSX 288-Position Panel
Outside Plant Controlled Environment Active Cabinet Solution
O r d e r i n g I n f o r m a t i o n
Description Dimensions (H x W x D) Catalog Number
288-Termination or Termination/Splice
Distribution Panel 279 mm x 584 mm x 305/381 mm
(11" x 23" x 12/15")
Refer to previous pages for
catalog numbers
FMT Bulk Storage Drawer 44 mm x 584 mm x 305 mm
(1.75" x 23" x 12")
FMT-DBS000000-A00P 2

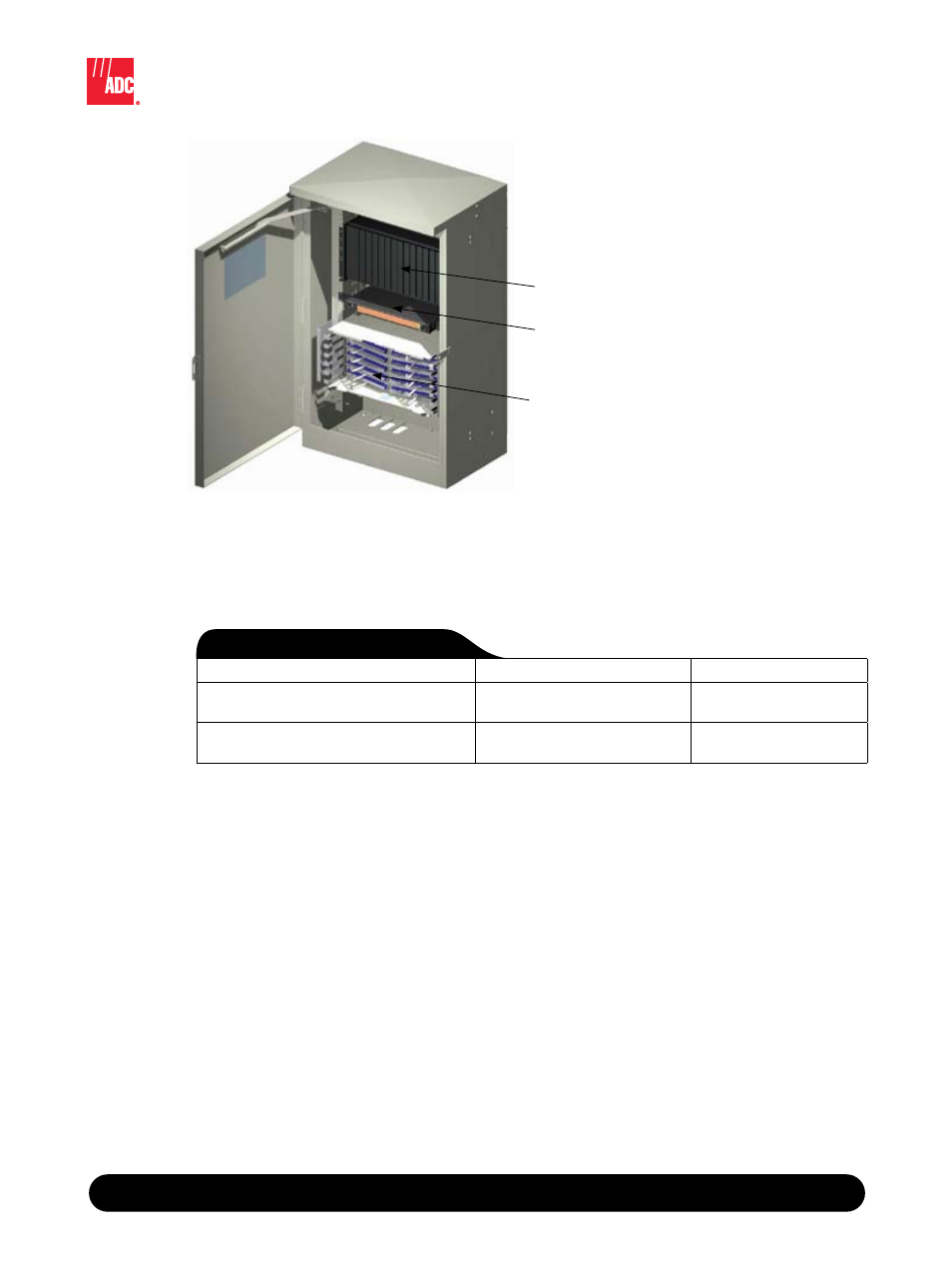

ADC’s LSX-288 panels are also well suited to a controlled environment cabinet where limited rack space
and high termination counts are necessary. Used in conjunction with ADC’s Fiber Management Tray and
RiserGuide
1 on-demand cable management, this solution can meet both the termination demands, and
cable management requirement for a future-proofed network.
1 For more information on RiserGuide on-demand cable management, see ADC literature #101573AE.
2 For more information on Fiber Management Trays (FMTs), see ADC literature #103743AE.
Fiber management
Tray (FmT)
active shelf
(not included)
LSX 288-panel
