ADC High Density Position Panel LSX 288 - Manual (Page 5)

8/08
•
106370AE
High
Density
LSX
288
–
Position
Panel
5 w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1
High Density LSX 288-Position Panel

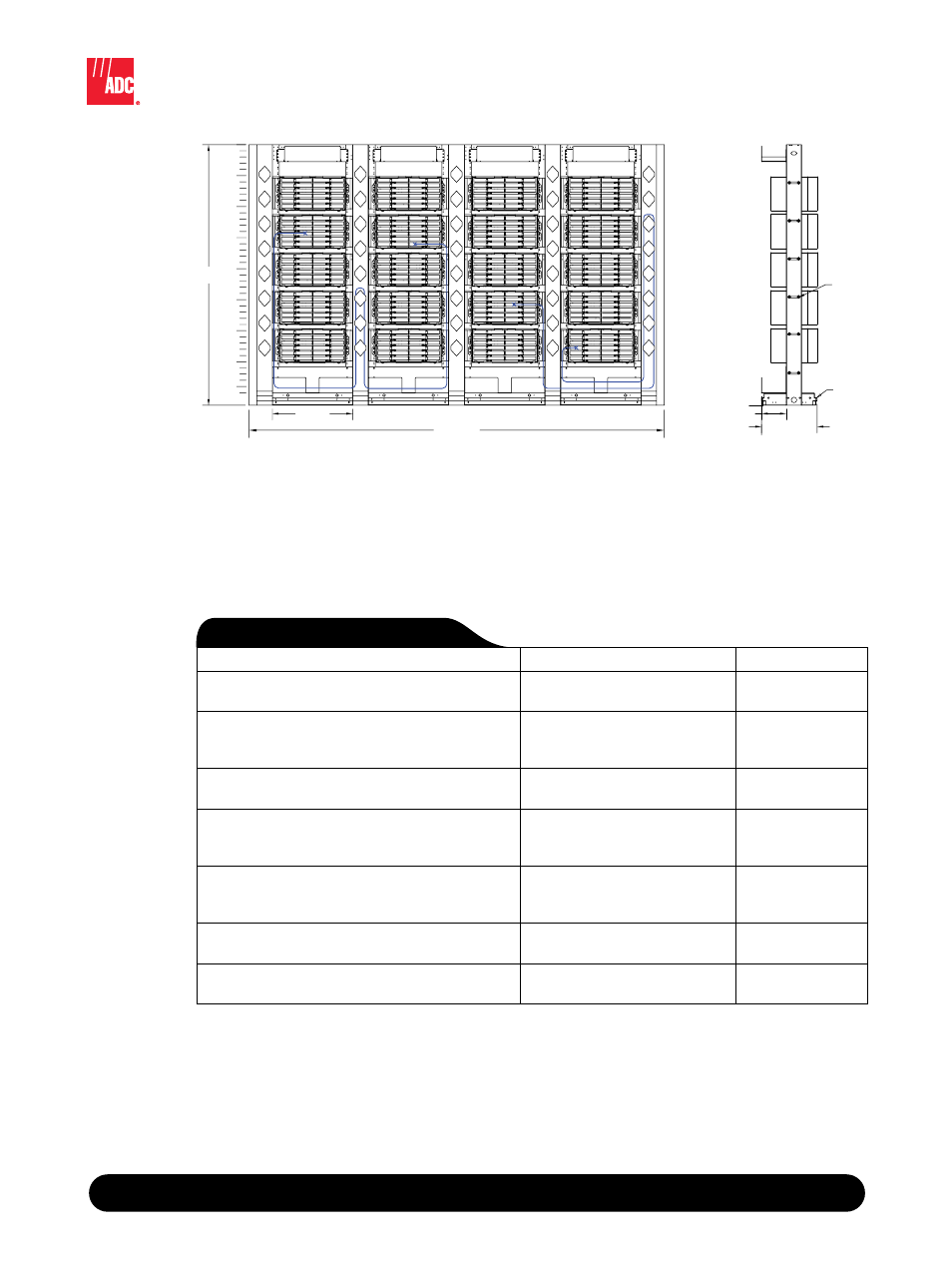

High-Density Distribution Solution (using 288-Termination/Splice panel)
aDC’s recommended fiber frame lineup uses four frames with 2 mm fiber
jumpers to maintain the industry standard 2-inch patch cord pile-up
O r d e r i n g I n f o r m a t i o n
Description Dimensions (H x W x D) Catalog Number
High-Density Frame (includes 8" deep front troughs) 2.1 m x 660 mm x 381 mm
(7' x 26" x 15")
E-501-LGX-HD
Frame Rear Guard Box
(rear 2-inch bumper should be
removed and replaced with this item) 660 mm x 127 mm
(26" x 5")
RAC-0X0439
Interbay Management Panel (includes 8" deep
troughs and spools) 2.1 m x 127 mm x 381 mm
(7' x 5" x 15")
E-501-L139-HD
Interbay Management Panel Rear Guard Box
(rear 2-inch bumper should be
removed and replaced with this item) 127 mm x 127 mm
(5" x 5")
RAC-0X0440
288-Termination/Splice Distribution Panel 279 mm x 584 mm x 381 mm
(11" x 23" x 15")
Refer to previous
pages for catalog
numbers
End Guard 2.1 m x 64 mm x 381 mm
(7' x 2.5" x 15")
RAC-7B0162
Universal End Guard Extender 2.1 m x 64 mm x 76 mm
(7' x 2.5" x 3")
E-501-12002
The termination and splice LSX-288 solution utilizes a traditional frame designed to fit a variety of
termination, splice and storage applications. This front load frame is built to ensure commonality with
patch cord routing, slack storage and fiber protection. It is shipped complete with top and bottom
troughs. Available accessories include interbay management panels (IMPs).
1
5
10
15
20
25
30
35
39
660 mm
(26")
2.1 m (7')
203 mm (8")
3.4 m (11' )
CABLE TIE
BRACKETS
457 mm (18")
5" GUARD BOX
